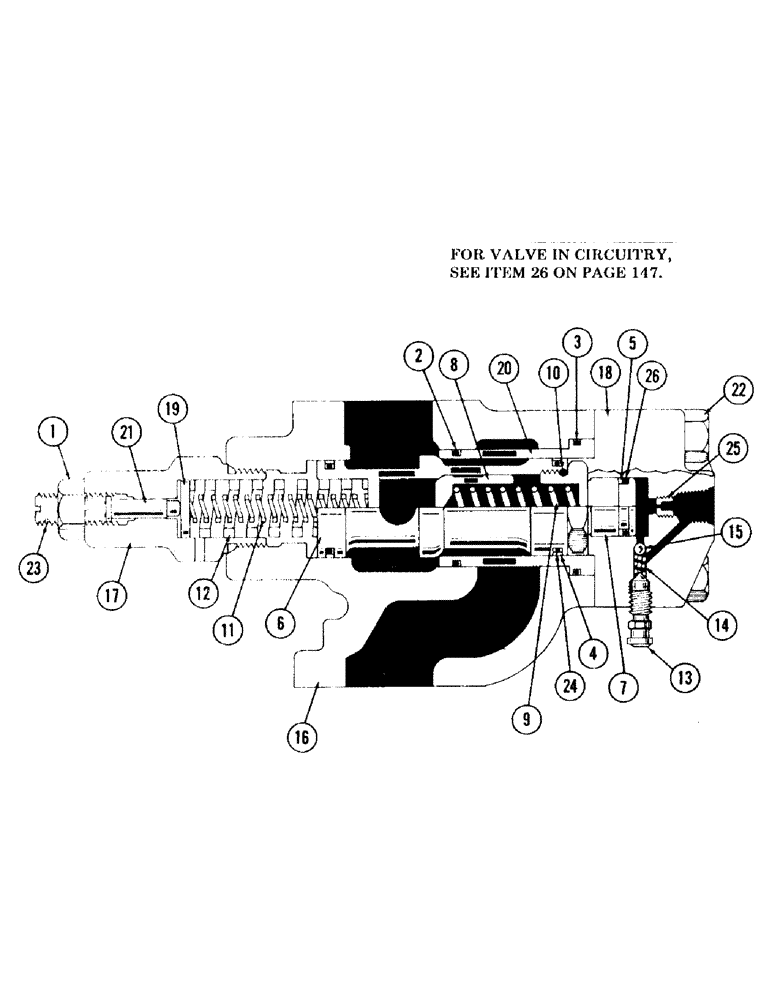

Запчасти Case 120 (267) - ANTI-DRIFT VALVE (35) - HYDRAULIC SYSTEMS

S233840

VALVE, anti-drift

3шт.

1

S4502

NUT - 1/2" NC

1шт.

2

S5726

O-RING

"O" RING - 1.799" ID x 2.000" OD

1шт.

3

S5730

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

"O" RING - 2.050" ID x 2.250" OD

1шт.

4

S112709

SEAL, slipper

2шт.

5

S112710

BACK-UP RING

RING, backup

1шт.

6

S112711

VALVE POPPET

POPPET

1шт.

7

S112712

PISTON

1шт.

8

S112713

VALVE POPPET

POPPET

1шт.

9

S112714

SPRING

1шт.

10

S6066

O-RING

"O" RING - 1.048" ID x 1.280" OD

1шт.

11

S112715

SPRING

1шт.

12

S112716

SPRING

1шт.

13

S112717

PLUG

1шт.

14

S112718

SPRING

1шт.

15

S112719

BALL

1шт.

16

S112720

BODY

1шт.

17

S112721

PLUG

1шт.

18

S112722

CAP

1шт.

19

S112723

WASHER

1шт.

20

S112724

SEAT

1шт.

21

S112725

PISTON

1шт.

22

S2098

CPSW - 1/2" NC x 2-1/4" gr 5

4шт.

23

S112708

SCREW, set - 1/2" NF x 1-1/4"

1шт.

24

S5812

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING - 1.296" ID x 1.562" OD

2шт.

25

T29684

PLUG

1шт.

26

S5710

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

"O" RING - .799" ID x 1.000" OD

1шт.
