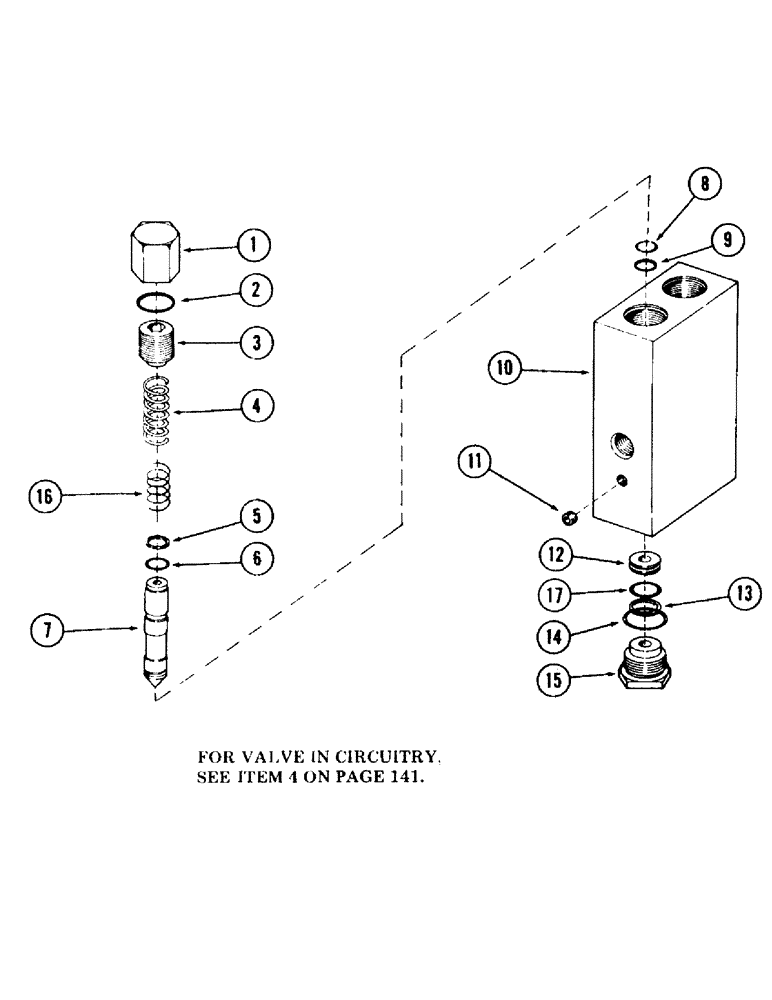

Запчасти Case 120 (255) - POWER SENSING RELIEF VALVE (35) - HYDRAULIC SYSTEMS

S509072

VALVE, power sensing relief

1шт.

1

S99874

CAP

2шт.

2

S99870

WASHER

seal

2шт.

3

S99875

SCREW

adjuster

2шт.

4

S99872

SPRING

2шт.

5

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

back-up

2шт.

6

S6144

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

"O" RING - .364" ID x .500" OD

2шт.

7

NSS

NOT SOLD SEPARAT

PISTON

2шт.

8

W13170

O-RING,0.395" ID x 0.04" Width

"O" RING

2шт.

9

S99879

RING

back-up

2шт.

10

NSS

NOT SOLD SEPARAT

BODY, valve

1шт.

11

S14045

SET SCREW

SCREW, set - 5/16" NC x 5/16"

1шт.

12

S99945

SEAT

2шт.

13

S5608

O-RING

"O" RING - .551" ID x .687" OD

2шт.

14

S6063

RING

"O" RING - .755" ID X .949" OD

2шт.

15

S99876

CONNECTOR, ELEC

CONNECTOR, reducing

2шт.

16

S107871

SPRING

compression

2шт.

17

L30012

RING

back-up

2шт.

18

S107816

SEAL ASSY.

KIT, seal and "O" ring - (Includes items 2, 5, 6, 8, 9, 13, 14, and 17)

1шт.
