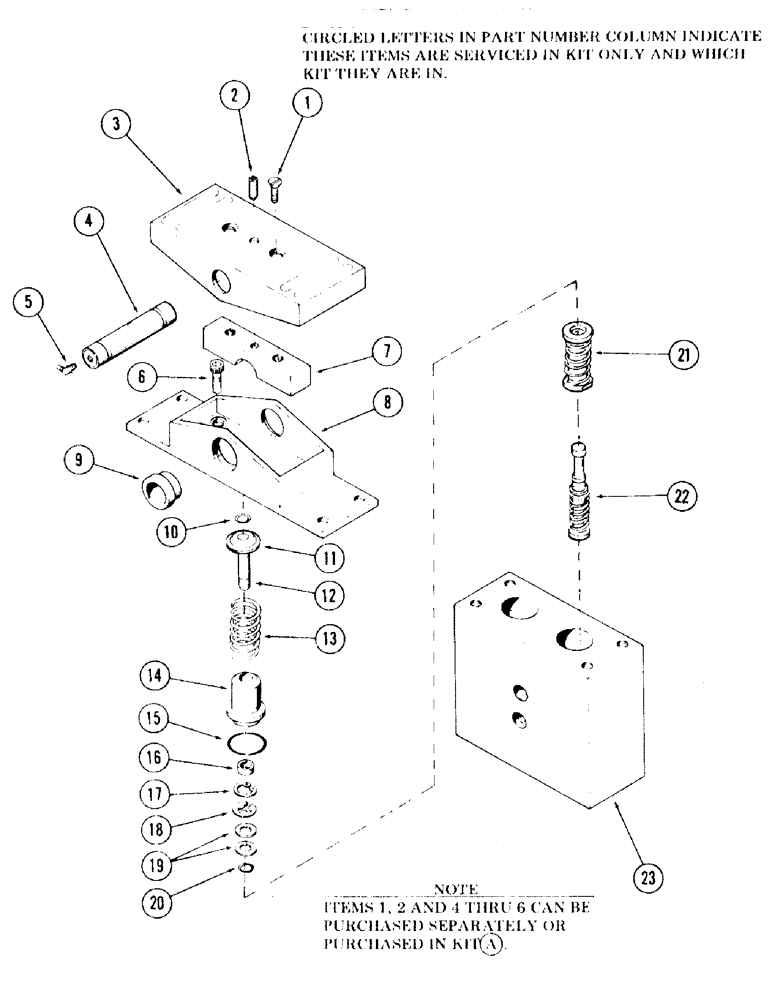

Запчасти Case 120 (253) - MODULATOR FOOT CONTROL VALVE, USED ON UNITS WITH SERIAL NO. 6287229 AND AFTER (35) - HYDRAULIC SYSTEMS

S511382

VALVE

modulator foot control

4шт.

1

S110963

SCREW

2шт.

2

S110964

SCREW

1шт.

3

ACTUATOR

1шт.

4

S110966

PIN

1шт.

5

S110967

FITTING, grease

1шт.

6

S109848

SCREW

4шт.

7

BRACKET

1шт.

8

PLATE, mounting

1шт.

9

BUSHING

2шт.

10

RING, snap

4шт.

11

GUIDE, spring

2шт.

12

PIN

2шт.

13

SPRING

2шт.

14

BUSHING

2шт.

15

"O" RING

2шт.

16

SEAL

2шт.

17

RING, snap

2шт.

18

RING, snap

2шт.

19

S109856

SHIM,0.2mm Thk

(10 x 6 x 0.5mm) 0.2mm Thk

1шт.

20

RING, snap

2шт.

21

S233891

SHOCK ABSORBER

SPRING ASSEMBLY

2шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - (Order complete valve)

2шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - (Order complete valve)

1шт.

S233957

KIT, actuator assembly - (Includes items 1 thru 9), kit replacement only

1шт.

S233953

KIT, pin assembly - (Includes items 10 thru 12), kit replacement only

1шт.

S233954

KIT

pin and spring assembly - (Includes items 10 thru 18 and 21), kit replacement only

1шт.

S234035

SEAL

KIT, seal - (Includes items 15 thru 18 and 21), kit replacement only

1шт.
