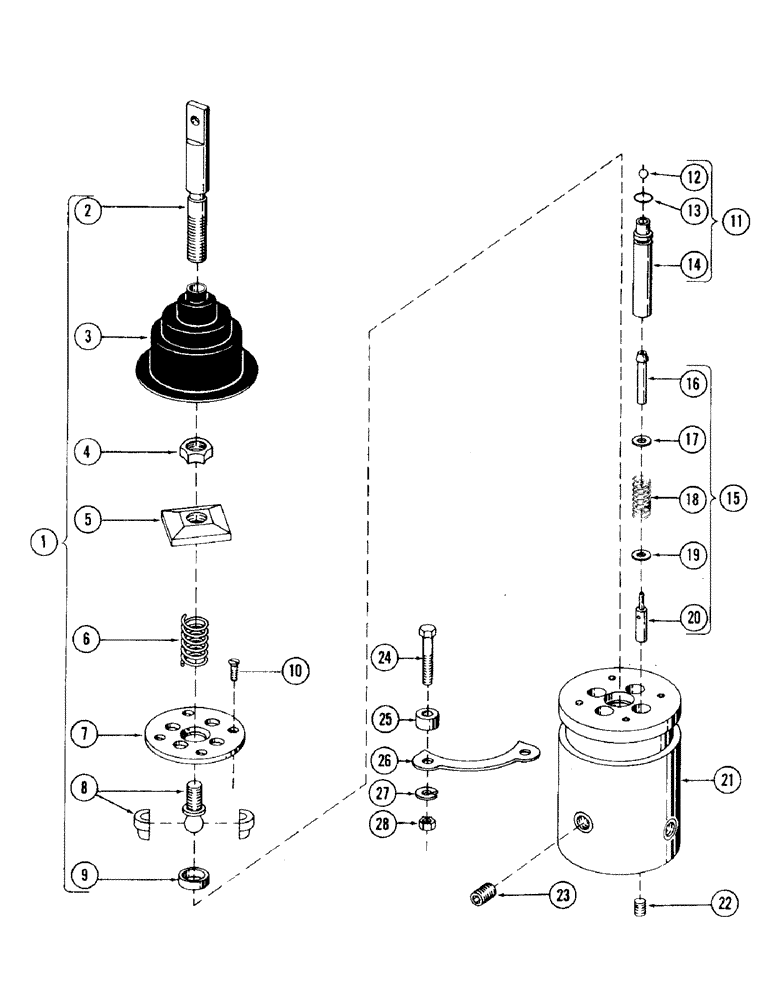

Запчасти Case 120 (251) - MODULATOR FOOT CONTROL VALVE, USED ON UNITS WITH SERIAL NO. 65521 THRU 6287228 (35) - HYDRAULIC SYSTEMS

S607662

VALVE, foot modulator control

2шт.

1

S82596

HANDLE ASSEMBLY

1шт.

2

S101451

HANDLE

1шт.

3

S69754

BOOT

1шт.

4

S70267

NUT, jam

1шт.

5

S101444

CAM

1шт.

6

S101445

SPRING

1шт.

7

S69980

PLATE, retainer

1шт.

8

S101446

BALLJOINT ASSEMBLY

1шт.

9

S101447

SLEEVE

1шт.

10

S70245

SCREW

4шт.

11

S82591

GUIDE

CAM FOLLOWER ASSEMBLY

4шт.

12

S70434

BALL

steel

1шт.

13

S6475

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING - .424 " ID x .625" OD

1шт.

14

S69979

PISTON

1шт.

15

S101448

SPOOL ASSEMBLY

4шт.

16

S70152

END, spool

1шт.

17

S70150

WASHER

1шт.

18

S101449

SPRING

1шт.

19

S70153

WASHER

1шт.

20

S70154

SPOOL

1шт.

21

S70155

HOUSING

1шт.

22

S101452

PLUG

2шт.

23

S70514

PLUG

6шт.

24

S2378

BOLT

CPSW - 5/16" NC x 1-1/2" gr 5 - (Mounts valve)

4шт.

25

S99209

SPACER

4шт.

26

S226134

CLAMP

2шт.

27

S4396

WASHER, LOCK

- 5/16"

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC

4шт.
