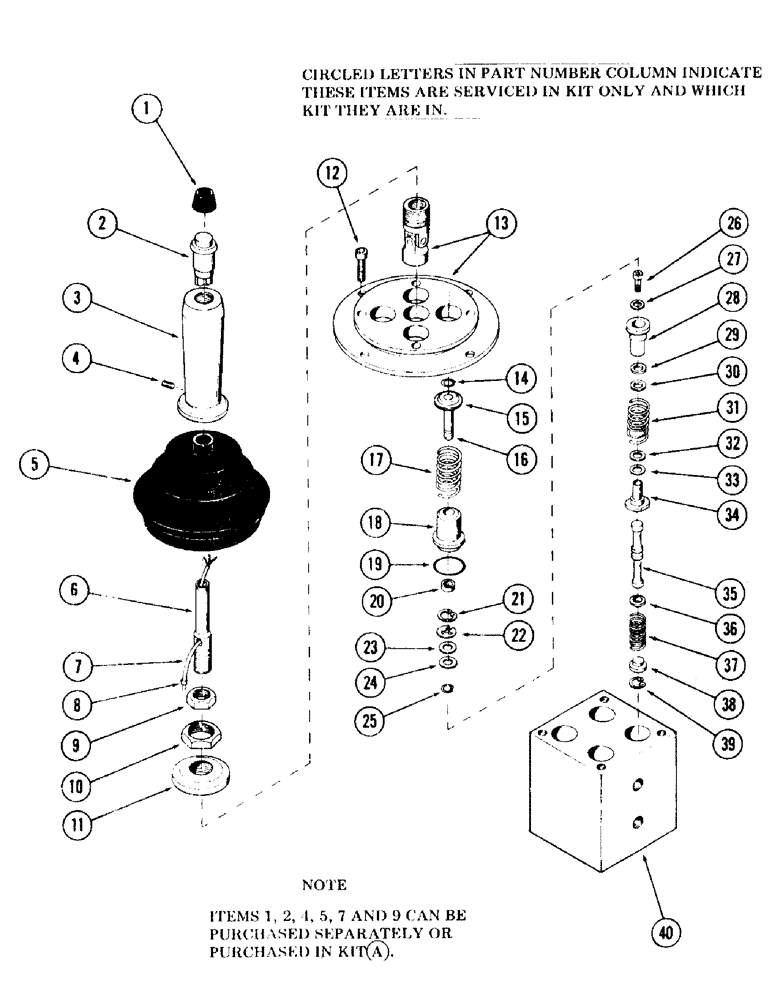

Запчасти Case 120 (249) - MODULATOR HAND CONTROL VALVE (35) - HYDRAULIC SYSTEMS

S511383

VALVE

modulator hand control

2шт.

1

S110958

CAP

1шт.

2

S109871

SWITCH

1шт.

3

HANDLE

1шт.

4

S109873

SCREW

1шт.

5

S109870

BELLOWS

1шт.

6

LEVER

1шт.

7

S232996

CABLE

1шт.

8

S110960

CLIP

2шт.

9

S109875

NUT

1шт.

10

S109850

NUT

1шт.

11

S109849

DISC

1шт.

12

S109848

SCREW

4шт.

13

S232995

PLATE

mounting

1шт.

14

RING, snap

4шт.

15

GUIDE, spring

4шт.

16

PIN

4шт.

17

C

HYDRAULIC OIL FILTER

SPRING

4шт.

18

C

HYDRAULIC OIL FILTER

BUSHING

4шт.

19

"O" RING

4шт.

20

SEAL

4шт.

21

RING, snap

4шт.

22

RING, snap

4шт.

23

S109856

SHIM,0.2mm Thk

1шт.

24

S109857

SHIM,0.5mm Thk

1шт.

25

RING, snap

4шт.

26

SCREW

4шт.

27

WASHER

4шт.

28

BUSHING

4шт.

29

SHIM

1шт.

30

SHIM

1шт.

31

SPRING

4шт.

32

SHIM

1шт.

33

SHIM

1шт.

34

GUIDE

4шт.

35

NSS

NOT SOLD SEPARAT

SPOOL

4шт.

36

GUIDE

4шт.

37

SRPING

4шт.

38

GUIDE

4шт.

39

RING, snap

4шт.

40

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

S233956

KIT, handle assembly - (Includes items 1 thru 7 and 9), kit replacement only

1шт.

S233953

KIT, pin assembly - (Includes items 14 thru 16), kit replacement only

1шт.

S233954

KIT

pin and spring assembly - (Includes items 14 thru 22 and 25), kit replacement only

1шт.

S234035

SEAL

KIT, seal - (Includes items 19 thru 22 and 25), kit replacement only

1шт.

S233891

SHOCK ABSORBER

KIT, spring assembly - (Includes items 26 thru 34), kit replacement only

1шт.

S233955

SPRING KIT

KIT, spring - (Includes items 36 thru 39), kit replacement only

1шт.
