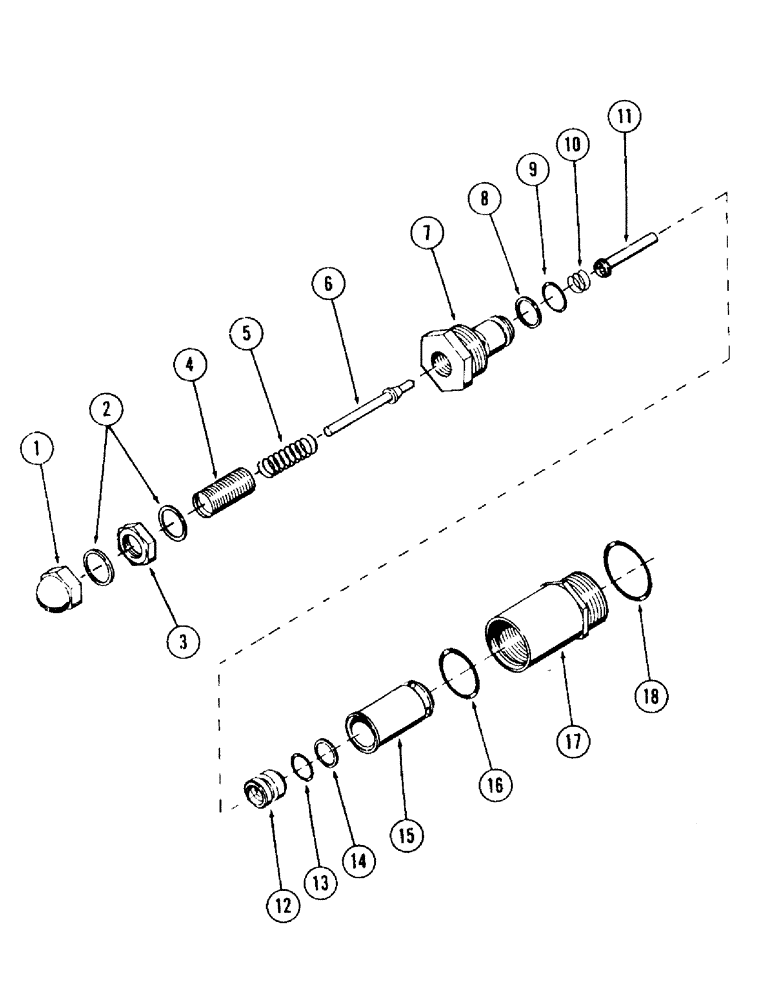

Запчасти Case 120 (247) - RELIEF AND CHECK VALVE, USED WITH COUNTERWEIGHT REMOVAL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

S111863

VALVE, relief and check

1шт.

1

S62363

NUT

acorn

1шт.

2

S62365

WASHER

2шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam

1шт.

4

S111888

SCREW, adjusting

1шт.

5

S111887

SPRING

1шт.

6

S111886

POPPET

1шт.

7

S111892

PLUG

1шт.

8

S111889

RING, backup

1шт.

9

S107729

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING

1шт.

10

S111896

SPRING

1шт.

11

S111895

PISTON

1шт.

12

S111891

POPPET

1шт.

13

S111885

"O" RING

1шт.

14

S111890

RING, backup

1шт.

15

S111893

POPPET

1шт.

16

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING, - 1.171" ID x 1.403" OD

1шт.

17

S111894

CAP

1шт.

18

S90243

O-RING

"O" RING

1шт.
