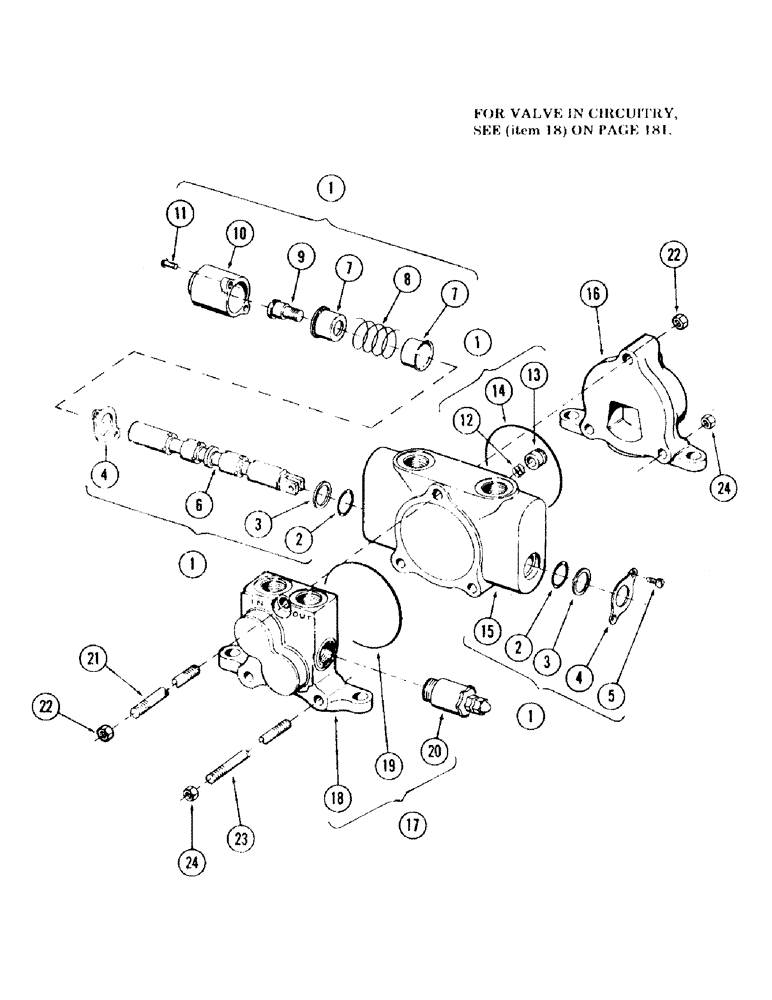

Запчасти Case 120 (245) - COUNTERWEIGHT REMOVAL CONTROL VALVE, USED ON UNITS WITH SERIAL NO. 6287229 AND AFTER (35) - HYDRAULIC SYSTEMS

S511357

VALVE, counterweight removal

1шт.

1

S234400

PLUNGER SECTION

1шт.

2

S79253

"O" RING

2шт.

3

S111870

OIL SCRAPER RING

RING, wiper

2шт.

4

S111865

PLATE

seal

2шт.

5

S48063

machine

2шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

7

S111866

SEAT

spring

2шт.

8

S111867

SPRING

1шт.

9

S111868

SCREW

1шт.

10

S111869

CAP

plunger

1шт.

11

S3489

SCREW, machine

2шт.

12

S111871

SPRING

1шт.

13

S111864

VALVE POPPET

POPPET

1шт.

14

S6318

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

16

S234401

OUTLET

SECTION

1шт.

17

S234399

INLET SECTION

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

19

S6318

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

20

REF

INSTRUCTION

VALVE, relief and check - (For breakdown, see Figure 247)

1шт.

21

S111873

ROD

tie

1шт.

22

S105545

NUT

2шт.

23

S111872

ROD

tie

2шт.

24

S112277

NUT

4шт.
