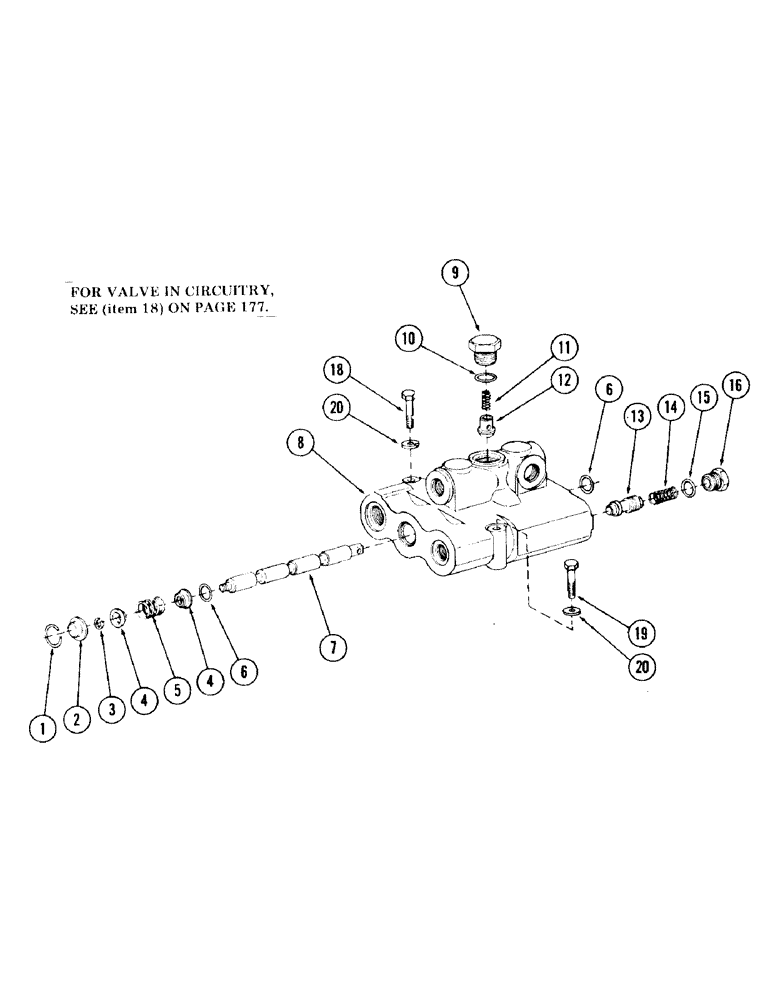

Запчасти Case 120 (243) - COUNTERWEIGHT REMOVAL CONTROL VALVE, USED ON UNITS WITH SERIAL NO. 65521 THRU 6287228 (35) - HYDRAULIC SYSTEMS

S507768

VALVE

counterweight removal control

1шт.

1

S78695

RING

retaining

1шт.

2

S78690

CAP

end

1шт.

3

S76400

RING, retainer

1шт.

4

S78199

RETAINER

spring

2шт.

5

S78316

SPRING

1шт.

6

S62069

"O" RING, spool

2шт.

7

S78689

SPOOL

1шт.

8

S78696

BODY

1шт.

9

S78691

PLUG

1шт.

10

H743302

O-RING,0.76" ID

"O" RING

1шт.

11

S78688

SPRING

1шт.

12

S78692

POPPET

1шт.

13

S73532

VALVE

CONTROL VALVE SUB-ASSEMBLY - (Includes the following six not illustrated items)

1шт.

L30518

SHIM

- (Not illustrated)

1шт.

L30519

SHIM

- (Not illustrated)

1шт.

L30520

SPRING

compression - (Not illustrated)

1шт.

L30524

VALVE

PLUG - (Not illustrated)

1шт.

L30525

SHIM

- (Not illustrated)

1шт.

L30526

PISTON

PLUNGER, valve - (Not illustrated)

1шт.

14

W11821

SPRING

1шт.

15

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

16

S8981

PLUG

- 3/4" NPT - (Includes item 15)

1шт.

17

S78197

BALL - (Not illustrated)

1шт.

18

S2382

BOLT

- 5/16" NC x 2-1/2" gr 5

2шт.

19

S2381

BOLT

- 5/16" NC x 2-1/4" gr 5

1шт.

20

S4396

WASHER, LOCK

- 5/16"

3шт.

21

S101375

KIT, "O" ring - (Includes items 6, 10, and 15)

1шт.
