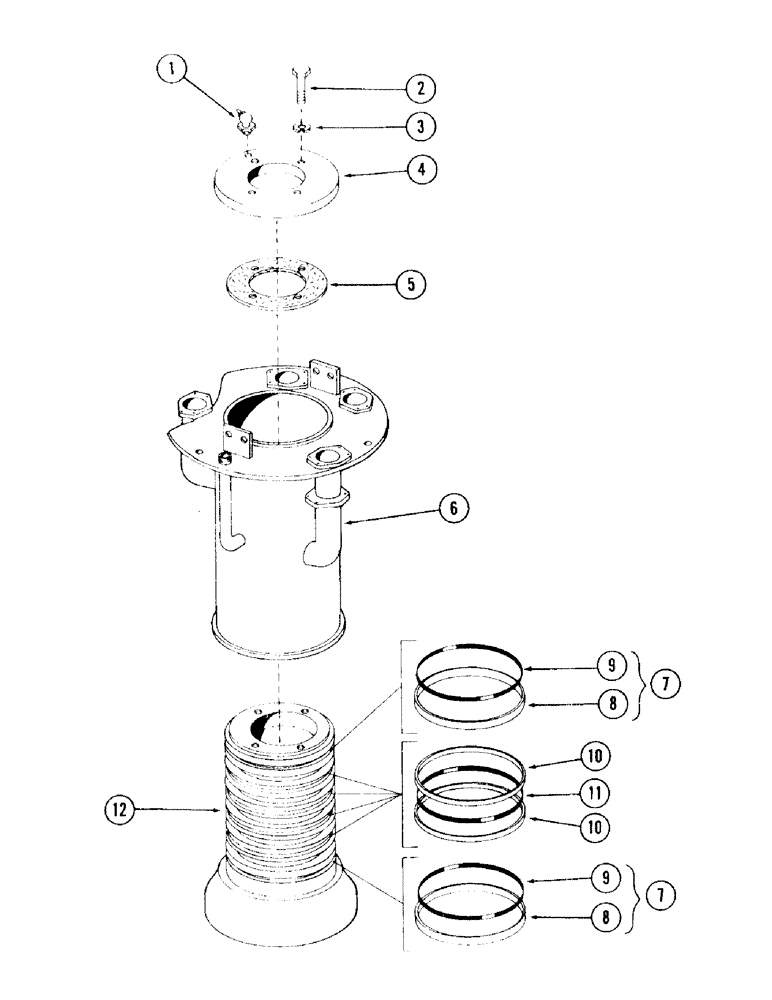

Запчасти Case 120 (239) - 5-PORT HYDRAULIC SWIVEL (35) - HYDRAULIC SYSTEMS

S605332

SWIVEL, 5-port hydraulic

1шт.

1

S49793

FITTING

grease - 1/4" NPT x 65 degrees

1шт.

2

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

4шт.

3

S4399

WASHER

lock - 1/2"

4шт.

4

S50779

CAP, bearing

1шт.

5

S223569

GASKET

1шт.

6

S605333

HOUSING, swivel

1шт.

7

S109712

RING

SEAL ASSEMBLY - (Supersedes S87080 and S87083)

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL, slipper

2шт.

9

NSS

NOT SOLD SEPARAT

LOADER, square

2шт.

10

S109713

BACK-UP RING

RING, back up - (Supersedes S96061)

8шт.

11

S109711

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

"O" RING - (Supersedes S87081)

4шт.

12

S953608

SHAFT

1шт.

13

S107037

KIT, seal - (For IOWA swivel) - (Dynamic Seal Co. Kit No. K-100, includes (6) teflon rings No. TFE-R24A, (6) load rings No. TFE-R24B and (6) back-up rings No. TFE-R24C)

1шт.
