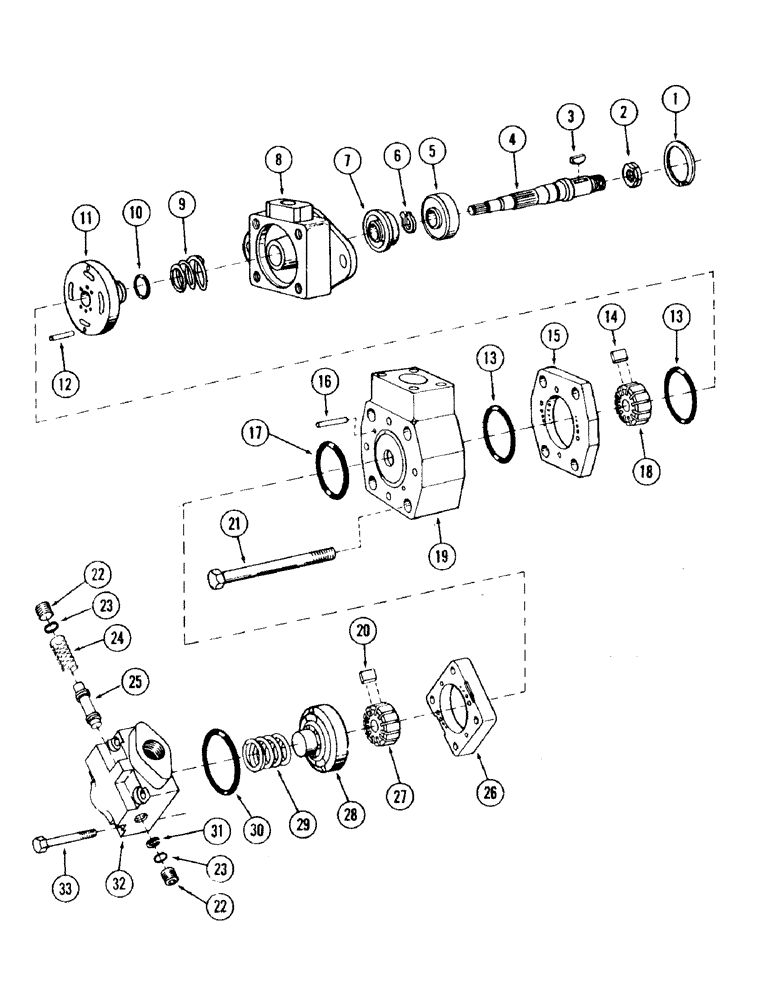

Запчасти Case 120 (237) - TANDEM HYDRAULIC PUMP, USED FOR PILOT CONTROL SYSTEM AND COUNTERWEIGHT (35) - HYDRAULIC SYSTEMS

S507767

PUMP, Tandem hydraulic

1шт.

1

A31078

SNAP RING,2.062", Int, #206

1шт.

2

S98091

NUT

1шт.

3

S98092

KEY

1шт.

4

S98093

SHAFT

1шт.

5

S98094

BEARING

1шт.

6

S98095

RING, snap

1шт.

7

H204255

SEAL

shaft

1шт.

8

S98097

BODY

1шт.

9

S98098

SPRING

1шт.

10

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING

1шт.

11

S98099

PLATE, pressure

1шт.

12

S98100

PIN

2шт.

13

S11125

"O" RING

2шт.

14

S98101

KIT - (12 vanes)

1шт.

15

S98103

RING

1шт.

16

S98105

PIN

2шт.

17

S98106

O-RING

"O" RING

1шт.

18

S98102

ROTOR

1шт.

19

S98104

BODY

1шт.

20

S98090

KIT

- (12 vanes)

1шт.

21

S62584

CPSW

4шт.

22

S8981

PLUG

- (1/2" tube) - 3/4" - 16 male

2шт.

23

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

2шт.

24

D46216

SPRING

1шт.

25

S108128

VALVE, relief - (Supersedes S98112)

1шт.

26

S98107

RING

1шт.

27

S98096

ROTOR

1шт.

28

S98110

PLATE, pressure

1шт.

29

F37849

SPRING

1шт.

30

S98108

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

"O" RING

1шт.

31

F37851

RING, SNAP

1шт.

32

S98111

COVER

1шт.

33

S98109

CPSW - 5/16" NF x 2-1/2" gr 8

4шт.

34

S98113

KIT, cartridge - (Includes items 13, 14 and 18)

1шт.

35

S98114

KIT, seal - (Includes items 7, 10, 13, 17 and 30)

1шт.
