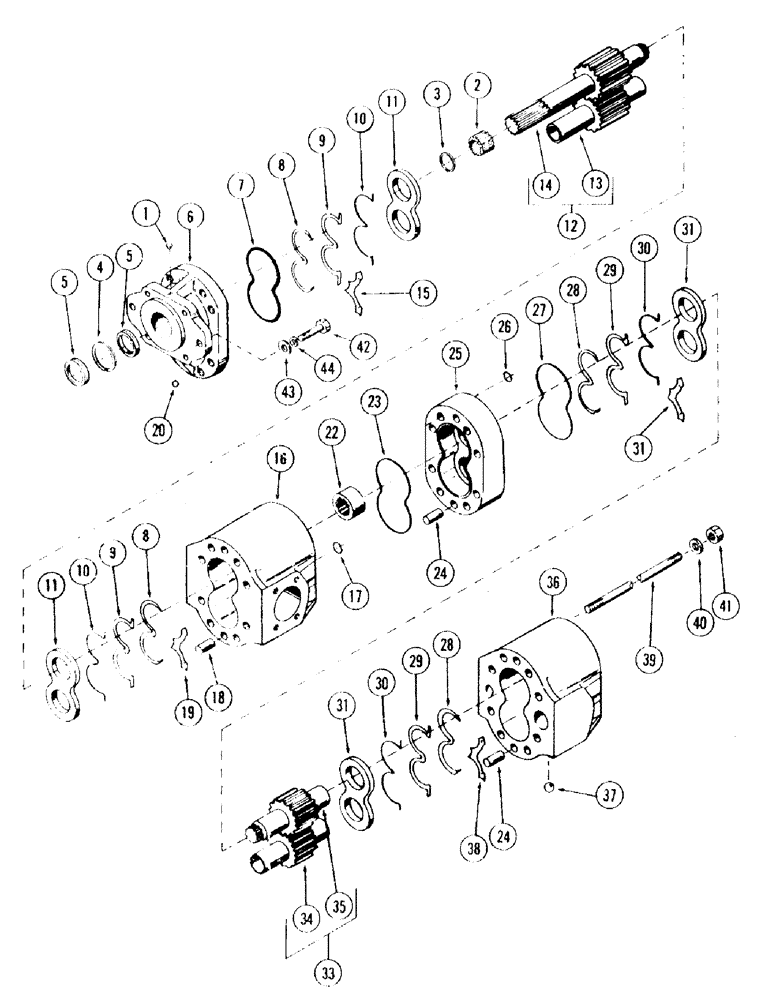

Запчасти Case 120 (235) - MAIN HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
S612061
PUMP, main hydraulic
2шт.
S234413
PUMP
SECTION, front
1шт.
1
S108846
PLUG
1шт.
2
S112368
COUPLING
splined
1шт.
3
S112369
RING, LOCKING
RING, snap
1шт.
4
S110888
SPACER
1шт.
5
D41418
SEAL
2шт.
6
S112363
FLANGE
1шт.
S109040
BUSHING
- (Not illustrated)
2шт.
7
S98712
O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro
"O" RING
1шт.
8
S108490
OIL SEAL
RING, retainer
4шт.
9
S112366
RING, backup
2шт.
10
S108891
SEAL
"O" RING
2шт.
11
S108489
PLATE, pressure
2шт.
12
S112364
KIT, front drive gear
1шт.
13
NSS
NOT SOLD SEPARAT
GEAR, idler - (Front)
1шт.
14
NSS
NOT SOLD SEPARAT
GEAR, drive - (Front)
1шт.
15
S108894
PLATE
isolation - (Top)
1шт.
16
S112360
BODY, front section
1шт.
S109040
BUSHING
- (Not illustrated)
2шт.
17
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
"O" RING
8шт.
18
D41414
PIN
DOWEL
2шт.
19
S108893
PLATE
isolation - (Bottom)
1шт.
20
S13031
BALL
- (1/4" diameter)
1шт.
21
S97044
PLUG
1шт.
S234414
PUMP
SECTION, rear
1шт.
22
S108895
COUPLING
splined
1шт.
23
S98713
O-RING
"O" RING
1шт.
24
D41414
PIN
DOWEL
4шт.
25
S112362
PLATE, bearing
1шт.
S109040
BUSHING
- (Not illustrated)
2шт.
26
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
"O" RING
8шт.
27
S98713
O-RING
"O" RING
1шт.
28
S108490
OIL SEAL
RING, retainer
2шт.
29
S112366
RING, backup
2шт.
30
S108891
SEAL
"O" RING
2шт.
31
S108489
PLATE, pressure
2шт.
32
S108894
PLATE
isolation - (Top)
1шт.
33
S112365
KIT
rear drive gear
1шт.
34
NSS
NOT SOLD SEPARAT
GEAR, idler - (Rear)
1шт.
35
NSS
NOT SOLD SEPARAT
GEAR, drive - (Rear)
1шт.
36
S112361
BODY, rear section
1шт.
37
S13031
BALL
- (1/4" diameter)
1шт.
38
S108893
PLATE
isolation - (Bottom)
1шт.
39
S112367
STUD
8шт.
40
S98714
WASHER
flat - 5/8"
8шт.
41
86637932
JAM NUT,Jam, 5/8"-18, G5
NUT - 5/8" NF
8шт.
42
S2467
BOLT
CPSW - 1/2" NC x 1-1/2" gr 5 - (Mounts, Serial Range: pump-engine)
4шт.
43
S39046
WASHER, flat - 1/2"
4шт.
44
S4399
WASHER
lock - 1/2"
4шт.
45
S112372
KIT, seal - (Includes items 4, 5 and 7)
1шт.
Выбрано товаров: 51
