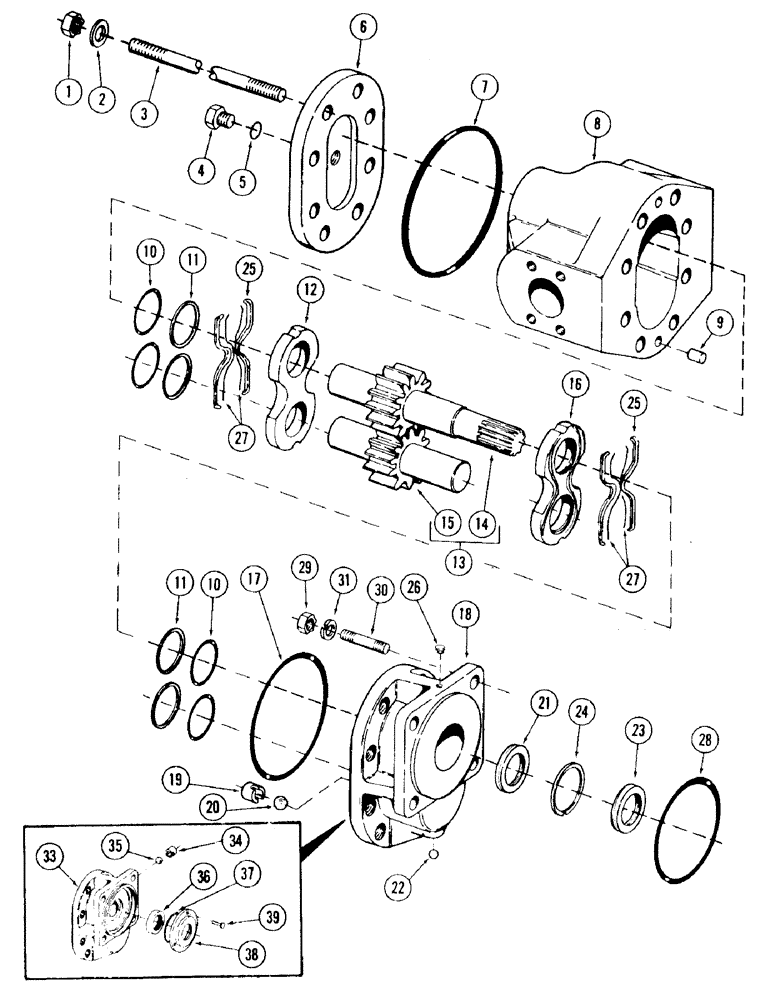

Запчасти Case 120 (233) - SWING MOTOR (35) - HYDRAULIC SYSTEMS

S611542

MOTOR, swing - (Supersedes S606360)

2шт.

1

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" NF

8шт.

2

S98714

WASHER

flat

8шт.

3

S104898

STUD

8шт.

4

S98777

PLUG, drain

1шт.

5

S98778

"O" RING, drain plug

1шт.

6

S112373

PLATE

cover

1шт.

7

S104897

O-RING,0.139" Thk x 3.859" ID, -241, Cl 6, 90 Duro

"O" RING

1шт.

8

S104893

BODY

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

9

D41414

PIN

DOWEL

2шт.

10

S98707

O-RING,1.739" ID x 1.879" OD x 0.07"

"O" RING

4шт.

11

S98706

RING, back-up

4шт.

12

S109033

PLATE, pressure - (Top)

1шт.

13

S107637

GEAR SET

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR, drive

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR, idler

1шт.

16

S109039

PLATE, pressure - (Bottom)

1шт.

17

S98712

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING, body

1шт.

18

S112371

FLANGE

1шт.

S109040

BUSHING

(Not illustrated)

2шт.

19

S98641

RETAINER

check valve

2шт.

20

S17763

BALL

- (1/2 inch diameter)

2шт.

21

S98779

SEAL

1шт.

22

S13031

BALL

- (1/4 inch diameter)

1шт.

23

S111613

SEAL

1шт.

24

S111610

RING, SNAP

1шт.

25

S109041

STRIP, sealings

4шт.

26

S108886

PLUG

1шт.

27

S109042

"O" RING

4шт.

28

S5752

O-RING,4.987" ID x 5.193" OD x 0.103"

"O" RING - 4.98 inch ID x 5.187 inch OD

1шт.

29

S17169

INSTRUCTION

NUT, self locking - 1/2 inch NC

4шт.

30

S64966

STUD - (Mounts motor to swing brake)

4шт.

31

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

flat

4шт.

32

S112375

KIT, seal, (Includes items 17, 21, 23 and 24)

1шт.

33

S104895

FLANGE

used on some earlier units

1шт.

34

S98776

RETAINER

check valve, used on some earlier units

2шт.

35

S74801

BALL - 9/16" diameter, used on some earlier units

2шт.

36

S98779

SEAL, used on some earlier units

1шт.

37

S5633

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

"O" RING, seal plate, (Supersedes S98710), used on some earlier units

1шт.

38

S98711

PLATE, seal, used on some earlier units

1шт.

39

S98780

CPSW, seal plate, 1/4inch NC x 5/8 inch, gr 8, used on some earlier units

3шт.
