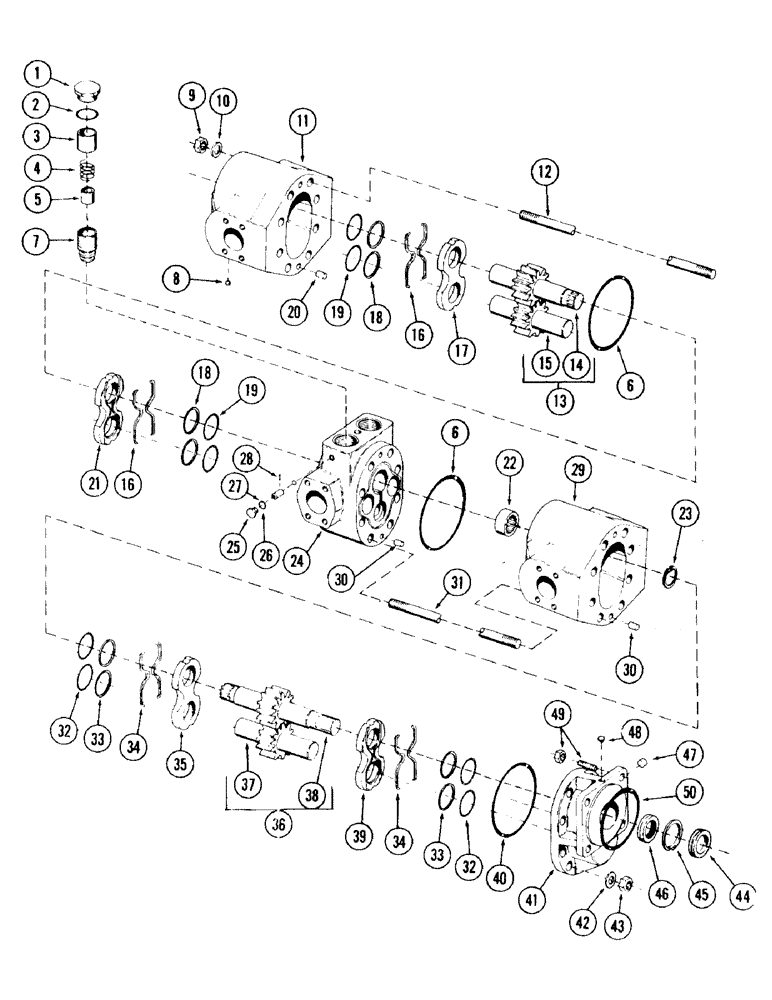

Запчасти Case 120 (229) - TRACK DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

S611543

MOTOR, track drive - (Supersedes S605978 and S610864)

2шт.

S109048

MOTOR

SECTION, rear

1шт.

1

S98723

PLUG

2шт.

2

S98719

O-RING

"O" RING

2шт.

3

S62517

SPACER

2шт.

4

S98718

SPRING

2шт.

5

S98717

SPACER

2шт.

6

S98713

O-RING

"O" RING

2шт.

7

S109075

PISTON

2шт.

8

S13031

BALL

- (1/4" diameter)

3шт.

9

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" NF

8шт.

10

S98714

WASHER

flat

8шт.

11

S62513

BODY

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

12

S109044

STUD, rear

8шт.

13

S109046

KIT, rear gear

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR, drive - (Rear)

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR, idler - (Rear)

1шт.

16

S109041

STRIP, sealing

4шт.

17

S109039

PLATE, pressure - (Bottom)

1шт.

18

S98706

RING, back up

4шт.

19

S98707

O-RING,1.739" ID x 1.879" OD x 0.07"

"O" RING

4шт.

20

D41414

PIN

DOWEL

2шт.

21

S109033

PLATE, pressure - (Top)

1шт.

22

S98708

COUPLING, splined

1шт.

23

S7550

RING, SNAP

1шт.

24

S98698

BODY, valve

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

25

S98649

PLUG

2шт.

26

S98647

"O" RING

2шт.

27

S98720

SEAT

2шт.

28

S5258

PIN, roll - 3/32" x 7/16" long

2шт.

S112404

MOTOR

SECTION, front

1шт.

29

S62512

BODY

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

30

D41414

PIN

DOWEL

4шт.

31

S109043

STUD, front

8шт.

32

S98707

O-RING,1.739" ID x 1.879" OD x 0.07"

"O" RING

4шт.

33

S98706

RING, back up

4шт.

34

S109041

STRIP, sealing

4шт.

35

S109039

PLATE, pressure - (Bottom)

1шт.

36

S109045

KIT, front gear

1шт.

37

NSS

NOT SOLD SEPARAT

GEAR, idler - (Front)

1шт.

38

NSS

NOT SOLD SEPARAT

GEAR, drive - (Front)

1шт.

39

S109033

PLATE, pressure - (Top)

1шт.

40

S111611

O-RING

"O" RING, flange

1шт.

41

S111613

FLANGE - (If flange is replaced (2) plugs S97044 (Item 47) must be ordered in addition)

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

42

S98714

WASHER

flat

8шт.

43

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" NF

8шт.

44

S111613

SEAL, outer

1шт.

45

S111610

RING, SNAP

1шт.

46

S98709

SEAL

inner

1шт.

47

S97044

PLUG

2шт.

48

S108886

PLUG

1шт.

49

S97328

STUD, motor mounting

4шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

50

S5752

O-RING,4.987" ID x 5.193" OD x 0.103"

"O" RING - 4.987" ID x 5.187" OD

1шт.

51

S112402

KIT, seal - (Includes items 40, 41, 45 and 46)

1шт.
