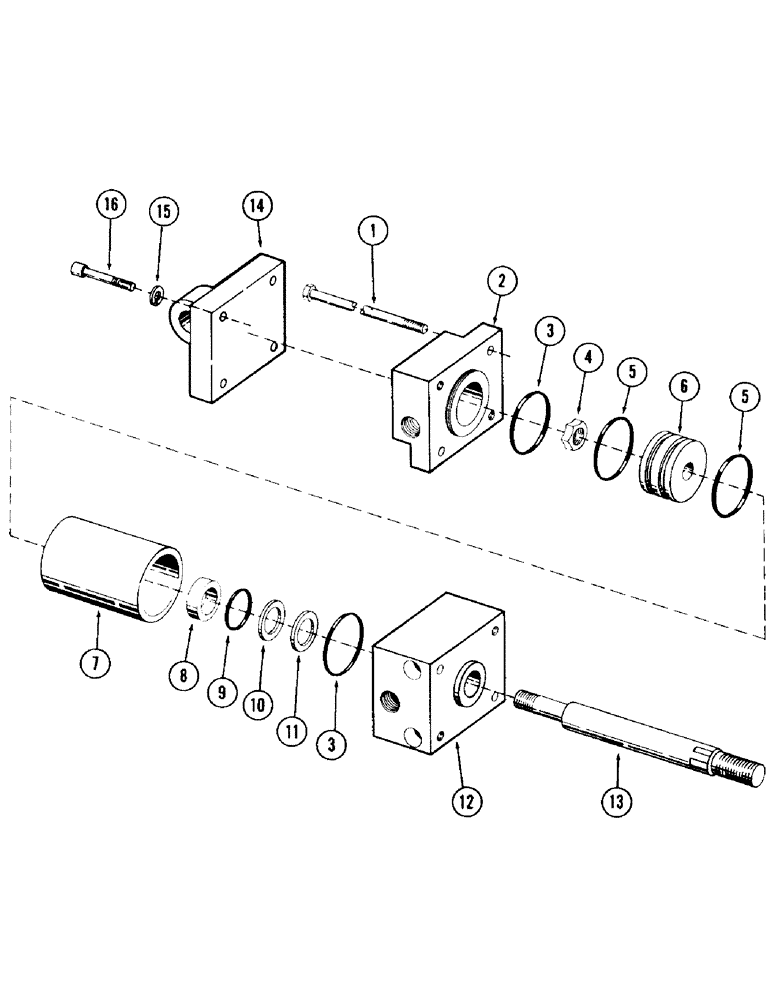

Запчасти Case 120 (219) - HYDRAULIC CLUTCH CYLINDER (35) - HYDRAULIC SYSTEMS

S507783

CYLINDER, hydraulic clutch

1шт.

1

S97938

ROD

tie

2шт.

2

S97925

CAP

1шт.

3

S97940

SEAL, tube

2шт.

4

S97942

NUT, piston rod

1шт.

5

S97941

PACKING, piston

2шт.

6

S97935

PISTON

1шт.

7

S97937

TUBE

1шт.

8

S97939

BUSHING, rod

1шт.

9

S97943

PACKING, rod

1шт.

10

S97944

SPACER, teflon

1шт.

11

S97945

WASHER, back-up

1шт.

12

S97933

HEAD

1шт.

13

S97936

ROD, piston

1шт.

14

S101387

ADAPTER, cylinder head

1шт.

15

S7342

WASHER, LOCK

- (Internal tooth) - 1/4"

2шт.

16

S99445

CPSW, socket head - 1/4" NF x 1-1/4" gr 8

2шт.

17

S97946

KIT, service - (Includes items 3, 5, and 8 thru 11)

1шт.
