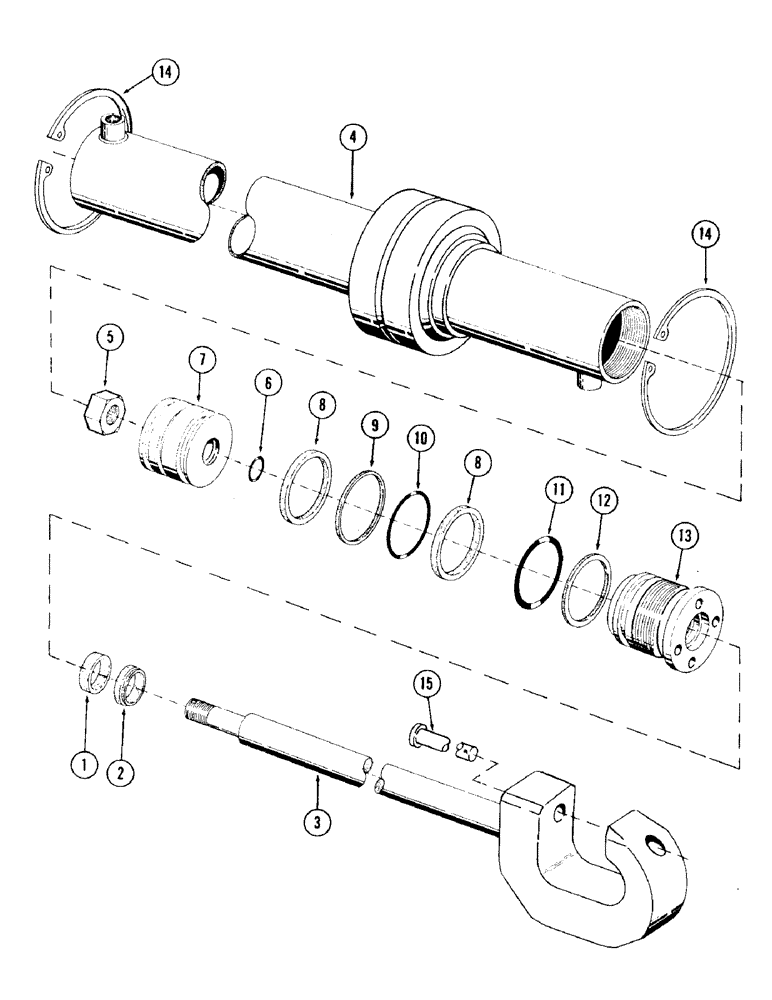

Запчасти Case 120 (217) - COUNTERWEIGHT CYLINDER, 3.50" ID X 33" STROKE, USED ON UNITS WITH SERIAL NO. 6287225 AND AFTER (35) - HYDRAULIC SYSTEMS

S610387

CYLINDER, counterweight

2шт.

1

S230768

SEAL, rod

1шт.

2

S230770

WIPER, rod

1шт.

3

S510699

ROD

cylinder

1шт.

4

S610391

CYLINDER

CASE, cylinder

1шт.

5

S107417

NUT, self locking

1шт.

6

S5713

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING

1шт.

7

S510704

PISTON

1шт.

8

S48419

RING

piston

2шт.

9

S230769

RING, seal

1шт.

10

S5744

"O" RING - 2.987" ID x 3.187" OD

1шт.

11

S6326

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING

1шт.

12

S107425

BACK-UP RING

RING, back-up

1шт.

13

S510703

GLAND

head

1шт.

14

S2035

RING, retaining -, Serial Range: (Mounts-cylinder)

2шт.

15

S10820

PIN, clevis - 1/2" x 5.766" long

1шт.
