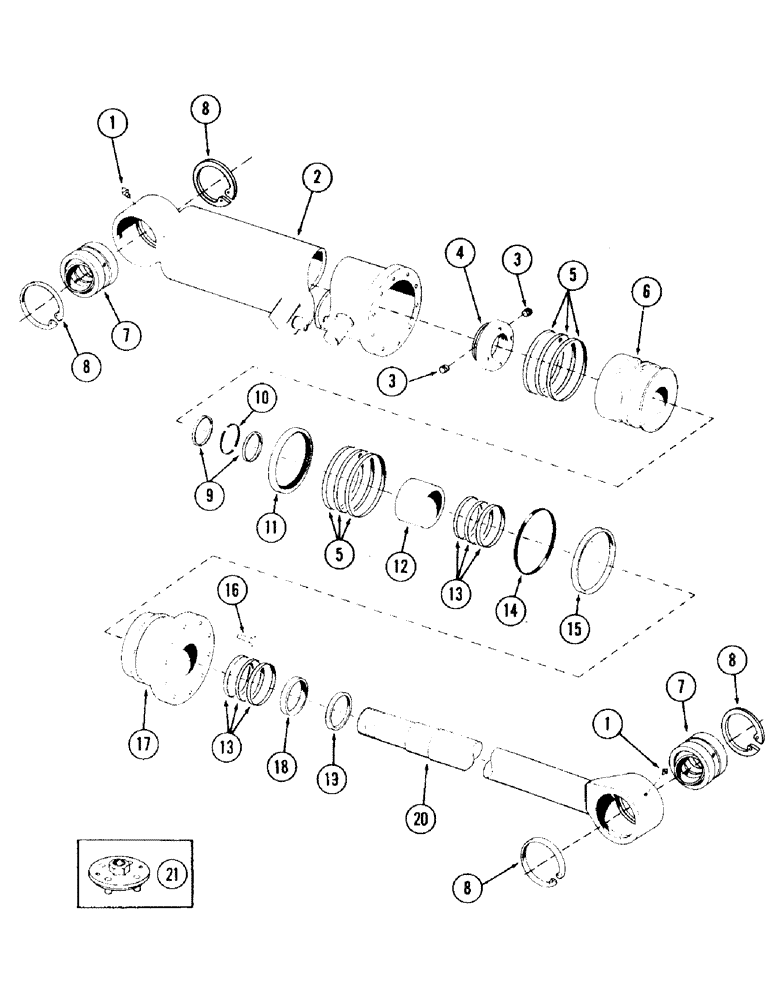

Запчасти Case 120 (213) - TOOL CYLINDER, 9" ID X 54.625" STROKE (35) - HYDRAULIC SYSTEMS

S953970

CYLINDER, tool

1шт.

1

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

2шт.

2

S606679

TUBE, cylinder 75.187" L

1шт.

3

S14303

SET SCREW

SCREW, set - 1/4" NC x 3/8"

2шт.

4

S508588

NUT, roll pin locking

1шт.

5

S99217

RING, PISTON

RING, wear

6шт.

6

S508591

PISTON

1шт.

7

S99288

BUSHING

2шт.

8

S99289

SNAP RING,5.50", Int, #550

Ring, Snap, 5.50", Int, #550

4шт.

9

S6858

WASHER

RING, back-up

2шт.

10

S6329

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

"O" RING - 3.609" ID x 3.875" OD

1шт.

11

S99281

SEAL

SEAL

1шт.

12

S99300

SPACER

1шт.

13

S99085

RING, PISTON

RING, wear

6шт.

14

S6039

O-RING

"O" RING - 8.475" ID x 9.000" OD

1шт.

15

S7158

BACK-UP RING

RING, back-up

1шт.

16

S12682

BOLT

CPSW - 1" NF x 2-1/2" gr 8

10шт.

17

S606654

HEAD

1шт.

18

S99284

SEAL

rod

1шт.

19

S99285

WIPER

1шт.

20

S508631

ROD, cylinder

1шт.

21

S228179

WRENCH, spanner

1шт.

22

S609977

SEAL,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

KIT, seal - (Includes items 5, 9, 10, 11, 13, 14, 15, 18 and 19)

1шт.
