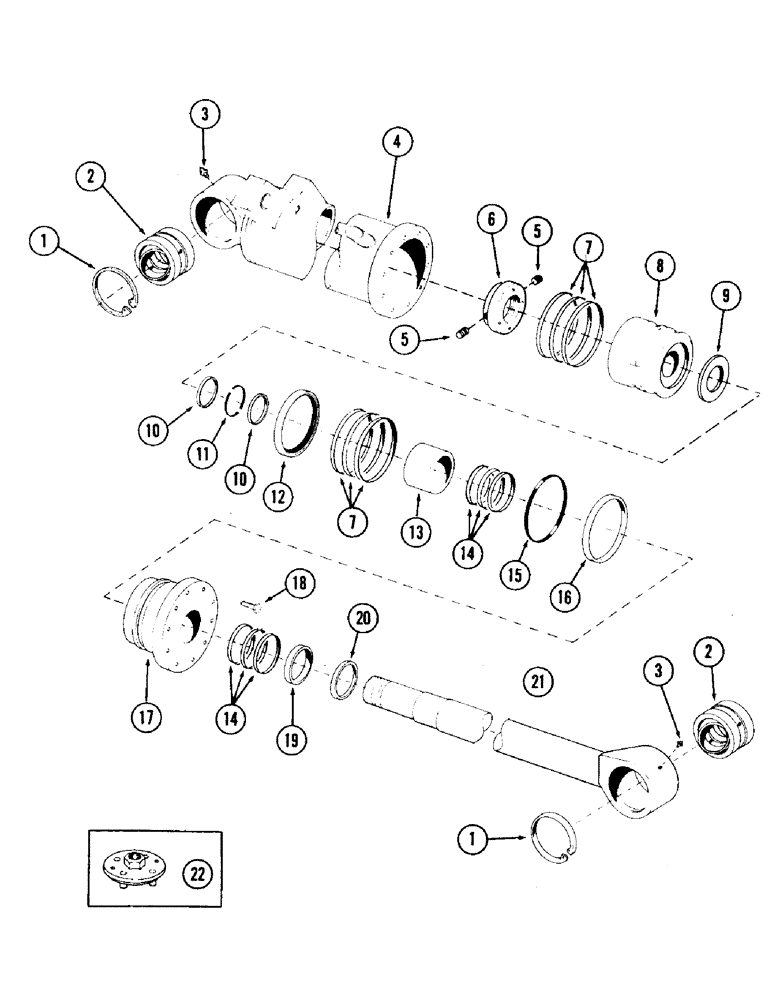

Запчасти Case 120 (211) - CROWD CYLINDER, 9 ID X 74.50" STROKE (35) - HYDRAULIC SYSTEMS

S953954

CYLINDER, crowd

1шт.

1

S2035

RING, retaining

2шт.

2

S99283

BUSHING

2шт.

3

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

2шт.

4

S606677

TUBE, cylinder

1шт.

5

S14303

SET SCREW

SCREW, set - 1/4" NC x 3/8"

2шт.

6

S508588

NUT, roll pin locking

1шт.

7

S99217

RING, PISTON

RING, wear

6шт.

8

S508591

PISTON

1шт.

9

S104007

RING, thrust

1шт.

10

S6858

WASHER

RING, back-up

2шт.

11

S6329

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

"O" RING - 3.609" ID x 3.875" OD

1шт.

12

S99281

SEAL

SEAL

1шт.

13

S99300

SPACER

1шт.

14

S99085

RING, PISTON

RING, wear

6шт.

15

S6039

O-RING

"O" RING - 8.475" ID x 9.000" OD

1шт.

16

S7158

BACK-UP RING

RING, back-up

1шт.

17

S606654

HEAD

1шт.

18

S12682

BOLT

CPSW - 1" NF x 2-1/2" gr 8

10шт.

19

S99284

SEAL

rod

1шт.

20

S99285

WIPER

1шт.

21

S508605

ROD ASSY.

ROD, cylinder

1шт.

22

S228179

WRENCH, spanner

1шт.

23

S609977

SEAL,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

KIT, seal - (Includes items 7, 10, 11, 12, 14, 15, 16, 19 and 20)

1шт.
