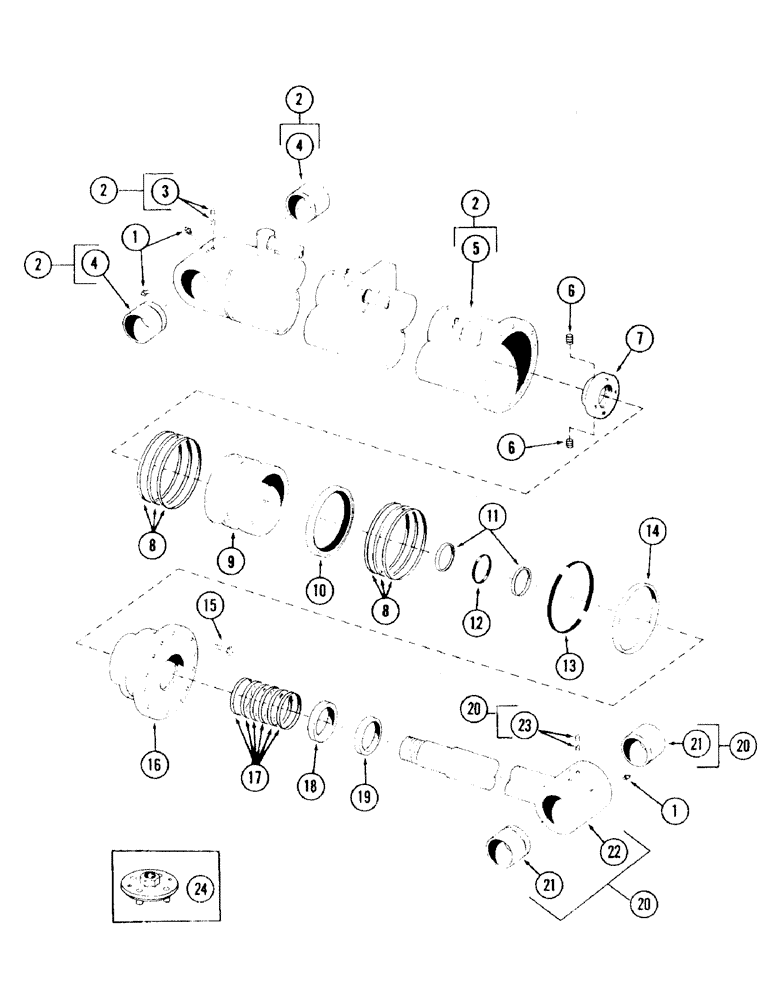

Запчасти Case 120 (209) - HOIST CYLINDER, 10" ID X 58.25" STROKE (35) - HYDRAULIC SYSTEMS

S955239

CYLINDER, hoist - (Supersedes S953956)

2шт.

1

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT straight - (Supersedes S12032)

3шт.

2

S953960

TUBE, cylinder

1шт.

3

S14058

SET SCREW

SCREW, set - 3/8" NC x 3/8"

4шт.

4

S223513

BUSHING

2шт.

5

NSS

NOT SOLD SEPARAT

TUBE

1шт.

6

S14303

SET SCREW

SCREW, set - 1/4" NC x 3/8"

2шт.

7

S508588

NUT, roll pin locking

1шт.

8

S226107

RING, PISTON

RING, wear

6шт.

9

S508589

PISTON

1шт.

10

S99297

SEAL

1шт.

11

S6858

WASHER

RING, back-up

2шт.

12

S6329

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

"O" RING - 3.609" ID x 3.875" OD

1шт.

13

S6041

O-RING

"O" RING - 9.475" ID x 10.000" OD

1шт.

14

S7159

BACK-UP RING

RING - back-up

1шт.

15

S12682

BOLT

CPSW - 1" NF x 2-1/2" gr 8

12шт.

16

S606653

HEAD

1шт.

17

S99085

RING, PISTON

RING, wear

6шт.

18

S99284

SEAL

rod

1шт.

19

S99285

WIPER

1шт.

20

S611378

ROD, cylinder - (Supersedes S508758)

1шт.

21

S223513

BUSHING

2шт.

22

NSS

NOT SOLD SEPARAT

ROD

1шт.

23

S14058

SET SCREW

SCREW, set - 3/8" NC x 3/8"

4шт.

24

S228179

WRENCH, spanner

1шт.

25

S609978

KIT

seal - (Includes items 8, 10 thru 14 and 17 thru 19

1шт.
