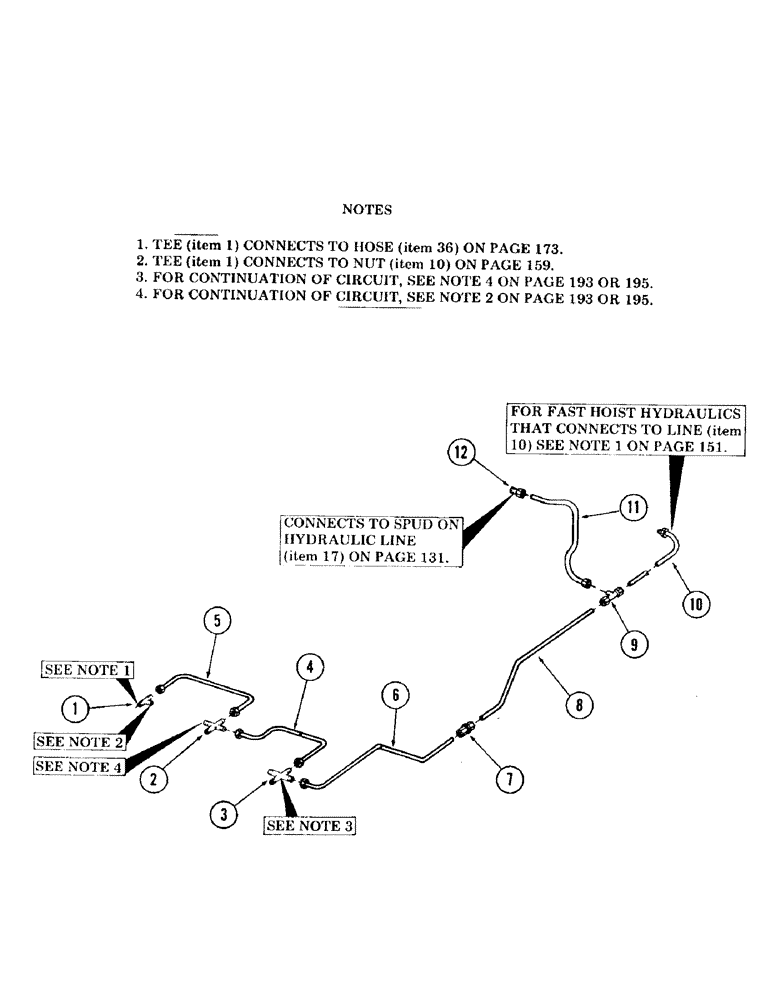

Запчасти Case 120 (207) - DRAIN CIRCUIT, CLUTCH, HAND AND FOOT CONTROL, USED ON UNITS WITH SERIAL NO. 6287229 AND AFTER (35) - HYDRAULIC SYSTEMS

1

S60498

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared

1шт.

2

S101726

TUBE

CROSS - (1/2" tube) - all fittings 3/4" - 16 male - 37 degrees flared

1шт.

3

S101726

TUBE

CROSS - (1/2" tube) - all fittings 3/4" - 16 male - 37 degrees flared

1шт.

4

S226607

LINE

hydraulic

1шт.

5

S116608

LINE

hydraulic

1шт.

6

S226609

LINE

hydraulic

1шт.

7

S97952

UNION

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 male

2шт.

S96912

SLEEVE

- (For 1/2" tube)

2шт.

8

S224824

LINE

hydraulic

1шт.

9

S96924

TEE - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 male

2шт.

S96912

SLEEVE

- (For 1/2" tube)

2шт.

10

S234752

LINE

hydraulic

1шт.

11

S234143

LINE, hydraulic 0.5" OD

1шт.

12

S96915

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 male

2шт.

S96912

SLEEVE

- (For 1/2" tube)

2шт.
