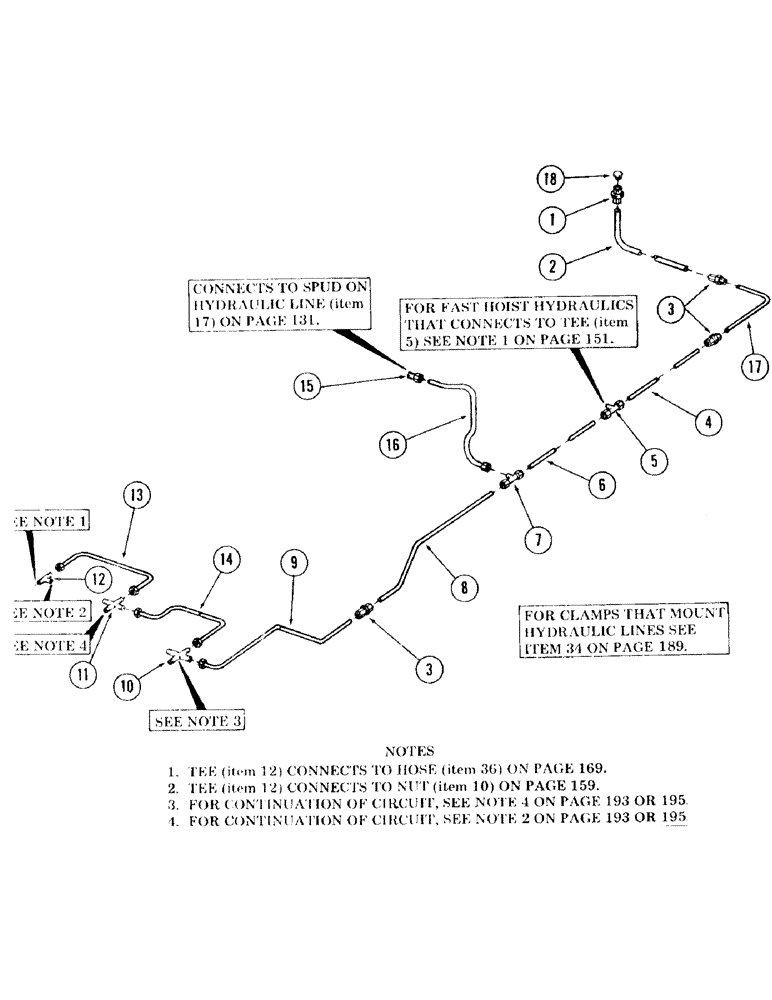

Запчасти Case 120 (205) - DRAIN CIRCUIT, CLUTCH, HAND AND FOOT CONTROL, USED ON UNITS WITH SERIAL NO. 65521 THRU 6287228) (35) - HYDRAULIC SYSTEMS

1

S97953

UNION - (1/2" x 3/8" tube) - 3/4" - 16 male x 9/16" - 18 male

1шт.

S96908

NUT - (3/8" tube) - 9/16" - 18 female

1шт.

S96911

SLEEVE

- (For 3/8" tube)

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

1шт.

S96912

SLEEVE

- (For 1/2" tube)

1шт.

2

S224828

LINE

hydraulic

1шт.

3

S97952

UNION

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male

3шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

6шт.

S96912

SLEEVE

- (For 1/2" tube)

6шт.

4

S224817

LINE

hydraulic

1шт.

5

S96922

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/8" NPT female

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

2шт.

S96912

SLEEVE

- (For 1/2" tube)

2шт.

6

S224818

LINE

hydraulic

1шт.

7

S96924

TEE - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 male

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

2шт.

S96912

SLEEVE

- (For 1/2" tube)

2шт.

8

S224824

LINE

hydraulic

1шт.

9

S226609

LINE

hydraulic

1шт.

10

S101726

TUBE

CROSS - (1/2" tube) - all fittings 3/4" - 16 male - 37 degrees flared

1шт.

11

S101726

TUBE

CROSS - (1/2" tube) - all fittings 3/4" - 16 male - 37 degrees flared

1шт.

12

S60498

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared

1шт.

13

S226608

LINE

hydraulic

1шт.

14

S226607

LINE

hydraulic

1шт.

15

S96915

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

2шт.

S96912

SLEEVE

- (For 1/2" tube)

2шт.

16

S234143

LINE, hydraulic - (Supersedes S230282) 0.5" OD

1шт.

17

S224829

LINE, hydraulic

1шт.

18

S96928

CAP

- (3/8" tube) - 37 degrees flared

1шт.
