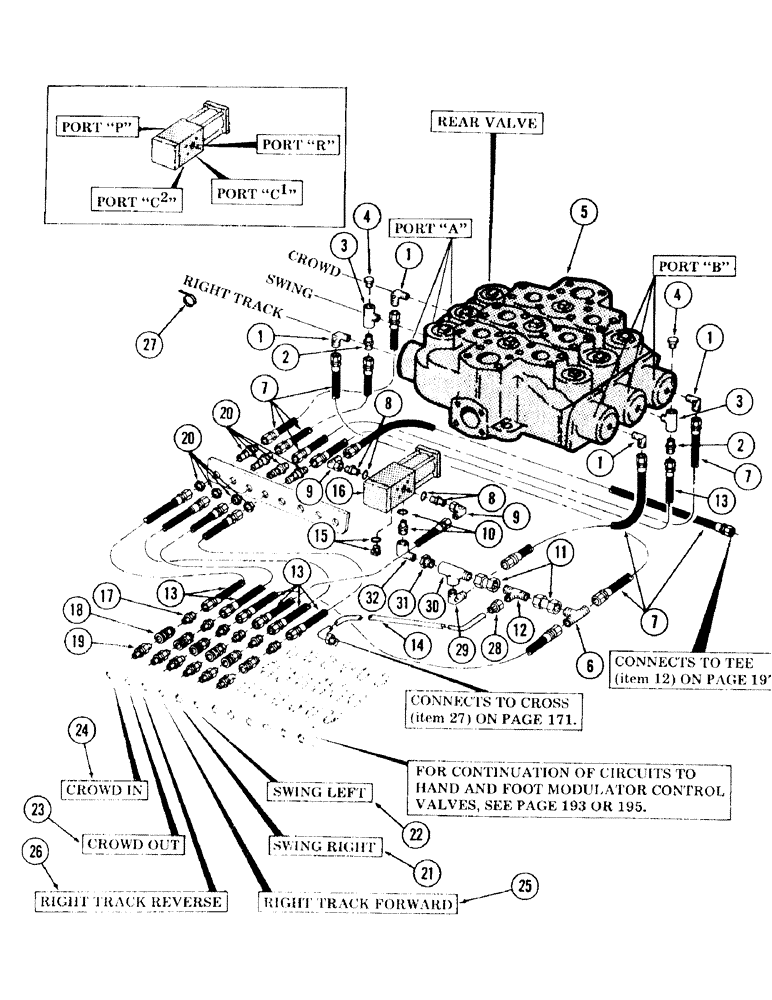

Запчасти Case 120 (201) - PILOT PRESSURE CIRCUIT, BULKHEAD TO REAR MAIN CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

S63421

ELBOW

90 degrees - (1/2" tube) - 3/4" - 16 male x 1/4" NPT male - 37 degrees flared

4шт.

2

S101310

ADAPTER

- (1/2" tube) - 3/4" - 16 male x 1/4" NPT male - 37 degrees flared

2шт.

3

S62673

TEE

- 1/4" NPT female x 1/4" NPT female x 1/4" NPT female

2шт.

4

S15162

PLUG

- 1/4" NPT male - (Use only when fast hoist is not furnished)

2шт.

5

REF

INSTRUCTION

VALVE, main control - (Rear) - (For breakdown, see Figure 271)

1шт.

6

S101498

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

1шт.

7

S227391

HOSE, high pressure - 3/8" ID x 36" long - (With 3/4" - 16 female pressed on couplings)

8шт.

8

S84751

HYD CONNECTOR

CONNECTOR - (1/2" tube) - 9/16" - 18 male x 3/4" - 16 male - 37 degrees flared

2шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x 6.24" OD

2шт.

9

S10357

ELBOW

90 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

2шт.

10

S11271

FITTING

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

1шт.

11

S230150

VALVE, check

2шт.

12

S106688

TEE

1шт.

13

S227390

HOSE, high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

7шт.

14

S510466

LINE

hydraulic

1шт.

15

S8980

PLUG

- (3/8" tube) - 9/16" - 18 male

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

1шт.

16

REF

INSTRUCTION

VALVE, solenoid - (For breakdown, see Figure 257)

1шт.

17

S60833

ADAPTER

- (1/2" tube) - 3/4" - 16 male x 3/8" NPT male - 37 degrees flared

6шт.

18

S227610

COUPLING

half

6шт.

19

S227611

NIPPLE, half

6шт.

20

S103696

UNION

BULKHEAD - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared - (Includes nut)

4шт.

21

S99814

TAG, identification - (Swing Right)

1шт.

22

S99815

TAG, identification - (Swing Left)

1шт.

23

S99809

TAG, identification - (Crowd Out)

1шт.

24

S99808

TAG, identification - (Crowd In)

1шт.

25

S99806

TAG, identificaiton - (Right Track Forward)

1шт.

26

S99807

TAG, identification - (Right Track Reverse)

1шт.

27

S73386

FASTENER

TIE, cable

1шт.

28

S106687

CONNECTOR, ELEC

CONNECTOR - (1/2" tube) - 3/4" - 16 female x 1/2" NPT female

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female - 37 degrees flared

1шт.

S96912

SLEEVE

- (For 1/2" tube)

1шт.

29

S17524

ELBOW

90 degrees pipe - 1/4" NPT male x 1/4" NPT female

1шт.

30

S17938

TEE

pipe - 1/4" NPT male x 1/4" NPT female x 1/4" NPT female

1шт.

31

S7781

BUSHING

reducing - (1/2" NPT x 1/4" NPT reduction) - 37 degrees flared

1шт.

32

S7731

ELBOW

90 degrees - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

1шт.
