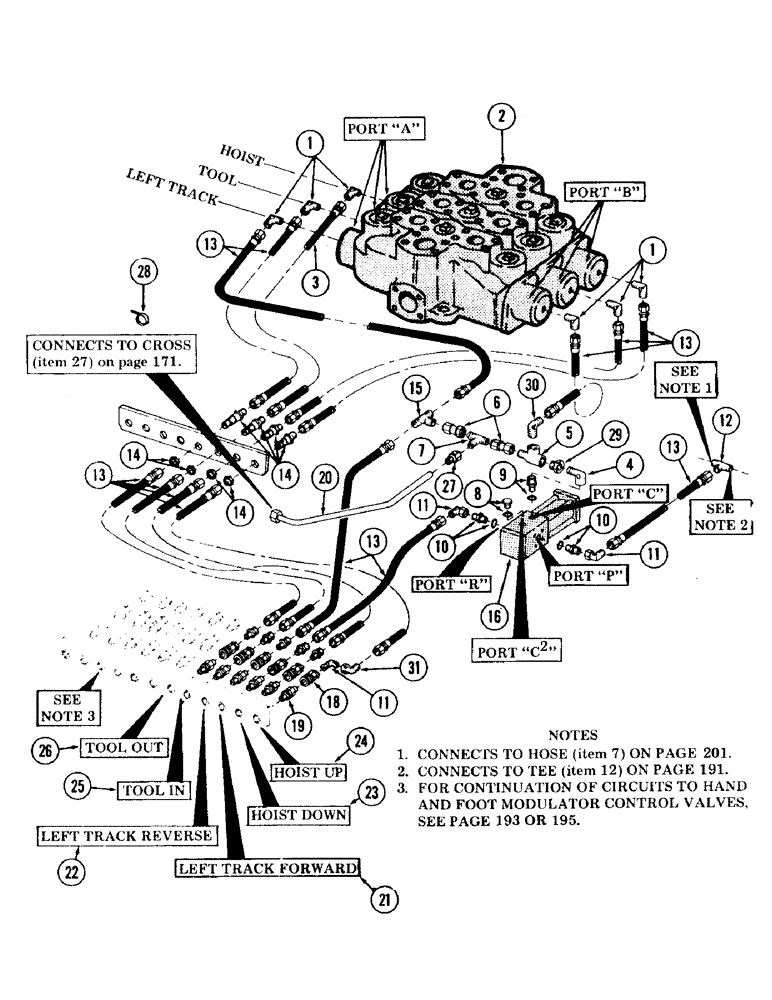

Запчасти Case 120 (197) - PILOT PRESSURE CIRCUIT, BULKHEAD TO FRONT MAIN CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

S63421

ELBOW

90 degrees - (1/2" tube) - 3/4" - 16 male x 1/4" NPT male - 37 degrees flared

6шт.

2

REF

INSTRUCTION

VALVE, main control - (Front) - (For breakdown, see Figure 271)

1шт.

3

S227393

HOSE, high pressure - 3/8" ID x 48" long - (With 3/4" - 16 female pressed on couplings)

1шт.

4

S17524

ELBOW

90 degrees pipe - 1/4" NPT male x 1/4" NPT female

1шт.

5

S17938

TEE

pipe - 1/4" NPT male x 1/4" NPT female x 1/4" NPT female

1шт.

6

S230150

VALVE, check

2шт.

7

S106688

TEE

1шт.

8

S8980

PLUG

- (3/8" tube) - 9/16" - 18 male - 37 degrees flared - (into port "C square")

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624"OD

1шт.

9

S11271

FITTING

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

1шт.

10

S84751

HYD CONNECTOR

CONNECTOR - (1/2" tube) - 9/16" - 18 male x 3/4" - 16 male - 37 degrees flared

2шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

2шт.

11

S10357

ELBOW

90 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - female - 37 degrees flared

3шт.

12

S60421

TEE

- (1/2" tube) - 3/4" - 16 male x 3/8" NPT male x 3/4" - 16 male - 37 degrees flared

1шт.

13

S227390

HOSE, high pressure 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

11шт.

14

S130696

FITTING, bulkhead - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared - (Includes nut)

4шт.

15

S101498

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

1шт.

16

REF

INSTRUCTION

VALVE, solenoid - (For breakdown, see Figure 257)

1шт.

S2361

BOLT

CPSW - 1/4" NC x 4" gr 5 - (Mounts valve)

4шт.

S17082

NUT

self locking - 1/4" NC - (Mounts valve)

4шт.

17

S60833

ADAPTER

- (1/2" tube) - 3/4" - 16 male x 3/8" NPT male - 37 degrees flared

5шт.

18

S227610

COUPLING

half

6шт.

19

S227611

NIPPLE, half

6шт.

20

S510465

LINE

hydraulic

1шт.

21

S99804

TAG, identification - (Left Track Forward)

1шт.

22

S99805

TAG, identification - (Left Track Reverse)

1шт.

23

S99812

TAG, identification - (Hoist Down)

1шт.

24

S99813

TAG, identification - (Hoist Up)

1шт.

25

S99810

TAG, identification - (Tool In)

1шт.

26

S99811

TAG, identification - (Tool Out)

1шт.

27

S106687

CONNECTOR, ELEC

CONNECTOR - (1/2" tube) - 3/4" - 16 female x 1/2" NPT female

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female - 37 degrees flared

1шт.

S96912

SLEEVE

- (For 1/2" tube)

1шт.

28

S73386

FASTENER

TIE, cable

1шт.

29

S7781

BUSHING

reducing - (1/2" NPT x 1/4" NPT reduction) - 37 degrees flared

1шт.

30

S7731

ELBOW

90 degrees - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

1шт.

31

S7732

ELBOW

90 degrees - (1/2" tube) - 3/4" - 16 male x 3/8" NPT male - 37 degrees flared

1шт.
