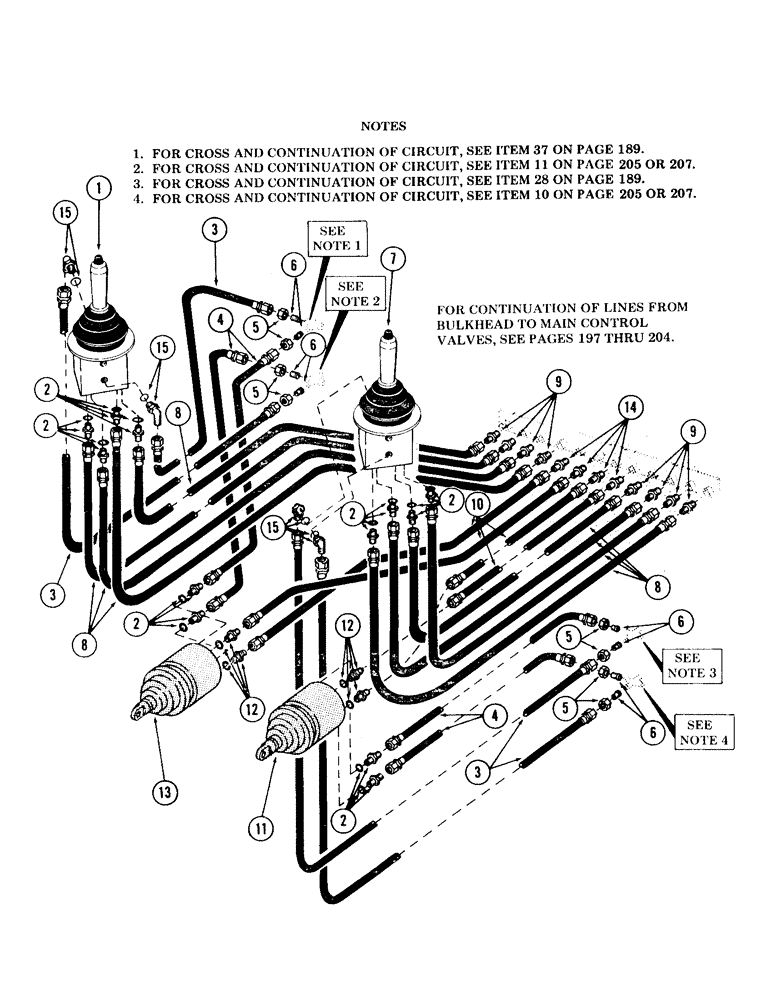

Запчасти Case 120 (193) - PILOT PRESSURE CIRCUIT, MODULATOR CONTROL VALVES TO BULKHEAD (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE, modulator hand control - (For breakdown, see Figure 249) - (controls Right Track and Crowd functions)
1шт.
2
S7961
CONNECTOR, ELEC
CONNECTOR - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared
12шт.
S6059
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
"O" RING - .468" ID x .624" OD
12шт.
3
S227396
HOSE ASSY.
HOSE, high pressure - 3/8" ID x 50" long - (With 9/16" - 18 female pressed on couplings)
4шт.
4
S99421
HOSE ASSY.
HOSE, high pressure - 3/8" ID x 23" long - (With 9/16" - 18 female pressed on couplings)
4шт.
5
S6275
NUT
- (1/2" tube) - 3/4" - 16 female - 37 degrees flared
8шт.
6
S101830
FITTING
ADAPTER, reducing - (1/2" x 3/8" tube reduction) - 9/16" - 18 male
8шт.
7
REF
INSTRUCTION
VALVE, modulator hand control - (For breakdown, see Figure 249) - controls Left Track and Hoist functions)
1шт.
8
S227397
HOSE ASSY.
HOSE, high pressure - 3/8" ID x 70" long - (With 9/16" - 18 female pressed on couplings)
8шт.
9
S101308
ADAPTER
CONNECTOR - (3/8" tube) - 9/16" - 18 male x 3/8" - 18 NPT male - 37 degrees flared
8шт.
10
S227391
HOSE, high pressure - 3/8" ID x 36" long - (With 3/4" - 16 female pressed on couplings)
4шт.
11
REF
INSTRUCTION
VALVE, modulator foot pedal control - (For breakdown, see Figure 251) - (Controls Swing function)
1шт.
12
S84751
HYD CONNECTOR
CONNECTOR - (1/2" tube) - 9/16" - 18 male x 3/4" - 16 male - 37 degrees flared
4шт.
S6059
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
"O" RING - .468" ID x .624" OD
4шт.
13
REF
INSTRUCTION
VALVE, modulator foot pedal control - (For breakdown, see Figure 251) - (Controls Tool function)
1шт.
14
S60833
ADAPTER
CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/8" - 18 NPT male - 37 degrees flared
4шт.
15
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB
Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring
4шт.
S6059
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
"O" RING - 4.68" ID x .624" OD
4шт.
Выбрано товаров: 18
