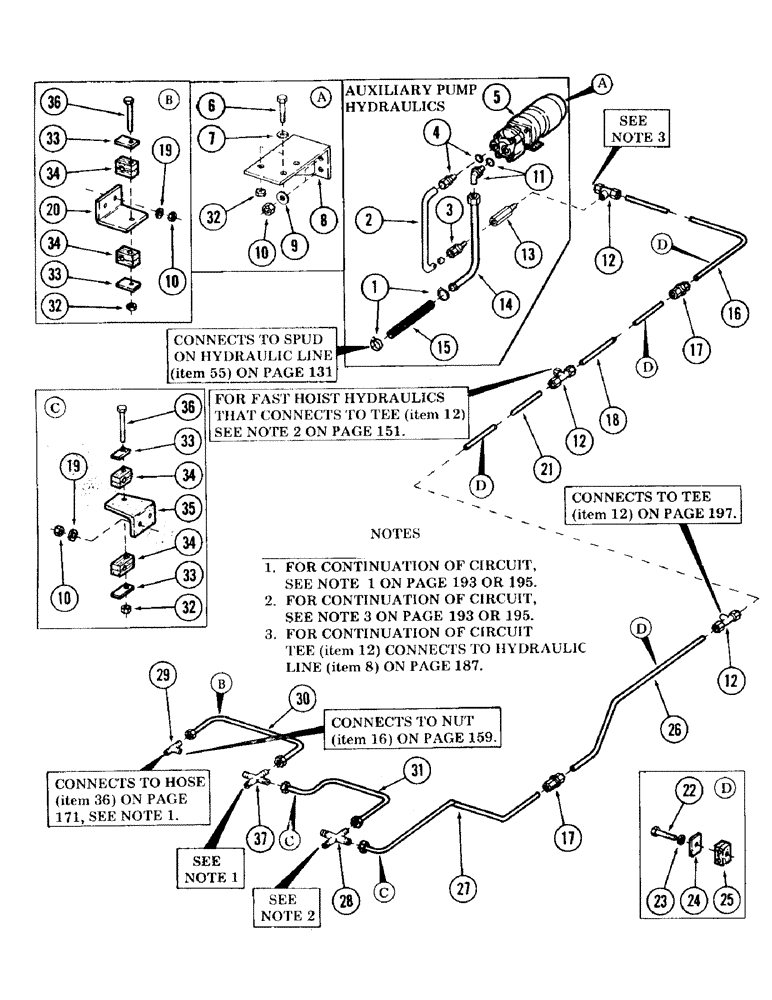

Запчасти Case 120 (189) - PILOT PRESSURE CIRCUIT, RESERVOIR TO PUMP TO VALVES, INCLUDES AUXILIARY PUMP HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S10872

HOSE CLAMP

CLAMP, hose

2шт.

2

S224815

LINE

hydraulic

1шт.

3

S96914

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 1/4" NPT male

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

1шт.

S96912

SLEEVE

- (For 1/2" tube)

1шт.

4

S96932

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

1шт.

S96912

SLEEVE

- (For 1/2" tube)

1шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

5

S507822

AUXILIARY PUMP AND MOTOR ASSEMBLY - (Includes items listed below which are not illustrated)

1шт.

S73071

PUMP ASSEMBLY

1шт.

S73073

MOTOR ASSEMBLY

1шт.

S73074

COUPLING

1шт.

S73203

SOLENOID

1шт.

S73281

CONNECTOR, ELEC

CONNECTOR

1шт.

S73287

BASE

ASSEMBLY

1шт.

S73288

CPSW

4шт.

S73864

WASHER

4шт.

6

S2425

CPSW - 3/8" NC x 1-3/8" gr 5 - (Mounts, Serial Range: motor-bracket)

3шт.

7

S7387

WASHER

flat - 3/8"

3шт.

8

S223681

BRACKET

1шт.

9

S86132

WASHER

flat 1/2"

4шт.

10

S17169

INSTRUCTION

NUT, self locking - 1/2" NC - (Mounts, Serial Range: bracket-turntable)

4шт.

11

S7940

ADAPTER

ELBOW, 90 degrees adjustable - (5/8" tube) - 7/8" - 14 male x 7/8" - 14 male - 37 degrees flared

1шт.

S6063

RING

"O" RING - .755" ID x .949" OD

1шт.

12

S96922

TEE

- (1/2" tube) - 3/8" NPT female x 3/4" - 16 male x 34" - 16 male

3шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

6шт.

S96912

SLEEVE

- (For 1/2" tube)

6шт.

13

S78869

VALVE

check

1шт.

14

S234335

LINE, hydraulic 0.62" OD x 13.94, 3.12" L

1шт.

15

S29183

HOSE, low pressure (Bulk) - 1 piece - 5/8" ID x 12" long

1шт.

16

S224816

LINE, hydraulic

1шт.

17

S97952

UNION

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male

2шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

4шт.

S96912

SLEEVE

- (For 1/2" tube)

4шт.

18

S224817

LINE

hydraulic

1шт.

19

S95569

WASHER

flat - 1/2"

6шт.

20

S224811

BRACKET

clamp mounting

1шт.

21

S224818

LINE

hydraulic

1шт.

22

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

5шт.

23

S4399

WASHER

lock - 1/2"

5шт.

24

S97929

BAR

5шт.

25

S224806

CLAMP, wood

5шт.

26

S224819

LINE

hydraulic

1шт.

27

S226606

LINE, hydraulic

1шт.

28

S101726

TUBE

CROSS - (1/2" tube) - all fittings - 3/4" - 16 male - 37 degrees flared

1шт.

29

S60498

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 3/4" - 16 male - 37 degrees flared

1шт.

30

S226608

LINE

hydraulic

1шт.

31

S226607

LINE

hydraulic

1шт.

32

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.

33

S104753

BAR

6шт.

34

S104744

CLAMP, wood

6шт.

35

S226603

BRACKET

clamp mounting

2шт.

36

S2412

BOLT

CPSW - 3/8" NC x 3-3/4" gr 5

3шт.

37

S101726

TUBE

CROSS - (1/2" tube) - all fittings - 3/4" - 16 male - 37 degrees flared

1шт.
