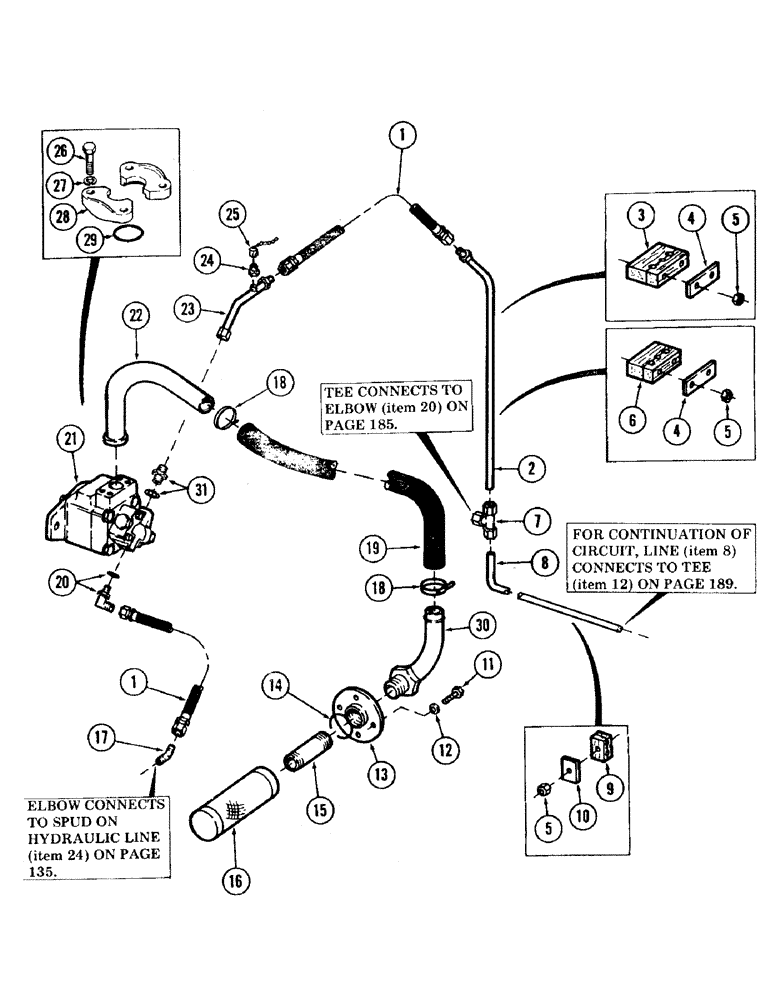

Запчасти Case 120 (187) - PILOT PRESSURE CIRCUIT, RESERVOIR TO PUMP TO VALVES (35) - HYDRAULIC SYSTEMS

1

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

2шт.

2

S224813

LINE

hydraulic

1шт.

3

S224804

CLAMP, wood

1шт.

4

S97928

BAR

2шт.

5

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

5шт.

6

S224805

CLAMP, wood

1шт.

7

S96922

TEE

- (1/2" tube) - 3/4" - 16 male x 3/8" NPT female - 37 degrees flared

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

2шт.

S96912

SLEEVE

- (For 1/2" tube)

2шт.

8

S224814

LINE

hydraulic

1шт.

9

S224806

CLAMP, wood

1шт.

10

S96929

BAR

1шт.

11

S16475

CAPSCREW

CPSW - 5/16" NC x 1" gr 8 - (Mounts flange to hydraulic oil reservoir)

4шт.

12

S103366

WASHER

oil seal - 5/16"

4шт.

13

S200926

FLANGE, filter mounting

1шт.

14

S6334

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - 4.234" ID x 4.500" OD

1шт.

15

S15354

NIPPLE, pipe - 1/2" x 6" long

1шт.

16

S220566

FILTER

hydraulic oil - (In hydraulic oil reservoir)

1шт.

17

S5017

ELBOW

45 degrees - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

1шт.

18

S87852

CLAMP

hose

2шт.

19

S28123

HOSE

low pressure (Bulk) - 1 piece - 1-1/2" ID x 10" long

1шт.

20

S7939

ELBOW

90 degrees adjustable - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared

1шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

21

REF

INSTRUCTION

PUMP, Tandem hydraulic - (For breakdown, see Figure 237)

1шт.

22

S233565

LINE, hydraulic - (Supersedes S223727) 1.5" OD x 8.12, 4.06" L

1шт.

23

S224844

LINE, hydraulic

1шт.

24

S206607

DISC

ONNECT, quick

1шт.

25

S206608

CAP

dust

1шт.

26

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

2шт.

27

S4399

WASHER

lock, - 1/2"

4шт.

28

S10865

CLAMP

half flange

2шт.

29

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD - (Supersedes S96800)

1шт.

30

S233564

LINE, hydraulic - (Supersedes S225362) 1.5" OD x 6.34, 9.24" L

1шт.

31

S7963

FITTING

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared - (Includes "O" ring)

1шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.
