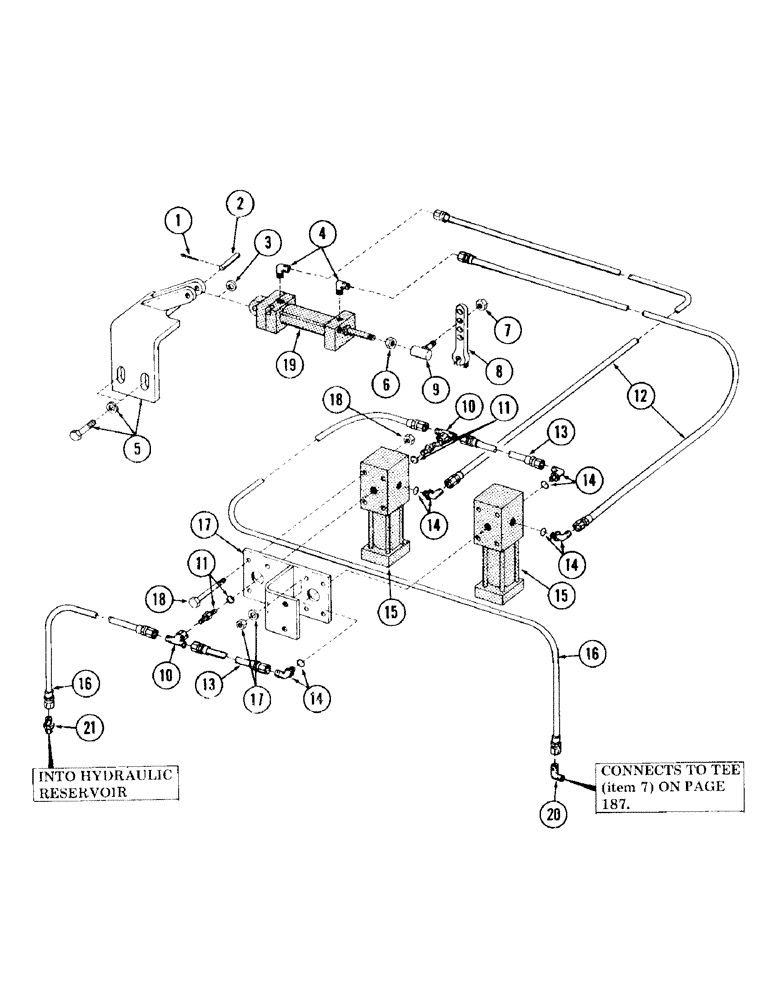

Запчасти Case 120 (185) - CLUTCH CYLINDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S4626

PIN, cotter - 1/8" x 3/4" long

1шт.

2

S10774

CLEVIS PIN

PIN, clevis - 3/8" x 1.641" grip length

1шт.

3

S7395

WASHER

flat - 9/16"

1шт.

4

S7734

ELBOW

90 degrees - (3/8" tube) - 1/4" NPT male x 9/16" - 18 male

2шт.

5

S508332

BRACKET, clutch cylinder mounting

1шт.

S2503

BOLT (MACHINE)

CPSW - 5/8" NC x 1-3/4" gr 5

2шт.

S7403

WASHER

flat - 5/8"

2шт.

6

425-157

JAM NUT,Jam, 7/16"-20, G5

jam - 7/16" NF

1шт.

7

S17154

LOCK NUT

NUT, self locking - 7/16" NF

1шт.

8

S223742

LEVER, hydraulic pump destroke

1шт.

9

S96807

BALLJOINT

1шт.

10

S63596

FITTING

TEE - (3/8" tube) - 9/16" - 18 female x 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

2шт.

11

S7961

CONNECTOR, ELEC

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

2шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

2шт.

12

S227396

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 50" long - (With 9/16" - 18 female pressed on couplings)

2шт.

13

S233499

TUBE ASSY.,0.375" OD x 5.56, 3.06" L

LINE, hydraulic

2шт.

14

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

(3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

4шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

4шт.

15

REF

INSTRUCTION

VALVE, solenoid - (For breakdown, see Figure 257)

2шт.

16

S227395

HOSE

high pressure - 3/8" ID x 21" long - (With 9/16" - 18 female pressed on couplings)

1шт.

17

S226597

BRACKET, solenoid valve mounting

1шт.

S7395

WASHER

flat - 9/16"

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

18

S2361

BOLT

CPSW - 1/4" NC x 3" gr 5 - (Mounts, Serial Range: valves-bracket)

8шт.

19

REF

INSTRUCTION

CYLINDER, hydraulic clutch - (For breakdown, see Figure 219)

1шт.

S3347

CPSW - 1/4" NF x 1-1/4" gr 5

2шт.

S7342

WASHER, LOCK

- 1/4" - (Internal tooth)

2шт.

20

S63427

ELBOW

- (3/8" tube) - 9/16" - 18 male x 1/2" NPT male - 37 degrees flared

1шт.

21

S101308

ADAPTER

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.
