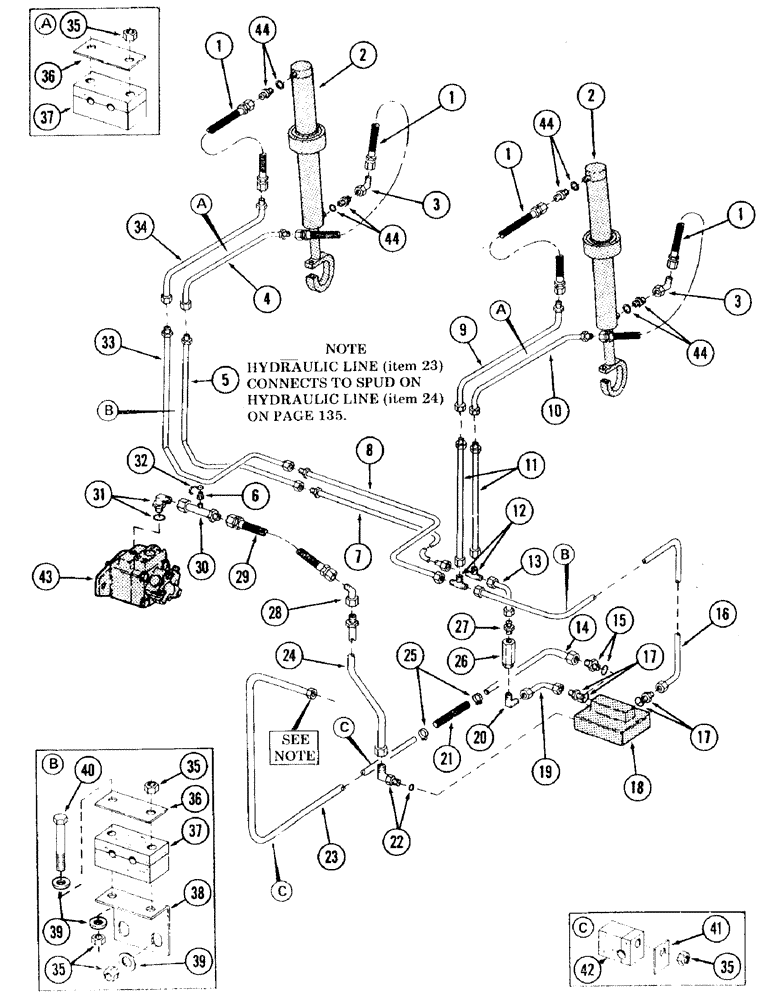

Запчасти Case 120 (177) - COUNTERWEIGHT REMOVAL HYDRAULICS, USED ON UNITS WITH SERIAL NO. 65521 THRU 6287228 (35) - HYDRAULIC SYSTEMS

1

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

4шт.

2

REF

INSTRUCTION

CYLINDER, counterweight - (For breakdown, see Figure 215 or 217)

2шт.

3

S10357

ELBOW

90 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

2шт.

4

S223666

LINE

hydraulic

1шт.

5

S226710

LINE

hydraulic

1шт.

6

S206608

CAP

DISCONNECT, quick

1шт.

7

S226708

LINE

hydraulic

1шт.

8

S226709

LINE

hydraulic

1шт.

9

S223668

LINE

hydraulic

1шт.

10

S223669

LINE, hydraulic

1шт.

11

S205009

LINE, hydraulic

2шт.

12

S60498

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared

2шт.

13

S224278

LINE

hydraulic

1шт.

14

S223725

LINE

hydraulic

1шт.

15

S7966

HYD CONNECTOR

CONNECTOR - (5/8" tube) - 7/8" - 14 male x 7/8" - 14 male - 37 degrees flared

1шт.

S6063

RING

"O" RING - .755" ID x .949" OD

1шт.

16

S226707

LINE

hydraulic

1шт.

17

S7963

FITTING

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared

2шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

2шт.

18

REF

INSTRUCTION

VALVE, counterweight removal control - (For breakdown and mounting hardware, see Figure 243 or 245)

1шт.

19

S224279

LINE

hydraulic

1шт.

20

S7732

ELBOW

90 degrees adapter - (1/2" tube) - 3/4" - 16 male x 3/8" - 18 NPT male - 37 degrees flared

1шт.

21

S29183

HOSE, low pressure (Bulk) - 1 piece - 5/8" ID x 9" long

1шт.

22

S2092

ELBOW

90 degrees adjustable - (5/8" tube) - 7/8" - 14 male x 3/4" - 16 male - 37 degrees flared

1шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

23

S509052

LINE

hydraulic

1шт.

24

S223728

LINE, hydraulic 0.62" OD

1шт.

25

S10872

HOSE CLAMP

CLAMP, hose

2шт.

26

S209954

CONTROL

VALVE, check

1шт.

27

S60833

ADAPTER

- (1/2" tube) - 3/4" - 15 male x 3/8" - 18 NPT male - 37 degrees flared

1шт.

28

S9491

ELBOW

45 degrees swivel - (5/8" tube) - 7/8" - 14 male x 7/8" - 14 female - 37 degrees flared

1шт.

29

S8578

HOSE

high pressure - 1/2" ID x 26" long - (With 7/8" - 14 female pressed on couplings)

1шт.

30

S224130

LINE

hydraulic

1шт.

31

S7951

ELBOW

90 degrees adjustable - (5/8" tube) - 7/8" - 14 male x 1-1/16" - 12 male - 37 degrees flared

1шт.

S6065

RING

"O" RING - .924" ID x 1.156" OD

1шт.

32

S206607

DISC

CAP, dust

1шт.

33

S509053

LINE

hydraulic

1шт.

34

S223665

LINE

hydraulic

1шт.

35

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

36

S96188

PLATE

1шт.

37

S223671

CLAMP, wood tube block

1шт.

38

S223670

ANGLE

1шт.

39

S95569

WASHER

flat - 1/2"

1шт.

40

S2475

BOLT

CPSW - 1/2" NC x 3-1/2" gr 5

1шт.

41

S97775

CLAMP, wood tube block

1шт.

42

S90688

BAR

PLATE

1шт.

43

REF

INSTRUCTION

PUMP, Tandem hydraulic - (For breakdown, see Figure 237)

1шт.

44

S7963

FITTING

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared - (Used on units with serial number 6287225 thru 6287228)

4шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

4шт.
