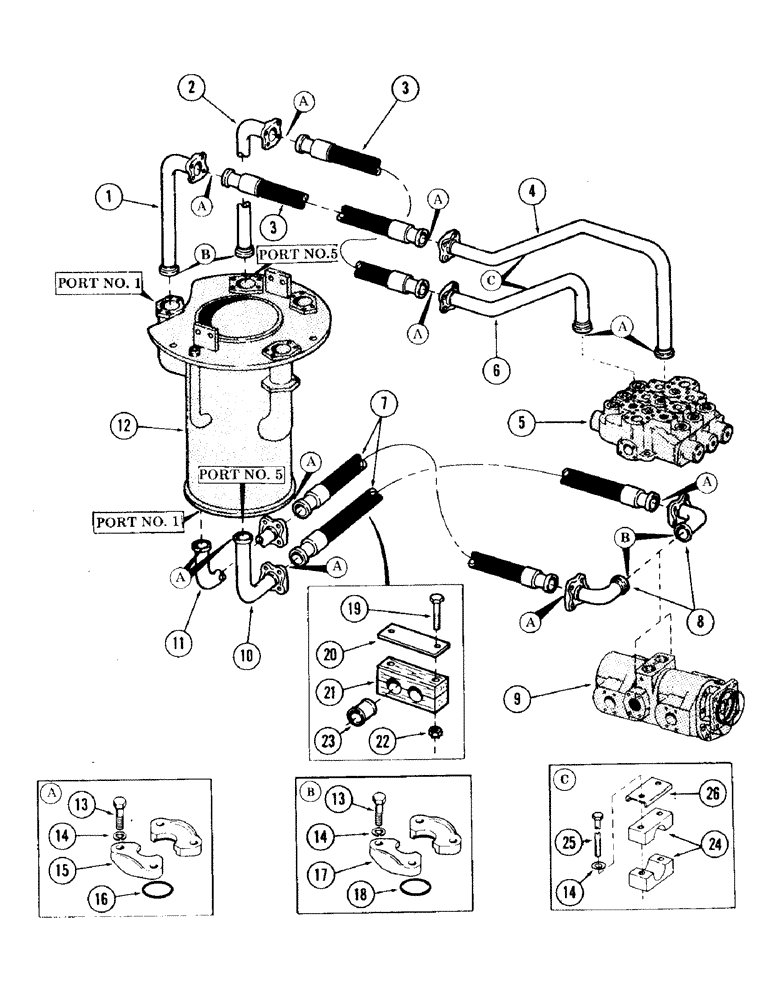

Запчасти Case 120 (161) - LEFT TRACK DRIVE MOTOR HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S226618

LINE, hydraulic 1.75" OD x 17.4, 4.5" L

1шт.

2

S226617

LINE, hydraulic 1.75" OD x 13.65, 4.5" L

1шт.

3

S226614

HOSE, high pressure

2шт.

4

S226620

LINE

hydraulic

1шт.

5

REF

INSTRUCTION

VALVE, main control - (Front) - (For breakdown, see Figure 271)

1шт.

6

S226619

LINE

hydraulic

1шт.

7

S223133

HOSE, high pressure - (Supersedes S223134)

2шт.

8

S224765

LINE, hydraulic 1.75" OD x 4.75, 4.75" L

2шт.

9

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see Figure 229)

1шт.

10

S224766

LINE, hydraulic 1.75" OD x 5, 5" L

1шт.

11

S226666

LINE

hydraulic

1шт.

12

REF

INSTRUCTION

SWIVEL, 5-port hydraulic - (For breakdown, see Figure 239)

1шт.

13

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

14

S4399

WASHER

lock - 1/2"

1шт.

15

S10865

CLAMP

half flange

1шт.

16

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD - (Supersedes S96800)

1шт.

17

S10866

CLAMP

half flange

1шт.

18

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD - (Supersedes S96801)

1шт.

19

S2485

BOLT

CPSW - 1/2" NC x 6" gr 5

2шт.

20

S96792

BAR

1шт.

21

S223654

CLAMP

wood

1шт.

22

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

23

S96790

TUBE,3" OD x 2.5" L

2шт.

24

S230188

CLAMP

1шт.

25

S2476

BOLT

CPSW - 1/2" NC x 3-3/4" gr 5

1шт.

26

S106784

CHANNEL

1шт.
