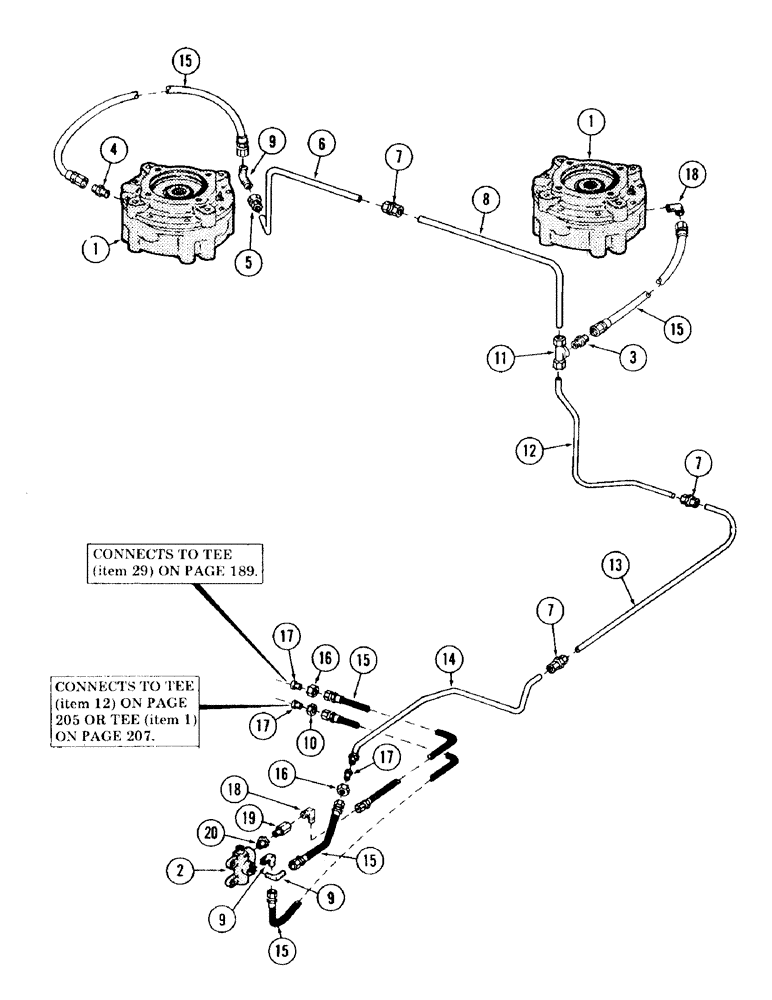

Запчасти Case 120 (159) - SWING BRAKE HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

BRAKE, swing - (For breakdown, see Figure 119)

2шт.

2

REF

INSTRUCTION

VALVE, swing brake - (For breakdown, see Figure 259)

1шт.

3

S101308

ADAPTER

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 3/8" NPT male - 37 degrees flared

1шт.

4

S60835

ADAPTER

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

1шт.

5

S106687

CONNECTOR, ELEC

UNION - (1/2" tube) - 9/16" - 18 male x 1/2" NPT female

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

2шт.

S96912

SLEEVE

- (For 1/2" tube)

2шт.

6

S224834

LINE

hydraulic

1шт.

7

S97952

UNION

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male

3шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

6шт.

S96912

SLEEVE

- (For 1/2" tube)

6шт.

8

S224833

LINE, hydraulic 0.5" OD x 22.35, 9.2" L

1шт.

9

S63427

ELBOW

90 degrees - ( 3/8" tube) - 1/2" NPT male x 9/16" - 18 male

3шт.

10

S6275

NUT

- 3/4" - 16 female - 37 degrees flared

1шт.

11

S96922

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/8" NPT female - 37 degrees flared

1шт.

222-1565

TUBE NUT,3/4"-16, Flareless

NUT - (1/2" tube) - 3/4" - 16 female

2шт.

S96912

SLEEVE

- (For 1/2" tube)

2шт.

12

S224832

LINE, hydraulic 0.5" OD

1шт.

13

S224831

LINE, hydraulic 0.5" OD

1шт.

14

S224830

LINE, hydraulic

1шт.

15

S227395

HOSE

high pressure

5шт.

16

S6275

NUT

- 3/4" - 16 female - 37 degrees flared

2шт.

17

S101830

FITTING

ADAPTER, reducing - 9/16" - 18 male

3шт.

18

S7734

ELBOW

90 degrees - (3/8" tube) - 1/4"NPT male x 9/16" - 18 male

2шт.

19

S78869

VALVE

check

1шт.

20

S7772

BUSHING

reducer - 1/2" NPT male x 3/8" - 18 female

1шт.
