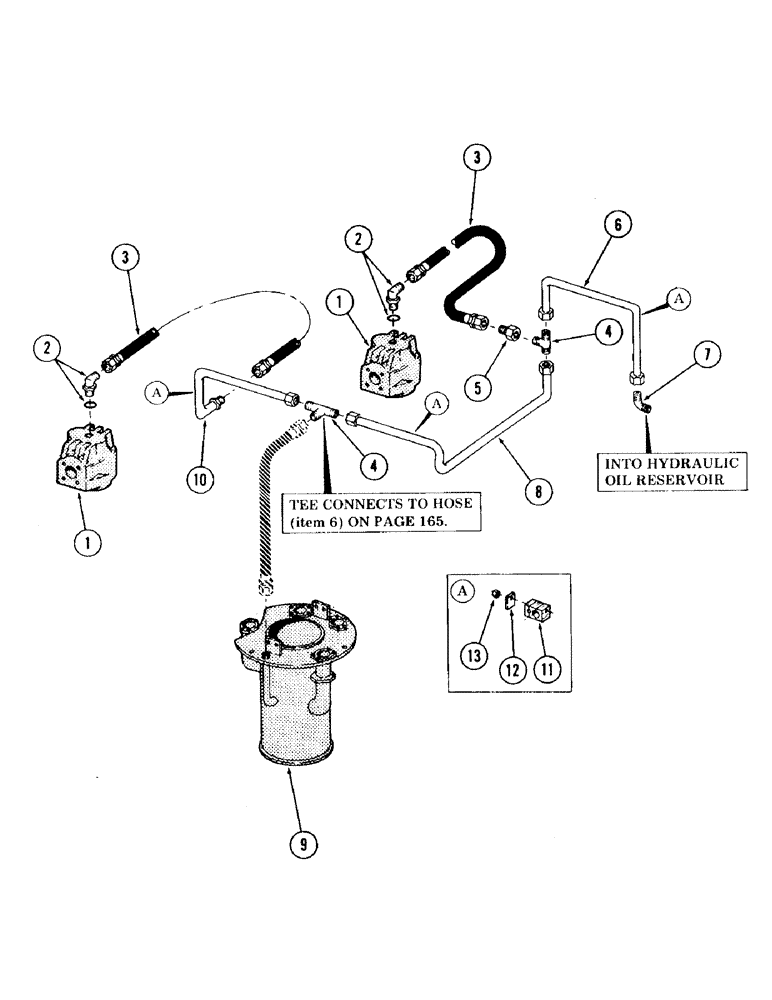

Запчасти Case 120 (157) - SWING MOTOR DRAIN LINES (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

MOTOR, swing - (For breakdown, see Figure 233)

2шт.

2

S2092

ELBOW

90 degrees adjustable - (5/8" tube) - 7/8" - 14 male x 3/4" - 16 male - 37 degrees flared

2шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

3

S8578

HOSE

high pressure - 1/2" ID x 26" long - (With 7/8" - 14 female pressed on couplings)

2шт.

4

S60500

TEE

- (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 male x 1-1/16" - 12 male - 37 degrees flared

2шт.

5

S101836

REDUCER

ADAPTER, reducing - (3/4" x 5/8" tube reduction) - 7/8" - 14 male x 1-1/16" - 12 female - 37 degrees flared

1шт.

6

S233289

LINE, hydraulic 0.75" OD x 8.25, 8.38" L

1шт.

7

S7735

ELBOW

- (3/4" tube) - 1-1/16" male x 3/4" NPT male - 37 degrees flared

1шт.

8

S233291

LINE, hydraulic 0.75" OD

1шт.

9

REF

INSTRUCTION

SWIVEL, 5-port hydraulic - (For breakdown, see Figure 239)

1шт.

10

S224850

LINE, hydraulic 0.75" OD

1шт.

11

S97966

CLAMP, wood

3шт.

12

S90688

BAR

3шт.

13

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

3шт.
