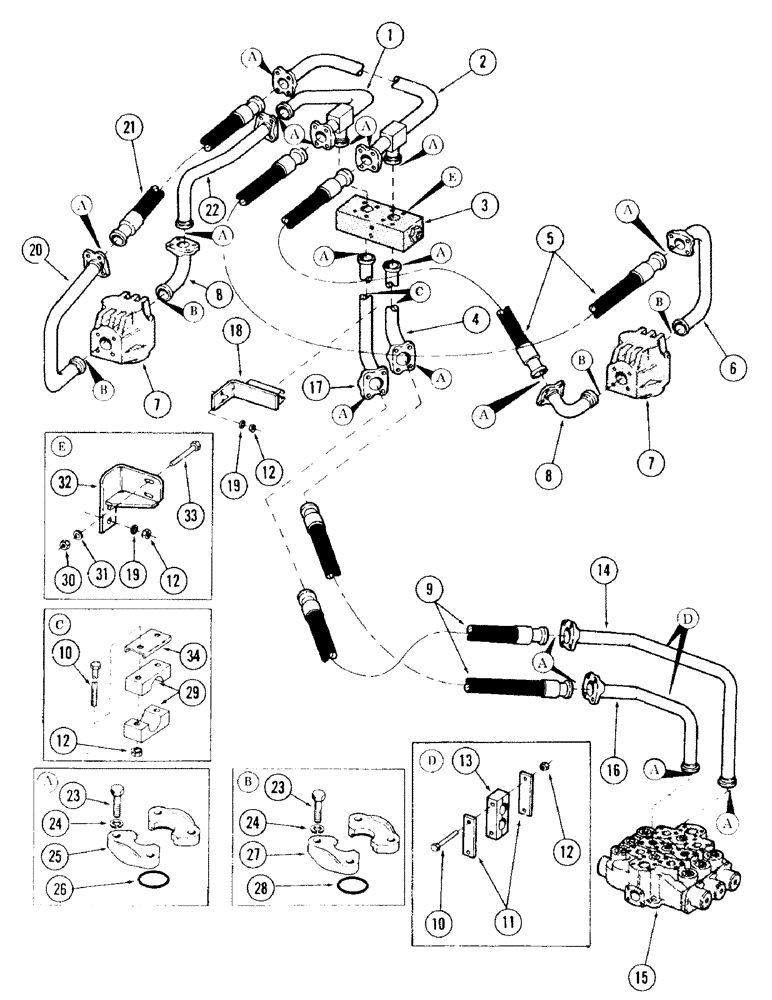

Запчасти Case 120 (155) - SWING MOTOR HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S224770

LINE, hydraulic 1.75" OD

1шт.

2

S224771

LINE, hydraulic 1.75" OD

1шт.

3

REF

INSTRUCTION

VALVE, swing crossover relief - (For breakdown, see Figure 261)

1шт.

4

S224775

LINE, hydraulic 1.75" OD x 17, 4.5" L

1шт.

5

S223644

HOSE, high pressure

2шт.

6

S224779

LINE, hydraulic 1.75" OD x 13.3, 5.5" L

1шт.

7

REF

INSTRUCTION

MOTOR, swing - (For breakdown, see Figure 233)

2шт.

8

S224765

LINE, hydraulic 1.75" OD x 4.75, 4.75" L

2шт.

9

S223645

HOSE, high pressure

2шт.

10

S2476

BOLT

CPSW - 1/2" NC x 3-3/4" gr 5

1шт.

11

S96802

BAR

2шт.

12

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

13

S223686

CLAMP, wood

1шт.

14

S224774

LINE

hydraulic

1шт.

15

REF

INSTRUCTION

VALVE, main control - (Rear) - (For breakdown, see Figure 271)

1шт.

16

S224773

LINE, hydraulic 1.75" OD

1шт.

17

S224776

LINE, hydraulic 1.75" OD x 13.25, 4.5" L

1шт.

18

S106925

BRACKET

clamp mounting

1шт.

19

S95569

WASHER

flat - 1/2"

1шт.

20

S226669

LINE, hydraulic

1шт.

21

S226614

HOSE, high pressure

1шт.

22

S225584

LINE, hydraulic 1.75" OD

1шт.

23

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

24

S4399

WASHER

flat - 1/2"

1шт.

25

S10865

CLAMP

half flange

1шт.

26

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD - (Supersedes S96800)

1шт.

27

S10866

CLAMP

half flange

1шт.

28

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD - (Supersedes S96801)

1шт.

29

S230188

CLAMP

1шт.

30

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

31

S96099

WASHER

flat - 3/8"

2шт.

32

S223732

BRACKET

valve mounting

1шт.

33

S2419

BOLT

CPSW - 3/8" NC x 5-1/4" gr 5 - (Mounts valve to valve mounting bracket)

2шт.

34

S106784

CHANNEL

1шт.
