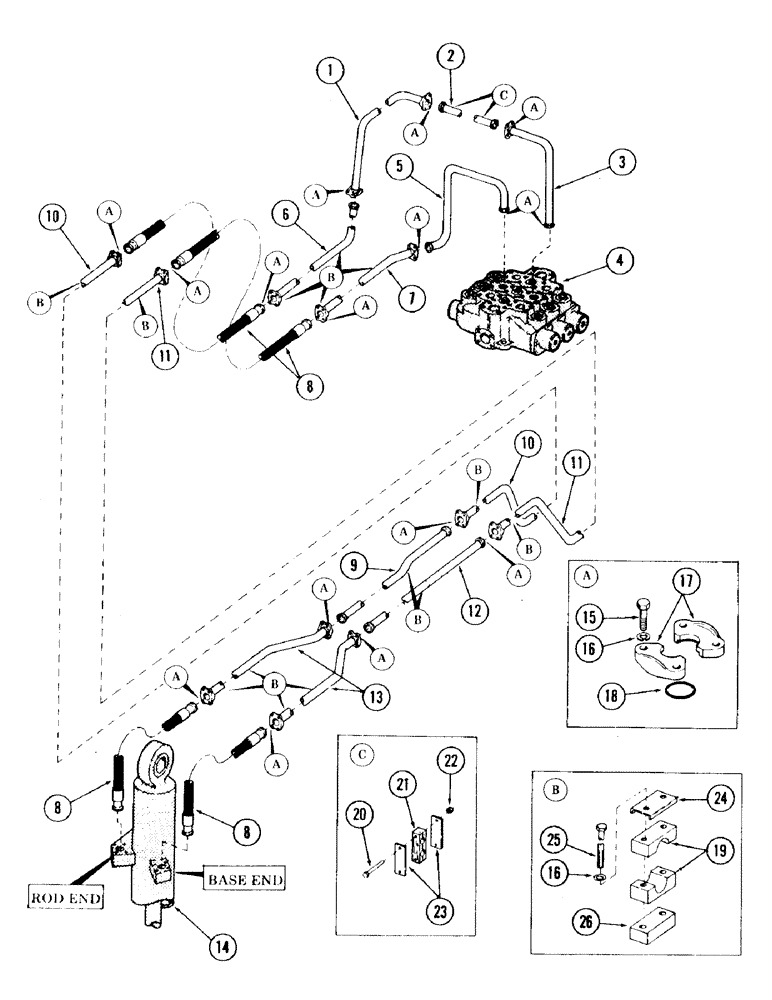

Запчасти Case 120 (149) - TOOL CYLINDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S507853

LINE

hydraulic

1шт.

2

S223719

LINE

hydraulic

1шт.

3

S223718

LINE, hydraulic 1.75" OD x 22.45, 10.9" L

1шт.

4

REF

INSTRUCTION

VALVE, main control - (Front) - (For breakdown, see Figure 271)

1шт.

5

S508285

LINE, hydraulic 1.75" OD

1шт.

6

S230405

LINE, hydraulic

1шт.

7

S230406

LINE, hydraulic 1.75" OD

1шт.

8

S223134

HOSE, high pressure

4шт.

9

S508527

LINE, hydraulic 1.75" OD

1шт.

10

S508302

LINE, hydraulic 1.75" OD

1шт.

11

S508303

LINE, hydraulic

1шт.

12

S508528

LINE, hydraulic 1.75" OD

1шт.

13

S225996

LINE, hydraulic 1.75" OD x 47.62, 5" L

2шт.

14

REF

INSTRUCTION

CYLINDER, tool - (For breakdown, see Figure 213)

1шт.

15

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

16

S4399

WASHER

flat - 1/2"

1шт.

17

S10865

CLAMP

half flange

1шт.

18

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD - (Supersedes S96800)

1шт.

19

S230188

CLAMP

1шт.

20

S2475

BOLT

CPSW - 1/2" NC x 3-1/2" gr 5

4шт.

21

S223686

CLAMP, wood

2шт.

22

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

23

S96802

BAR

4шт.

24

S106784

CHANNEL

1шт.

25

S2474

BOLT (MACHINE)

CPSW - 1/2" NC x 3-1/4" gr 5

1шт.

26

S96187

BLOCK, clamp mounting

1шт.
