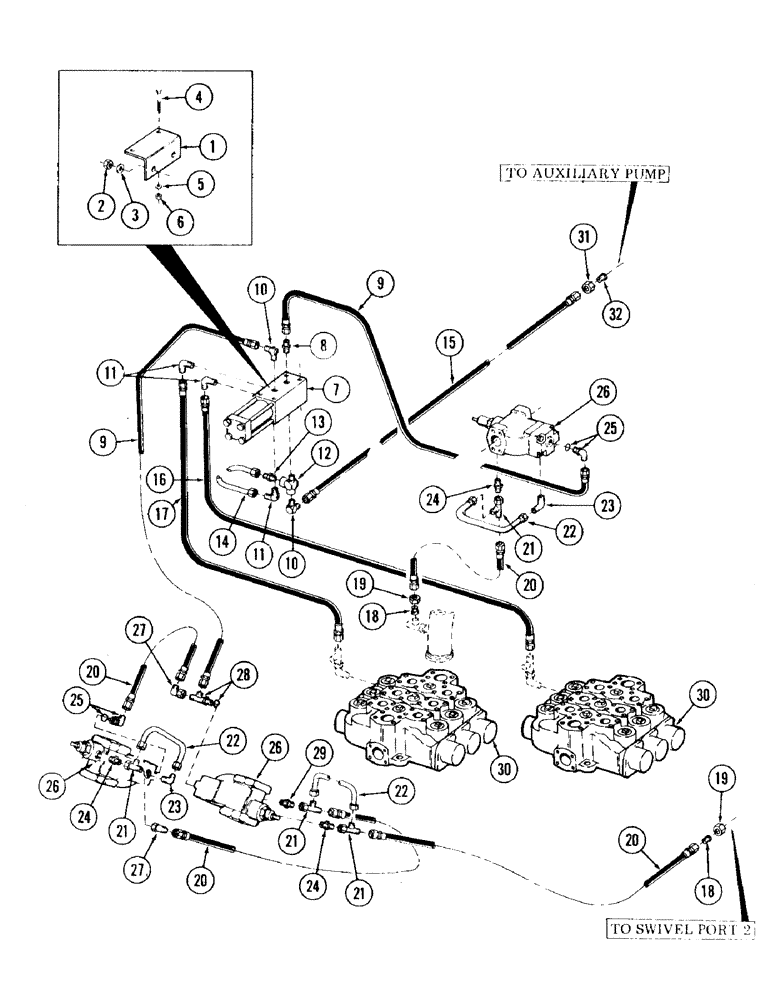

Запчасти Case 120 (147) - ANTI-DRIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S235035

BRACKET

solenoid mounting

1шт.

2

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

3

S95569

WASHER

flat - 1/2"

2шт.

4

S2417

BOLT

CPSW - 3/8" NC X 00" gr 5

4шт.

5

S7387

WASHER

flat - 3/8"

4шт.

6

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

7

REF

INSTRUCTION

VALVE, solenoid - (For breakdown, see Figure 265)

1шт.

8

S101309

ADAPTER

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/2" NPT - 37 degrees flared

1шт.

9

S227396

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 50" long - (With 9/16" - 18 female pressed on couplings)

2шт.

10

S63427

ELBOW

90 degrees - (3/8" tube) - 9/16" - 18 male x 1/2" NPT male - 37 degrees flared

2шт.

11

S7731

ELBOW

90 degrees - (1/2" tube) - 3/4" - 16 male x 1/2" NPT - 37 degrees flared

3шт.

12

S17938

TEE

- 1/2" NPT male x 1/2" NPT female x 1/2" NPT female

1шт.

13

S7719

ADAPTER

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

1шт.

14

S234036

LINE, hydraulic 0.5" OD x 3.92, 3.18" L

1шт.

15

S232015

HOSE, high pressure - 3/8" ID x 80" lone - (With 9/16" - 18 female pressed on couplings)

1шт.

16

S227392

HOSE, high pressure - 3/8" ID x 42" long - (With 9/16" - 18 female pressed on couplings)

1шт.

17

S227391

HOSE, high pressure - 3/8" ID x 36" long - (With 9/16" - 18 female pressed on couplings)

1шт.

18

S101838

REDUCER

ADAPTER, reducing - (3/4" x 3/8" tube reduction) - 9/16" - 18 male - 37 degrees flared

2шт.

19

S6277

NUT

sleeve - (3/4" tube) - 1-1/16" - 12 female - 37 degrees flared

2шт.

20

S227395

HOSE

high pressure - 3/8" ID x 21" long - (With 9/16" - 18 female pressed on couplings)

4шт.

21

S60465

TEE

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 female - 37 degrees flared

4шт.

22

S233871

LINE, hydraulic 0.375" OD x 6.31, 2.3" L

3шт.

23

S7734

ELBOW

- (3/8" tube) - 9/16" - 18 male x 1/4" NPT - 37 degrees flared

2шт.

24

S60836

ADAPTER

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/8" NPT male - 37 degrees flared

3шт.

25

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

2шт.

26

REF

INSTRUCTION

VALVE, anti-drift - (For breakdown, see Figure 267)

3шт.

27

S10356

ELBOW

90 degrees swivel - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female - 37 degrees flared

2шт.

28

S60869

FITTING

TEE - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

2шт.

29

S660835

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/4" NPT - 37 degrees flared

1шт.

30

REF

INSTRUCTION

VALVE, main control - (For breakdown, see Figure 271)

2шт.

31

S6275

NUT

sleeve - (1/2" tube) - 3/4" - 16 male x 37 degrees flared

1шт.

32

S101830

FITTING

ADAPTER, reducing - (1/2" to 3/8" tube) - 9/16" - 18 male - 37 degrees flared

1шт.
