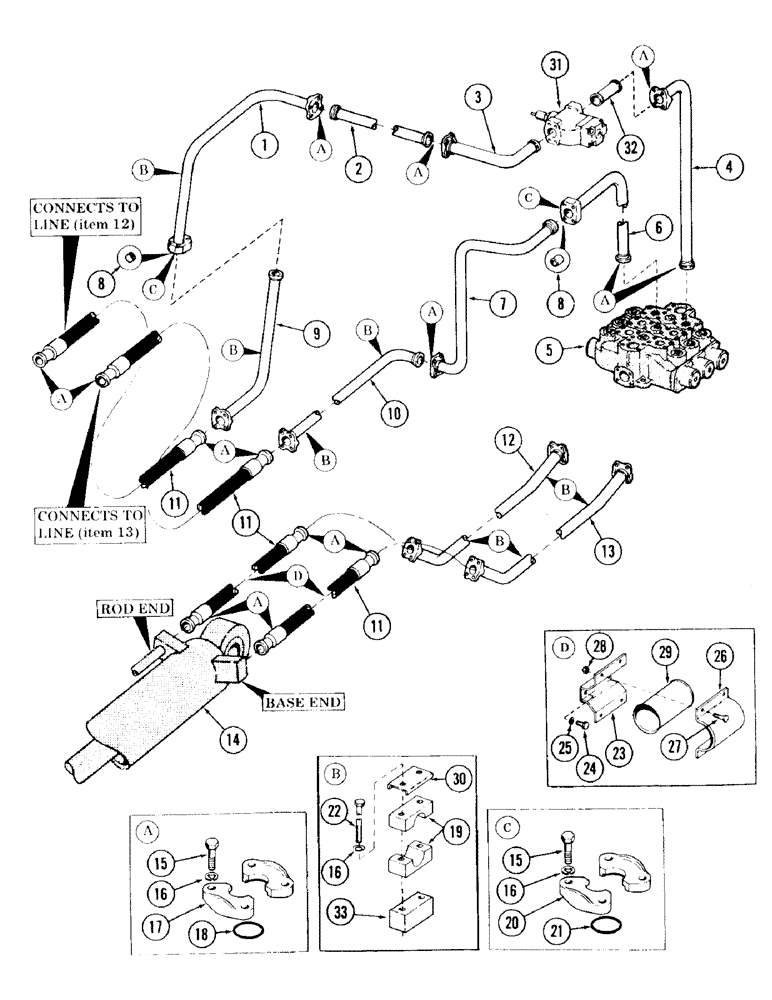

Запчасти Case 120 (145) - CROWD CYLINDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S507848

LINE, hydraulic 1.75" OD

1шт.

2

S223719

LINE

hydraulic

1шт.

3

S233842

LINE, hydraulic 1.75" OD x 8.06, 5.18" L

1шт.

4

S223698

LINE, hydraulic

1шт.

5

REF

INSTRUCTION

VALVE, main control - (Rear) - (For breakdown, see Figure 271)

1шт.

6

S230572

LINE, hydraulic 1.75" OD x 24.17, 16.52" L

1шт.

7

S230573

LINE, hydraulic 1.75" OD

1шт.

8

S223738

REGULATOR, flow

2шт.

9

S230404

LINE

hydraulic

1шт.

10

NLS

NO LONGER SERVICED

hydraulic

1шт.

11

S223134

HOSE, high pressure

4шт.

12

S508226

LINE, hydraulic 1.75" OD

1шт.

13

S508227

LINE, hydraulic 1.75" OD

1шт.

14

REF

INSTRUCTION

CYLINDER, crowd - (For breakdown, see Figure 211)

1шт.

15

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

16

S4399

WASHER

lock - 1/2"

1шт.

17

S10865

CLAMP

half flange

1шт.

18

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD - (Supersedes S96800)

1шт.

19

S230188

CLAMP

1шт.

20

S10866

CLAMP

half flange

1шт.

21

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD - (Supersedes S96801)

1шт.

22

S2474

BOLT (MACHINE)

CPSW - 1/2" NC x 3-1/4" gr 5

1шт.

23

S229388

BRACKET

clamp - (Used on units with serial number 65521 thru 6287215)

2шт.

S232262

BRACKET, clamp - (Used on units with serial number 6287216 and after)

2шт.

24

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" gr 5

4шт.

25

S4399

WASHER

lock - 1/2"

4шт.

26

S105933

CLAMP

2шт.

27

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

8шт.

28

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

8шт.

29

S229390

TUBE 3" OD x 5.62" L

2шт.

30

S106784

CHANNEL

1шт.

31

REF

INSTRUCTION

VALVE, anti-drift - (For breakdown, see Figure 267)

1шт.

32

S233841

LINE, hydraulic 1.75" OD x 5.06" L

1шт.

33

S96187

BLOCK

1шт.
