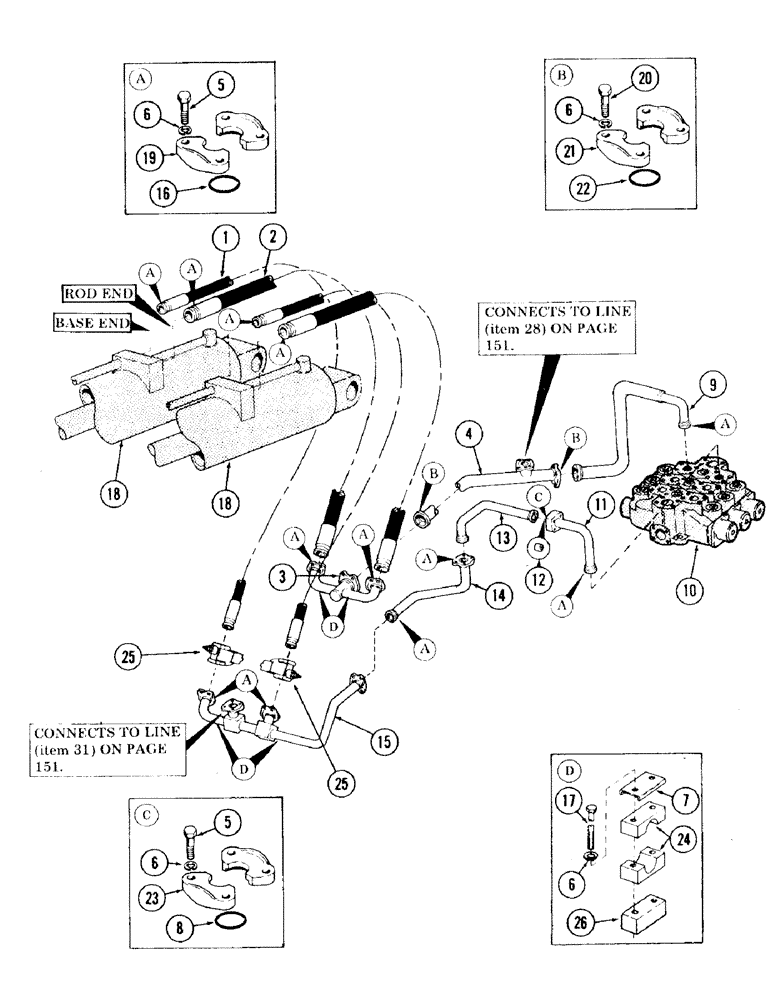

Запчасти Case 120 (143) - HOIST CYLINDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S223133

HOSE, high pressure

2шт.

2

S223134

HOSE, high pressure

2шт.

3

S228194

LINE, hydraulic 1.75 - 2.5" OD

1шт.

4

S228193

LINE, hydraulic 1.75 - 2.5" OD

1шт.

5

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

6

S4399

WASHER

lock 1/2"

1шт.

7

S106784

CHANNEL

1шт.

8

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD - (Supersedes S96801)

1шт.

9

S509564

LINE, hydraulic 1.75 - 2.5" OD

1шт.

10

REF

INSTRUCTION

VALVE, main control - (Front) - (For breakdown, see Figure 271)

1шт.

11

S224747

LINE, hydraulic 1.75" OD x 9, 8.4" L

1шт.

12

S226711

REGULATOR, flow

1шт.

13

S224748

LINE, hydraulic 1.75" OD x 16.75, 9.3" L

1шт.

14

S507855

LINE, hydraulic 1.75" OD

1шт.

15

S508284

LINE, hydraulic 1.75" OD

1шт.

16

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD - (Supersedes S96800)

1шт.

17

S2474

BOLT (MACHINE)

CPSW - 1/2" NC x 3-1/4" gr 5

1шт.

18

REF

INSTRUCTION

CYLINDER, hoist - (For breakdown, see Figure 209)

2шт.

19

S10865

CLAMP

half flange

1шт.

20

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr 5

1шт.

21

S10867

CLAMP

half flange

1шт.

22

S6322

RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

"O" RING - 2.734" ID x 3.000" OD

1шт.

23

S10866

CLAMP

half flange

1шт.

24

S230188

CLAMP

1шт.

25

REF

INSTRUCTION

VALVE, anit-draft - (For breakdown, see Figure 267)

2шт.

26

S96187

BLOCK

1шт.
