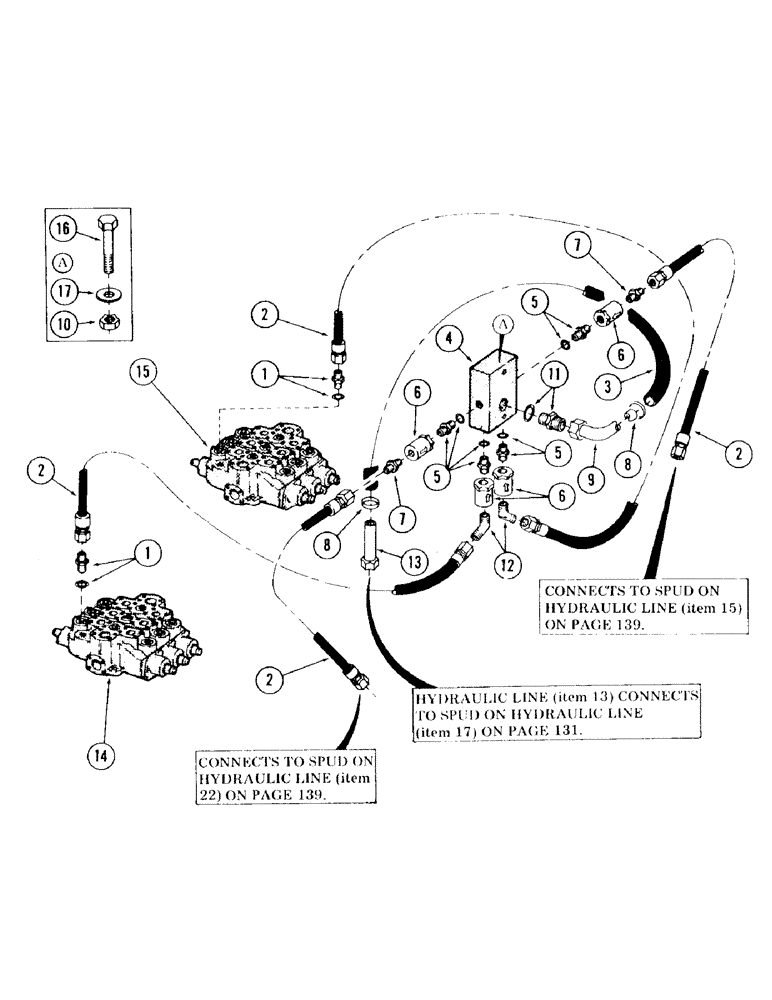

Запчасти Case 120 (141) - POWER SENSING VALVE HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S7957

FITTING

CONNECTOR - (1/4" tube) - 7/16" - 20 male x 7/16" - 20 male - 37 degrees flared

2шт.

S6057

O-RING

"O" RING - .351" ID x .495" OD

2шт.

2

S77467

HOSE

high pressure - 1/4" ID x 38" long - (With 7/16" - 20 female pressed on couplings)

4шт.

3

S202580

HOSE, low pressure (Bulk) - 1 piece - 3/4" ID x 18" long

1шт.

4

REF

INSTRUCTION

VALVE, power sensing - (For breakdown, see Figure 255)

1шт.

5

S11271

FITTING

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

4шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

4шт.

6

S98004

FILTER

4шт.

7

S101303

ADAPTER

- (1/4" tube) - 7/16" - 20 male x 1/4" NPT male - 37 degrees flared

2шт.

8

S10872

HOSE CLAMP

CLAMP, hose

2шт.

9

S226547

LINE, hydraulic 0.75" OD x 5, 3.75" L

1шт.

10

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

11

S88730

CONNECTOR, ELEC

CONNECTOR - (3/4" tube) - 3/4" - 16 male x 1-1/16" - 12 male

1шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

1шт.

12

S63422

ELBOW

90 degrees - (1/4" tube) - 7/16" - 20 male x 1/4" - 18 NPT male - 37 degrees flared

2шт.

13

S217492

LINE, hydraulic 0.75" OD x 3" L

1шт.

14

REF

INSTRUCTION

VALVE, main control - (Front) - (For breakdown, see Figure 271)

1шт.

15

REF

INSTRUCTION

VALVE, main control - (Rear) - (For breakdown, see Figure 271)

1шт.

16

S2356

BOLT

CPSW - 1/4" NC x 2-1/4" gr 5 - (Mounts power sensing valve)

2шт.

17

S7380

WASHER

flat - 1/4"

2шт.
