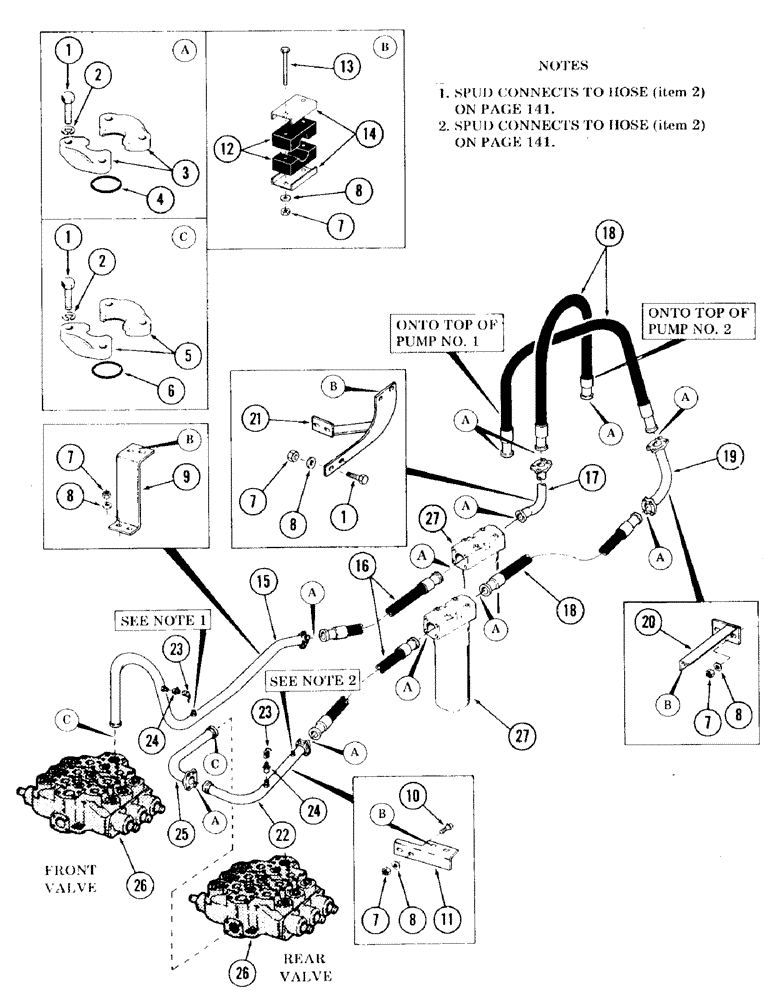

Запчасти Case 120 (139) - HIGH PRESSURE LINES FROM PUMPS TO VALVES (35) - HYDRAULIC SYSTEMS

1

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

2

S4399

WASHER

lock - 1/2"

1шт.

3

S10865

CLAMP

half flange

1шт.

4

S6589

O-RING

"O" RING - 1.859" ID x 2.125" OD

1шт.

5

S10866

CLAMP

half flange

1шт.

6

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

7

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

8

S95569

WASHER

flat - 1/2"

1шт.

9

S234127

BRACKET

1шт.

10

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

2шт.

11

S234154

BRACKET

1шт.

12

S230188

CLAMP, half

1шт.

13

S2476

BOLT

CPSW - 1/2" NC x 3-3/4" gr 5

1шт.

14

S106784

CHANNEL

1шт.

15

S512190

LINE, hydraulic 1.75" OD

1шт.

16

S226614

HOSE, high pressure

2шт.

17

S233577

LINE, hydraulic 1.75" OD

1шт.

18

S223645

HOSE, high pressure

3шт.

19

S234733

LINE, hydraulic 1.75" OD x 6.06, 8.56" L

1шт.

20

S234153

BRACKET

1шт.

21

S512395

BRACKET

1шт.

22

S233584

LINE, hydraulic 1.75" OD x 7.44, 15.06" L

1шт.

23

S206608

CAP

dust

2шт.

24

S206607

DISC

ONNECT, quick

2шт.

25

S224743

LINE , hydraulic 1.75" OD x 11.75, 5" L

1шт.

26

REF

INSTRUCTION

VALVE, 3-spool main control - (For breakdown, see Figure 271)

2шт.

27

REF

INSTRUCTION

FILTER, hydraulic oil - (For breakdown, see Figure 227)

2шт.
