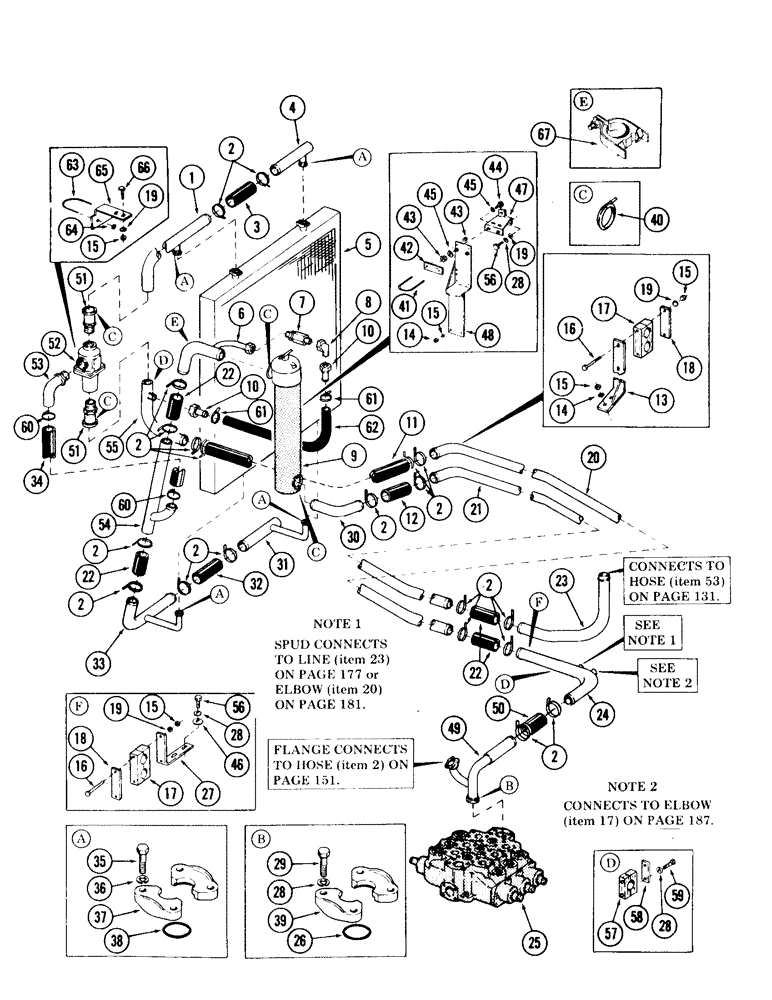

Запчасти Case 120 (135) - OIL COOLER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

S233595

LINE, hydraulic 2.5" OD x 30, 8.55" L

1шт.

2

S83024

CLAMP

hose

1шт.

3

S106684

HOSE, low pressure - (Bulk) - 1 piece - 2-1/2" ID x 9" long

1шт.

4

S225055

LINE, hydraulic 1.5 - 2.5" OD x 13.25, 3.38" L

1шт.

5

REF

INSTRUCTION

COOLER, oil - (For oil cooler and mounting hardware, see item 1 on Figure 41)

1шт.

6

S233596

LINE, hydraulic 1.25 - 2.5" OD

1шт.

7

S209396

VALVE

check

1шт.

8

S10362

ELBOW

90 degrees swivel - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 female - 37 degrees flared

1шт.

9

REF

INSTRUCTION

FILTER, hydraulic oil - (For breakdown, see Figure 223 or 225)

1шт.

10

S213566

LINE, hydraulic 1.25" OD x 4" L

2шт.

11

S106684

HOSE, low pressure - (Bulk) - 1 piece - 2-1/2" ID x 24" long

1шт.

12

S106684

HOSE, low pressure - (Bulk) - 1 piece - 2-1/2" id x 8" long

1шт.

13

S230271

BRACKET

clamp mounting

1шт.

14

S95569

WASHER

flat - 1/2"

1шт.

15

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

16

S2481

BOLT

CPSW - 1/2" NC x 5" gr 5

4шт.

17

S223949

CLAMP, wood

2шт.

18

S97048

BAR

2шт.

19

S86132

WASHER

flat -1/2"

1шт.

20

S233563

LINE, hydraulic 2.5" OD

1шт.

21

S233598

LINE

hydraulic

1шт.

22

S106684

HOSE, low pressure - (Bulk) - 4 pieces - 2-1/2" ID x 8" long

1шт.

23

S233284

LINE, hydraulic 2.5" OD

1шт.

24

S233282

LINE, hydraulic 2.5" OD x 10.4, 29.38" L

1шт.

25

REF

INSTRUCTION

VALVE, main control - (Rear) - (For breakdown, see Figure 271)

1шт.

26

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD - (Supersedes S96801)

1шт.

27

S233276

BRACKET

1шт.

28

S4399

WASHER

lock - 1/2"

1шт.

29

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

30

S233597

LINE

hydraulic

1шт.

31

S227027

LINE, hydraulic 2.5" OD

1шт.

32

S106684

HOSE, low pressure - (Bulk) - 1 piece - 2-1/2" ID x 9" long

1шт.

33

S227028

LINE, hydraulic 2.5" OD

1шт.

34

S71931

HOSE, low pressure - (Bulk) - 1 piece - 2" ID x 16" long

1шт.

35

S2431

BOLT

CPSW - 7/16" NC x 1-1/4" gr 5

1шт.

36

S4398

WASHER, LOCK

- 7/16"

1шт.

37

S10864

CLAMP

half flange

1шт.

38

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" OD - (Supersedes S96799)

1шт.

39

S10866

CLAMP

half flange

1шт.

40

S211792

CLAMP

compression

2шт.

41

S233601

STRAP

filter mounting

2шт.

42

S110302

BLOCK, wood

2шт.

43

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

44

S2404

BOLT (MACHINE)

CPSW - 3/8" NC x 1-3/4" gr 5

2шт.

45

S96099

WASHER

flat - 3/8"

2шт.

46

S7393

WASHER

flat - 1/2"

2шт.

47

S233876

BRACKET

1шт.

48

S511894

BRACKET

filter mounting

1шт.

49

S231348

LINE, hydraulic 1.75 - 2.5" OD

1шт.

50

S106684

HOSE, low pressure - (Bulk) - 1 piece - 2-1/2" ID x 20" long

1шт.

51

S226930

JOINT

2шт.

52

S99954

VALVE, by-pass

1шт.

53

S228892

LINE

hydraulic

1шт.

54

S22893

LINE, hydraulic

1шт.

55

S230574

LINE, hydraulic 2.5" OD x 12.56, 11.31" L

1шт.

56

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" gr 5

4шт.

57

S223149

CLAMP, wood

2шт.

58

S111814

BAR

2шт.

59

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

CPSW - 1/2" NC x 4-1/2" gr 5

2шт.

60

S85430

CLAMP

hose

2шт.

61

S88486

CLAMP

hose

2шт.

62

S202582

LINE

HOSE, low pressure - (Bulk) - 1-1/4" ID x 22" long

1шт.

63

S105456

MOUNTING CLIP

"U" BOLT

1шт.

64

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

65

S228899

BRACKET

1шт.

66

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr 5

2шт.

67

S93266

CLAMP

tube

1шт.
