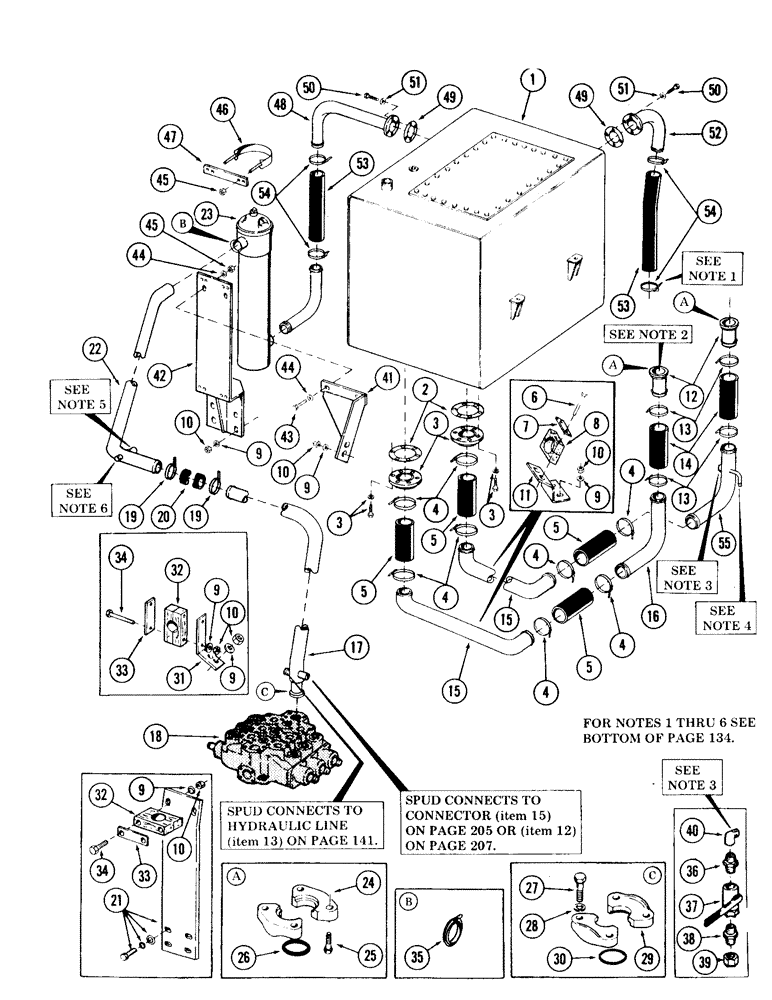

Запчасти Case 120 (131) - LOW PRESSURE LINES FROM RESERVOIR TO PUMPS AND RETURN FROM VALVE (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

RESERVOIR, hydraulic oil - (For breakdown, and attaching parts, see Figure 221)

2шт.

2

S223743

GASKET - (See also Figure 221)

2шт.

3

S233278

ADAPTER, filter mounting - (See also Figure 221)

2шт.

S2377

SCREW

CPSW - 5/16" NC x 1-1/4" gr 5

12шт.

S4396

WASHER, LOCK

- 5/16"

12шт.

4

S96810

HOSE CLAMP

CLAMP, hose

4шт.

5

S96817

HOSE, low pressure - (Bulk) - 2 pieces 3" ID x 9" long

1шт.

6

S2485

BOLT

CPSW - 1/2" NC x 6" gr 5

4шт.

7

S111814

BAR

2шт.

8

S233273

CLAMP, wood

2шт.

9

S95569

WASHER

flat - 1/2"

1шт.

10

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

11

S233274

BRACKET

2шт.

12

S223689

LINE, hydraulic 3" OD x 4.25" L

2шт.

13

S96810

HOSE CLAMP

CLAMP, hose

4шт.

14

S96817

HOSE, low pressure - (Bulk) - 2 pieces - 3" ID x 9" long

1шт.

15

S233281

LINE, hydraulic 3" OD x 21.8, 16.15" L

2шт.

16

S234336

LINE, hydraulic 3" OD x 9.12, 9.12" L

1шт.

17

S510494

LINE, hydraulic

1шт.

18

REF

INSTRUCTION

VALVE, main control - (Front) - (For breakdown, see Figure 271)

1шт.

19

S83024

CLAMP

hose

2шт.

20

S106684

HOSE, low pressure - (Bulk) - 1 piece - 2-1/2" ID x 10" long

1шт.

21

S230283

BRACKET

1шт.

S2469

BOLT

CPSW - 1/2" NC x 2" gr 5

4шт.

S4399

WASHER

lock - 1/2"

4шт.

S86132

WASHER

flat - 1/2"

4шт.

22

S233599

LINE, hydraulic 2.5" OD

1шт.

23

REF

INSTRUCTION

FILTER, hydraulic oil - (For breakdown, see Figure 223 or 225)

1шт.

24

S10868

CLAMP

half flange

4шт.

25

S2503

BOLT (MACHINE)

CPSW - 5/8" NC x 1-3/4" gr 5

8шт.

26

S6327

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

"O" RING - 3.359" ID x 3.625" OD

2шт.

27

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

4шт.

28

S4399

WASHER

lock - 1/2"

4шт.

29

S10866

CLAMP

half flange

2шт.

30

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD - (Supersedes S96801)

1шт.

31

S233277

BRACKET

1шт.

32

S223149

CLAMP, wood

2шт.

33

S111814

BAR

2шт.

34

S2480

CPSW - 1/2" NC x 4-3/4" gr 5

4шт.

35

S211792

CLAMP

compression

1шт.

36

S62658

NIPPLE, LUBE

ADAPTER, pipe - 3/4" NPT male x 3/4" NPT male

1шт.

37

REF

INSTRUCTION

VALVE, shut-off - (For breakdown, see Figure 263)

1шт.

38

S60838

ADAPTER

- (1" tube) - 1-5/16" - 12 male x 3/4" NPT male - 37 degrees flared

1шт.

39

S9419

CAP ASSY.

CAP - (1" tube) - 1-5/16" - 12 male x 3/4" NPT male - 37 degrees flared

1шт.

40

S17527

ELBOW

90 degrees street - 3/4" NPT male x 3/4" NPT female

1шт.

41

S511789

BRACKET

1шт.

42

S511788

BRACKET, filter mounting

1шт.

43

S2403

BOLT

CPSW - 3/8" NC x 1-1/2" gr 5

2шт.

44

S7385

INSTRUCTION

WASHER, flat - 3/8"

4шт.

45

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

6шт.

46

S233601

STRAP

filter mounting

2шт.

47

S110302

BLOCK, filter mounting

2шт.

48

S233288

LINE, hydraulic 2.5" OD x 13.45, 7.5" L

1шт.

49

S233275

GASKET

2шт.

50

S2376

CPSW - 5/16" NC x 1" gr 5

8шт.

51

S4396

WASHER, LOCK

WASHER, flat - 5/16" NC

8шт.

52

S233285

LINE, hydraulic 2.5" OD x 8.55, 5.71" L

1шт.

53

S106684

HOSE, low pressure - (Bulk) - 2 pieces - 2-1/2" ID x 20" long

1шт.

54

S83084

CLAMP

hose

4шт.

55

S234337

LINE, hydraulic 0.62 - 3" OD

1шт.
