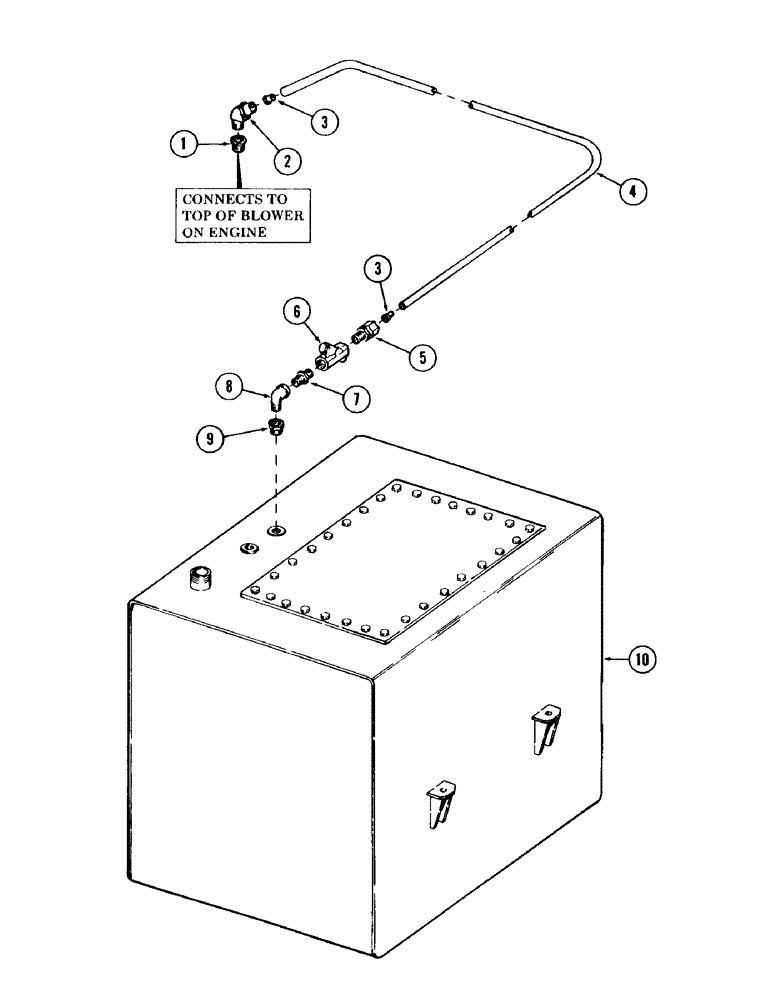

Запчасти Case 120 (129) - HYDRAULIC OIL RESERVOIR SUPERCHARGE CIRCUIT (35) - HYDRAULIC SYSTEMS

1

S7772

BUSHING

reducing - 1/2" NPT male x 3/8" NPT female

1шт.

2

S87682

ELBOW, 45 degrees - 1/2" tube x 3/8" NPT male

1шт.

3

S85479

SLEEVE

- (For 1/2" tube)

2шт.

4

S85505

BLOCK

TUBE, nylon - (Bulk) - 1 piece - 1/2" OD x 100" long

1шт.

5

S96894

FITTING

CONNECTOR - 1/2" tube x 3/8" NPT male

1шт.

6

S235152

VALVE, check

1шт.

7

S62656

FITTING

ADAPTER - 3/8" NPT x 3/8" NPT male

1шт.

8

S17525

ELBOW

90 degrees - 3/8" NPT female x 3/8" NPT male

1шт.

9

S17554

REDUCER

BUSHING, reducing - 3/4" NPT male x 3/8" NPT female

1шт.

10

REF

INSTRUCTION

TANK, hydraulic - (For tank and attaching parts, see page 221)

1шт.
