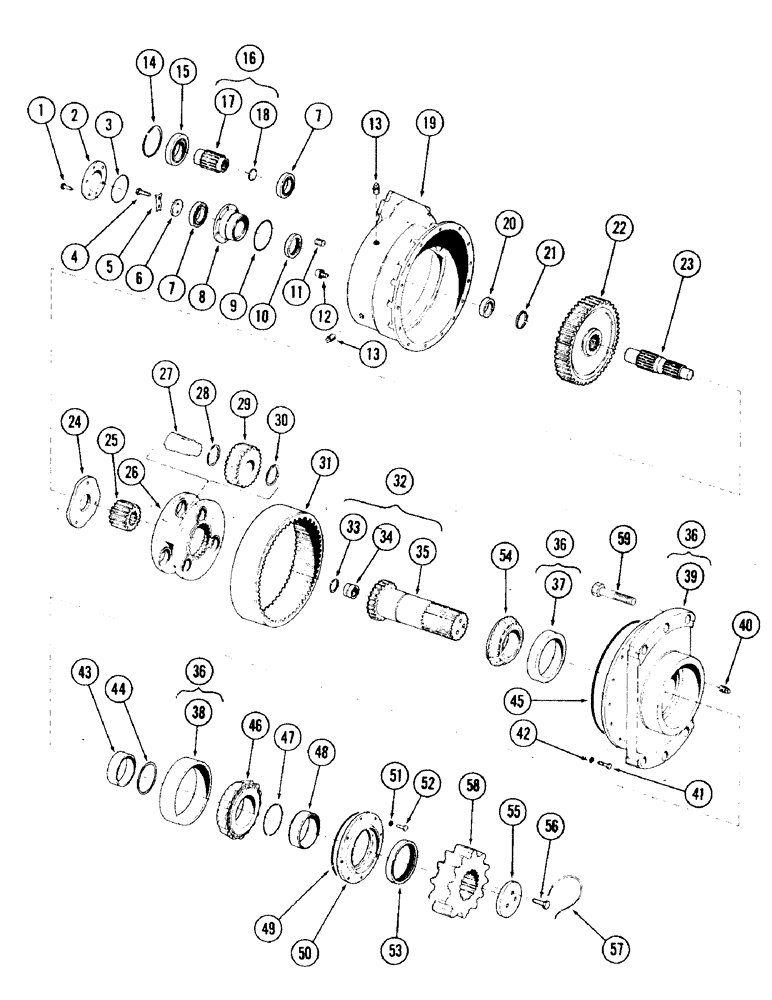

Запчасти Case 120 (115) - SWING REDUCER (35) - HYDRAULIC SYSTEMS

S606354

SWING REDUCER AND BRAKE ASSEMBLY - (Consists of swing reducer assembly S507499 and brake assembly S606258 on Figure 119)

2шт.

S507499

REDUCER, swing

2шт.

1

S98283

CPSW, reduction shaft cover

6шт.

2

S98306

COVER, reduction shaft

1шт.

3

A15026

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

"O" RING, reduction shaft bearing cage - 3.734" ID x 4.000" OD)

1шт.

4

S98277

CPSW, first reduction shaft lock - 7/16" NC x 1" gr 8

2шт.

5

D52314

PLATE

LOCK, first reduction shaft

1шт.

6

D46738

WASHER, reduction shaft bearing retainer

1шт.

7

S98288

BEARING, rear input and reduction shaft

2шт.

8

S98305

CAGE, reduction shaft bearing

1шт.

9

S98281

"O" RING, reduction case to cage

1шт.

10

F9744

OIL SEAL

SEAL, intermediate driven gear

1шт.

11

S7874

PLUG

oil filler

1шт.

12

T25062

BREATHER

1шт.

13

S98276

PLUG, oil level

2шт.

14

S98297

RING, snap - input pinion front bearing retainer

1шт.

15

S98289

BEARING, input bearing front

1шт.

16

S98273

INPUT PINION ASSEMBLY

1шт.

17

NSS

NOT SOLD SEPARAT

PINION, input

1шт.

18

S98274

X

PLUG, expansion

1шт.

19

S98308

CASE, reduction

1шт.

20

S98296

SPACER, reduction shaft bearing

1шт.

21

F9756

RING, snap - intermediate driven gear

1шт.

22

S98314

GEAR, intermediate driven

1шт.

23

S98311

SHAFT, first reduction

1шт.

24

S98304

PLATE, planetary spider thrust

1шт.

25

S98312

GEAR

planetary sun

1шт.

26

S98315

SPIDER ASSY.

SPIDER, planetary

1шт.

27

S98310

SHAFT, planetary pinion

3шт.

28

S98293

WASHER

planetary pinion inner thrust

3шт.

29

S98313

PINION

planetary

3шт.

30

S98294

WASHER

planetary pinion outer thrust

3шт.

31

S62008

GEAR, planetary ring - (63 tooth)

1шт.

32

S98270

OUTPUT SHAFT ASSEMBLY

1шт.

33

S98271

RING, snap

1шт.

34

S98272

BEARING

1шт.

35

NSS

NOT SOLD SEPARAT

SHAFT, output

1шт.

36

S231212

REDUCER CASE COVER AND BEARING CUP ASSEMBLY

1шт.

37

S98285

CUP, output shaft inner bearing

1шт.

38

S98287

CUP, output shaft outer bearing

1шт.

39

NSS

NOT SOLD SEPARAT

COVER, reduction case

1шт.

40

S16275

PLUG, drain

1шт.

41

S83408

BOLT

CPSW, reduction case to cover - 1/2" NC x 1-1/2" gr 8

15шт.

42

S4399

WASHER

lock - reduction case to cover - 1/2"

15шт.

43

S98298

SPACER

output shaft bearing

1шт.

44

S98291

SHIM, output shaft washer - (.062")

7шт.

S98292

SHIM, output shaft washer - (.005")

11шт.

45

S98282

"O" RING, reduction case to cover

1шт.

46

S98286

CONE, output shaft outer bearing

1шт.

47

S98280

"O" RING, output shaft bearing

1шт.

48

S98299

SLEEVE, output shaft oil seal

1шт.

49

S98279

"O" RING, output shaft cover

1шт.

50

S98307

COVER, output shaft

1шт.

51

S4397

WASHER

lock - output shaft cover - 3/8"

8шт.

52

S76429

CAPSCREW

CPSW, output shaft cover

8шт.

53

S98290

SEAL, output shaft oil

1шт.

54

S98284

CONE, output shaft inner bearing

1шт.

55

S98295

WASHER

outboard gear

1шт.

56

S98278

CPSW, output shaft

3шт.

57

S98275

LOCKWIRE, output shaft CPSW

1шт.

58

S605203

GEAR, output

1шт.

59

S2623

CPSW, swing dirve gearbox mounting - 1/2" NC x 2-3/4" gr 5

6шт.

60

S225167

KIT, shim

1шт.
