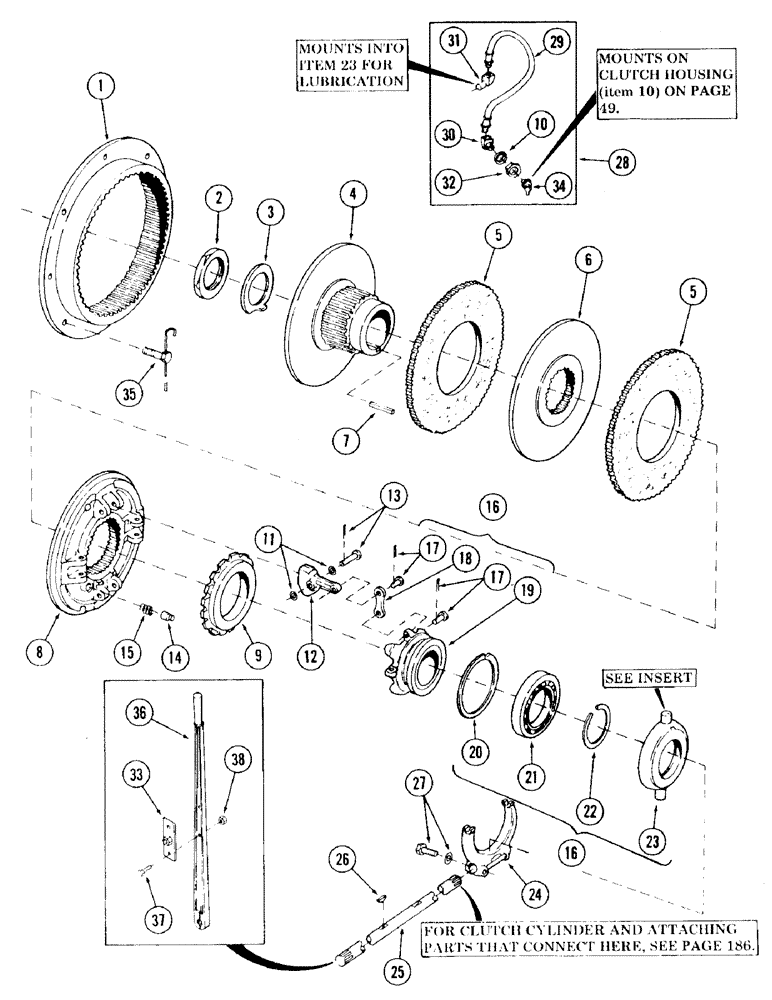

Запчасти Case 120 (051) - PUMP DRIVE TRANSMISSION CLUTCH (35) - HYDRAULIC SYSTEMS

S612143

CLUTCH, pump drive transmission

1шт.

1

S97825

RING, driving

1шт.

2

S97827

NUT, hub

1шт.

3

S97828

WASHER, hub nut

1шт.

4

S97805

PLATE, clutch

1шт.

5

S97807

PLATE

driving

2шт.

6

S97809

PLATE, center

1шт.

7

S97806

KEY

1шт.

8

S97808

PLATE, floating

1шт.

9

S111685

RING, adjusting

1шт.

10

S97832

WASHER, lock - 5/8"

1шт.

11

S97824

WASHER

8шт.

12

S97818

LEVER

4шт.

13

S97819

PIN, lever

4шт.

S97821

PIN, cotter

4шт.

14

S111593

PIN, adjustable lock

1шт.

15

S111594

SPRING

1шт.

16

S234487

SLIDING SLEEVE ASSEMBLY

1шт.

17

S97813

PIN, lever link

8шт.

A43383

SPLIT PIN

PIN, cotter

8шт.

18

S97812

LINK, lever

8шт.

19

S111588

SLEEVE, sliding

1шт.

20

S97817

RING, snap

1шт.

21

S97815

BEARING, ball

1шт.

22

S97816

RING, snap

1шт.

23

S97814

COLLAR, sleeve

1шт.

24

S97829

YOKE, throwout

1шт.

25

S97826

SHAFT, operating

1шт.

26

S11184

WOODRUFF KEY

KEY, Woodruff

2шт.

27

S2403

BOLT

CPSW - 3/8" NC x 1-1/2" gr 5

2шт.

S7344

WASHER, LOCK

- 3/8" - (Internal tooth)

2шт.

28

A40255

HOSE, flexible

1шт.

29

A40306

HOSE

1шт.

30

S97818

FITTING

1шт.

31

A40195

FITTING

1шт.

32

S97831

NUT, jam - 5/8" NF

1шт.

33

S231467

ADAPTER, clutch disconnect lever

1шт.

34

S12033

FITTING

grease - 1/8" NPT x 65 degrees

1шт.

35

S66366

SPECIAL BOLT

CPSW - 1/2" NC x 1-1/4" gr 5 - (Mounts driving ring to engine flywheel)

8шт.

S66431

LOCKWIRE (Bulk) - 1 piece x 100" long

1шт.

36

S231469

LEVER

clutch disconnect

1шт.

37

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

2шт.

38

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

39

S111860

KIT, pressure plate - (Includes items 8, 14 and 15)

1шт.
