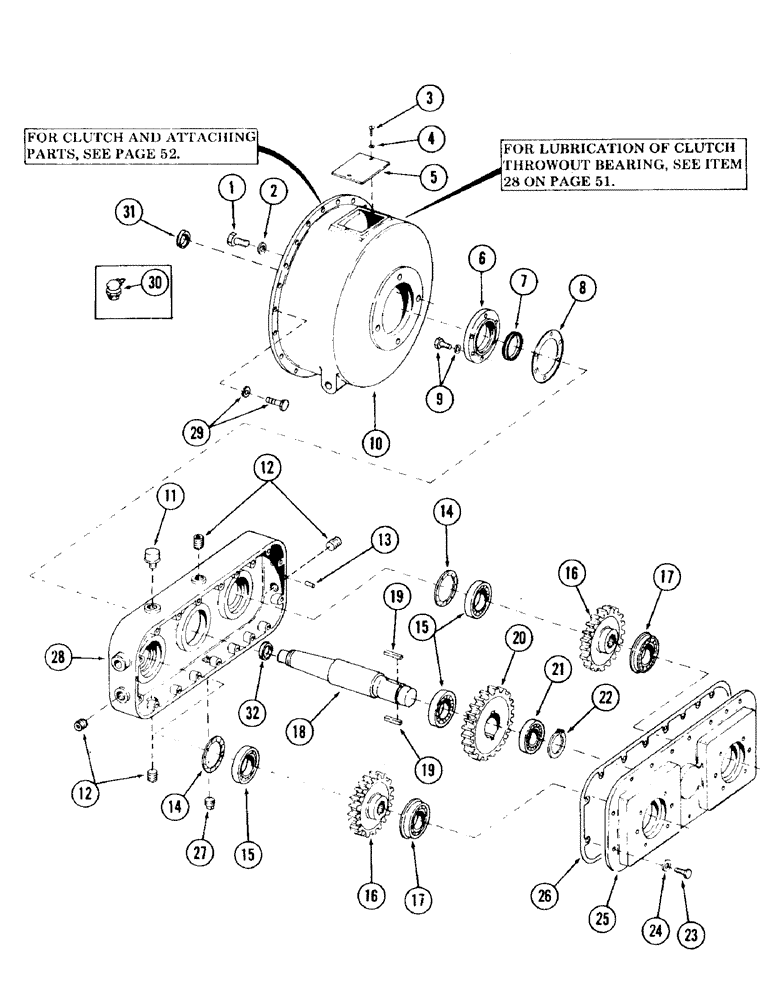

Запчасти Case 120 (049) - PUMP DRIVE TRANSMISSION (35) - HYDRAULIC SYSTEMS

S605187

TRANSMISSION, pump drive

1шт.

1

S2542

BOLT

CPSW - 3/4" NC x 1-1/2" gr 5 - (Mounts clutch housing to transmission housing)

4шт.

2

S97868

WASHER, lock - 3/4"

4шт.

3

S97874

SCREW, machine - 1/4" NF x 1/2"

2шт.

4

S4395

WASHER, LOCK

- 1/4"

2шт.

5

S97851

COVER

1шт.

6

S97860

HOUSING, oil seal

1шт.

7

S97876

SEAL, oil

1шт.

8

S97859

GASKET

1шт.

9

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

6шт.

S4397

WASHER

lock - 3/8"

6шт.

10

S97862

CLUTCH HOUSING

HOUSING, clutch

1шт.

11

S97878

BREATHER

1шт.

12

S7880

PLUG

pipe - 3/4" NPT - (Hex socket head)

4шт.

13

S97872

DOWEL

2шт.

14

S97877

WASHER, wavy

2шт.

15

S97871

BEARING

3шт.

16

S97866

GEAR, pump drive (48 tooth)

2шт.

17

S97870

BEARING

2шт.

18

S97861

SHAFT, input

1шт.

19

S97850

KEY

2шт.

20

S97867

GEAR, input drive - (48 tooth)

1шт.

21

S97869

BEARING

1шт.

22

S97875

RING, snap

1шт.

23

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

18шт.

24

S4399

WASHER

lock - 1/2"

18шт.

25

S97864

COVER

transmission housing

1шт.

26

S97863

GASKET

1шт.

27

S103194

PLUG, pipe - 3/4" NPT male - (Magnetic)

1шт.

28

S97865

HOUSING

transmission

1шт.

29

S2431

BOLT

CPSW - 7/16" NC x 1-1/4" gr 5 - (Mounts pump drive transmission to engine flywheel housing)

12шт.

S4398

WASHER, LOCK

- 7/16"

12шт.

30

S12033

FITTING

grease - 1/8" NPT x 65 degrees

1шт.

31

S109989

BEARING, engine pilot - (Into engine flywheel)

1шт.

32

S111810

SPACER, pilot bearing

1шт.
