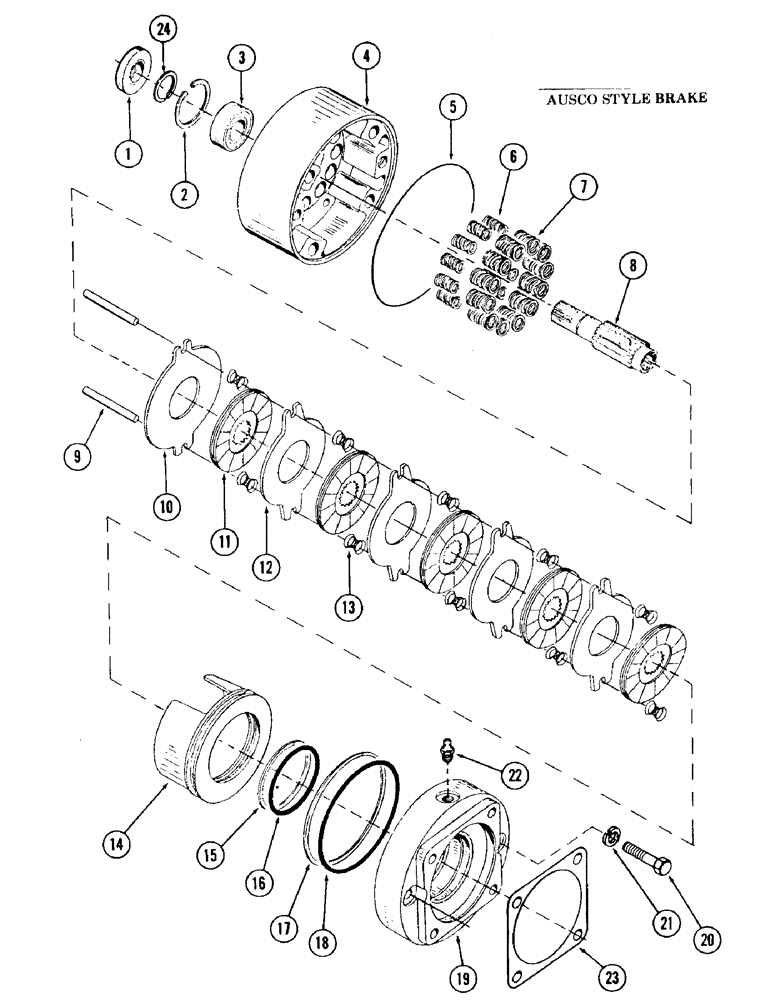

Запчасти Case 120 (127) - TRACK DRIVE BRAKE, USED ON UNITS WITH SERIAL NUMBER 6287229 AND AFTER (33) - BRAKES & CONTROLS

S511392

BRAKE, track drive

2шт.

1

S109451

OIL SEAL

1шт.

2

D66413

SNAP RING,2.688", Int, #268

Ring, Snap, 2.688", Int, #268

1шт.

3

S107752

BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"

BEARING, ball

1шт.

4

S109453

HOUSING

1шт.

5

S107759

PACKING

preformed

1шт.

6

S107754

SPRING

compression

12шт.

7

S107755

SPRING

compression

12шт.

8

S109452

SHAFT, splined

1шт.

9

S109454

PIN, torque

2шт.

10

S107756

DISC

primary

1шт.

11

S109455

DISC

rotating

5шт.

12

S109456

DISC

stationary

4шт.

13

S107758

SPRING

compression

10шт.

14

S109459

PISTON

1шт.

15

S107767

BACK-UP RING

backup

1шт.

16

S107766

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

PACKING, preformed

1шт.

17

S107765

BACK-UP RING

backup

1шт.

18

S107763

O-RING

PACKING, preformed

1шт.

19

S109457

PLATE, power

1шт.

20

S2471

BOLT

CPSW - 1/2" NC x 2-1/4" gr 5

2шт.

21

S4399

WASHER

lock - 1/2"

2шт.

22

S109458

SCREW

bleeder

1шт.

23

S107753

GASKET

1шт.

24

S109765

RING

retaining

1шт.
