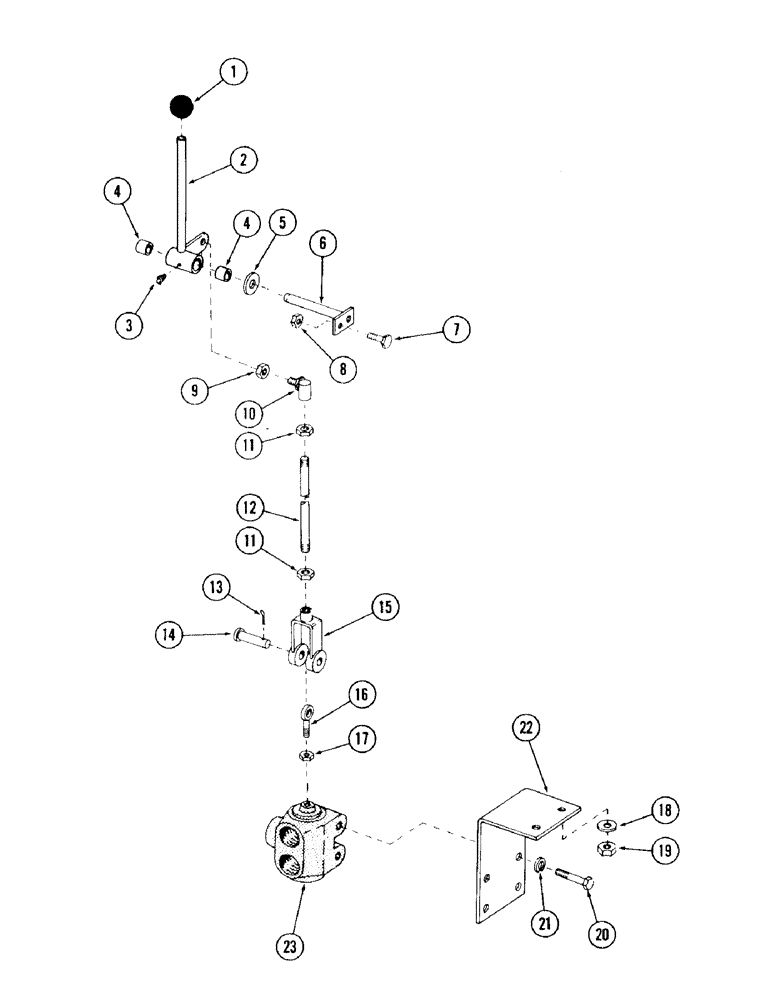

Запчасти Case 120 (123) - TRACK BRAKE CONTROL AND ATTACHING PARTS (33) - BRAKES & CONTROLS

1

S99443

KNOB

1шт.

2

S224700

HANDLE

track brake control - (Includes 1 of item 4)

1шт.

3

S49270

FITTING

grease - 1/8" NPT x 90 degrees

1шт.

4

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

2шт.

5

S7407

WASHER

flat - 13/16" - (Used as spacer)

1шт.

6

S223905

SHAFT

1шт.

7

S2360

SCREW

CPSW - 1/4" NC x 7/8" gr 5

1шт.

8

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

9

S17103

NUT

self locking - 3/8" NF

1шт.

10

S215594

BALL

JOINT

1шт.

11

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

2шт.

12

S97790

ROD

1шт.

13

S4626

PIN, cotter - 1/8" x 3/4" long

1шт.

14

S10738

PIN

clevis - 5/16" x .890" grip length

1шт.

15

S85426

YOKE

1шт.

16

S90657

BOLT, eye

1шт.

17

87016560

JAM NUT,Jam, 3/8"-16, G5

jam - 3/8" NC

1шт.

18

S95569

WASHER

flat - 1/2"

1шт.

19

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

20

S2378

BOLT

CPSW - 5/16" NC x 1-1/2" gr 5

2шт.

21

S4396

WASHER, LOCK

- 5/16"

2шт.

22

S224812

BRACKET

control valves mounting

1шт.

23

REF

INSTRUCTION

VALVE, track brake control - (For breakdown, see Figure 259)

1шт.
