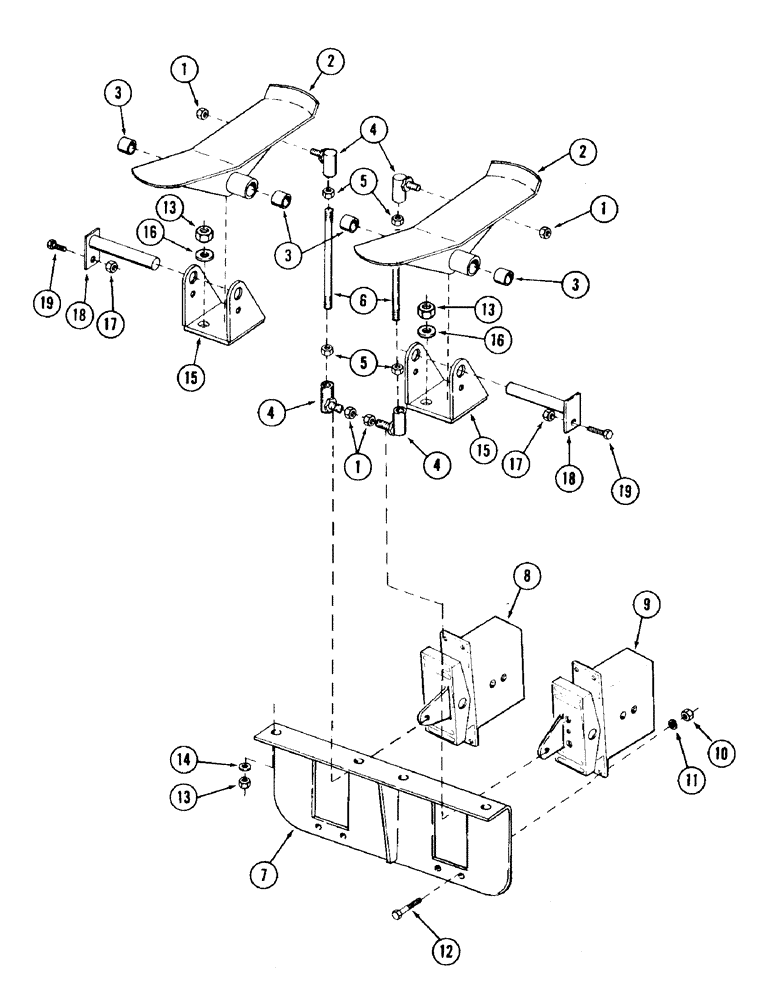

Запчасти Case 120 (113) - SWING AND TOOL PEDAL CONTROL AND ATTACHING PARTS, USED ON UNITS WITH SERIAL NO. 6287229 AND AFTER (33) - BRAKES & CONTROLS

1

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

2шт.

2

S507888

PEDAL, swing and tool

2шт.

S46960

FITTING

grease - 1/4" NPT - (Straight)

2шт.

3

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

4шт.

4

S215594

BALL

JOINT

4шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

4шт.

6

S91683

ROD

STUD

2шт.

7

S511715

BRACKET

valves mounting - (Mounts to underside of turntable)

1шт.

8

REF

INSTRUCTION

VALVE, modulator control - (Use for Tool Function) - (For breakdown, see Figure 253)

1шт.

9

REF

INSTRUCTION

VALVE, modulator control - (Use for Swing Function) - (For breakdown see Figure 253)

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC

8шт.

11

S4396

WASHER, LOCK

- 5/16"

8шт.

12

S2378

BOLT

CPSW - 5/16" NC x 1-1/2" gr 5

8шт.

13

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

14

S7395

WASHER

flat - 1/2"

4шт.

15

S224702

BRACKET

pedal mounting - (Mounts to cab floor)

2шт.

16

S86132

WASHER

flat - 1/2"

4шт.

17

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

18

S217833

SHAFT ASSY.

SHAFT

2шт.

19

S2352

BOLT

CPSW - 1/4" NC x 1-1/4" gr 5

2шт.
