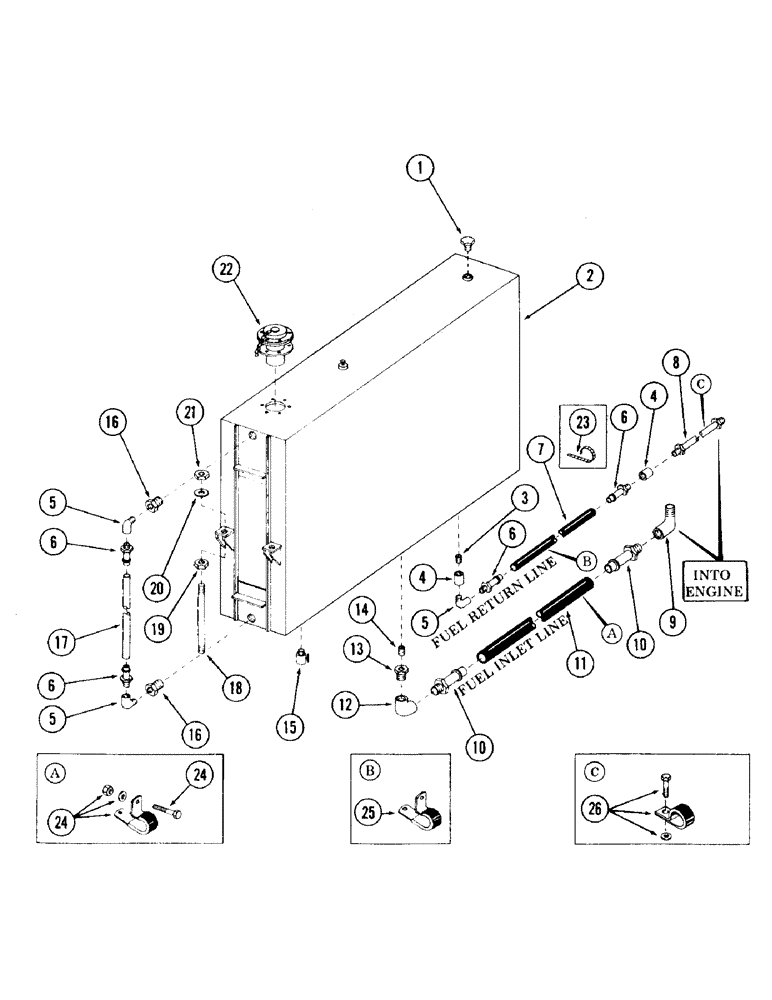

Запчасти Case 120 (047) - FUEL TANK AND LINES (10) - ENGINE

1

S15162

PLUG

- 1/4" - 18 NPTF male

1шт.

2

S606220

TANK, fuel - (182 gallon capacity)

1шт.

3

S7841

NIPPLE, LUBE

NIPPLE - 1/4" x 7/8"

1шт.

4

S17706

COUPLING

- 1/4" - 18 NPT female x 1/4" - 18 NPT female

2шт.

5

S17524

ELBOW

90 degrees - 1/4" - 18 NPT male x 1/4" - 18 NPT female

3шт.

6

S63652

END ASSY.

INSERT, hose

4шт.

7

S63654

HOSE

low pressure (Bulk) - 3/8" ID x 120" long

1шт.

8

S226486

TUBE ASSY.,0.312" OD x 10.5" L

LINE, hydraulic

1шт.

9

S17526

ELBOW

90 degrees - 1/2" 14 NPT male x 1/2" - 14 NPT female

1шт.

10

S97706

INSERT

hose

2шт.

11

S87305

HOSE, low pressure (Bulk) - 5/8" ID x 106" long

1шт.

12

S60914

ELBOW

90 degrees - 1/2" - 14 NPT female x 1/2" - 14 NPT female

1шт.

13

S7772

BUSHING

reducing - 1/2" - 14 NPT male x 3/8" - 18 NPT female

1шт.

14

S7840

NIPPLE - 3/8" x 1"

1шт.

15

S218848

VALVE

drain

1шт.

16

S17551

BUSHING

reducing - 3/8" - 18 NPT male x 1/4" - 18 NPT female

2шт.

17

S104008

TUBE, plastic - 40" long 0.312" ID x 0.437" OD

1шт.

18

S96189

STUD

4шт.

19

280431

NUT,1/2"-13, G5

4шт.

20

S86132

WASHER

flat - 1/2"

4шт.

21

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

22

S225753

CAP, filler

1шт.

23

S73386

FASTENER

TIE, cable

4шт.

24

S88820

CLAMP

3шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

1шт.

S94625

WASHER

flat - 3/8"

2шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.

25

S78162

CLAMP

3шт.

26

S84479

CLAMP

1шт.

S2488

BOLT

CPSW - 1/2" NC x 5/8" gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.
