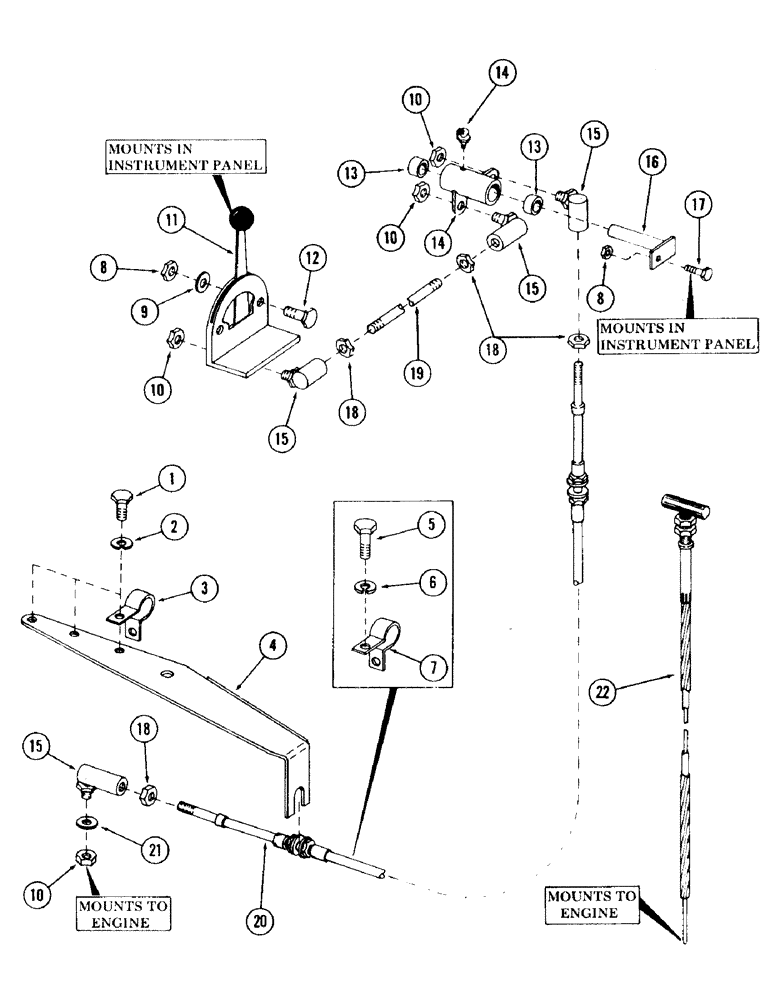

Запчасти Case 120 (045) - THROTTLE CONTROL CABLE AND ATTACHING PARTS (10) - ENGINE

1

S2352

BOLT

CPSW - 1/4" NC x 1-1/4" gr 5

3шт.

2

S4395

WASHER, LOCK

- 1/4"

3шт.

3

S77479

CLAMP,1/8", Insul, 1/4" Bolt

- (For shut-off control spring)

1шт.

4

S224610

BRACKET

throttle control cable mounting

1шт.

5

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

3шт.

6

S4399

WASHER

lock - 1/2"

3шт.

7

S77322

CLAMP

- (Secures throttle control cable to bottom of turntable)

3шт.

8

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

9

S7380

WASHER

flat - 1/4"

2шт.

10

S17101

NUT

self locking - 1/4" NF

4шт.

11

S96882

HANDLE, throttle control

1шт.

12

S2351

BOLT

CPSW - 1/4" NC x 1" gr 5

2шт.

13

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

2шт.

14

S223904

ARM ASSY.

BELLCRANK

1шт.

S49270

FITTING

grease - 1/8" NPT x 90 degrees

1шт.

15

S76046

GASKET

BALLJOINT

4шт.

16

S223095

SHAFT

1шт.

17

S2360

SCREW

CPSW - 1/4" NC x 7/8" gr 5

1шт.

18

425-154

JAM NUT,Jam, 1/4"-28, G5

jam - 1/4" NF

4шт.

19

S71319

ROD, connecting

1шт.

20

S223189

CABLE, throttle control

1шт.

21

S7377

WASHER

flat - 1/4"

1шт.

22

S231153

CABLE, emergency shut-off control

1шт.
