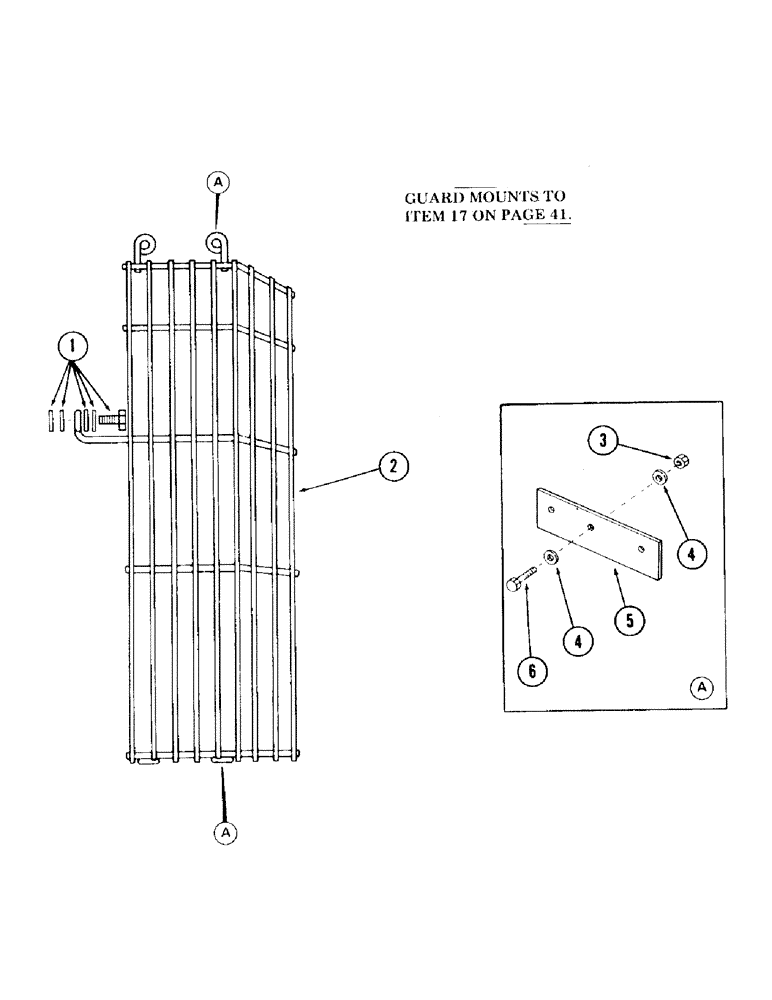

Запчасти Case 120 (043) - FAN GUARD AND ATTACHING PARTS (10) - ENGINE

1

S2425

CPSW - 3/8" NC x 1-3/8" gr 5 - (Mounts guard to fan shroud)

1шт.

S7385

INSTRUCTION

WASHER, flat - 3/8" - (Use as spacers if required)

1шт.

S4397

WASHER

lock - 3/8"

1шт.

2

S510693

GUARD, fan

1шт.

3

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.

4

S7385

INSTRUCTION

WASHER, flat - 3/8"

1шт.

5

S231298

BRACKET - (Mounts to fan guard, fan shroud)

2шт.

6

S2425

CPSW - 3/8" NC x 1-3/8" gr 5 - (Mounts bracket to fan guard)

6шт.
