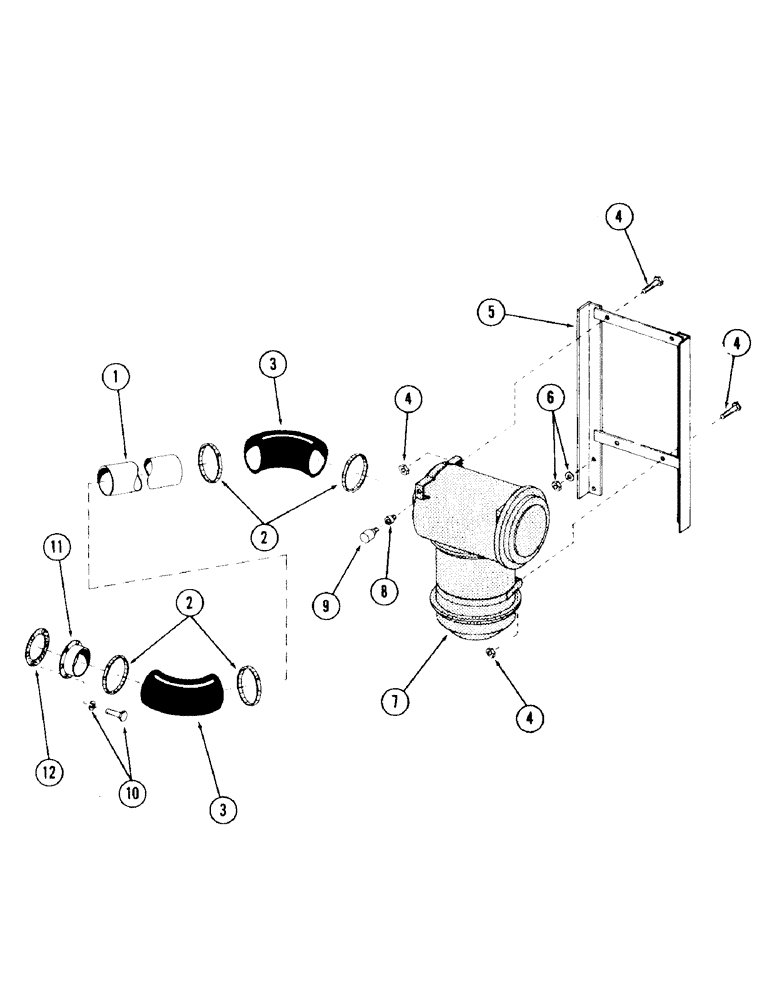

Запчасти Case 120 (037) - AIR CLEANER AND ATTACHING PARTS (10) - ENGINE

1

S97879

TUBE

1шт.

2

S96593

CLAMP, hose

4шт.

3

S97880

ADAPTER, 90 degrees rubber

2шт.

4

S2431

BOLT

CPSW - 7/16" NC x 1-1/4" gr 5

4шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

4шт.

5

S508684

BRACKET

air cleaner mounting

1шт.

6

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

S86132

WASHER

hardened - 1/2"

4шт.

7

REF

INSTRUCTION

CLEANER, air - (For breakdown, see Figure 39)

1шт.

8

D36264

FITTING

CONNECTOR, special filter type

1шт.

9

A59569

INDICATOR

air cleaner filter

1шт.

10

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

6шт.

S4397

WASHER

lock - 3/8"

6шт.

11

S223105

FLANGE

ASSEMBLY - air inlet

1шт.

12

S97726

GASKET

1шт.

13

S222402

CLAMP

- (Air cleaner to bracket) - (Not illustrated)

1шт.
